Remote Compatibility for Trolling Motors

Updated

This guide outlines Compatible Remotes for trolling motors equipped with Advanced GPS Navigation, i-Pilot, i-Pilot Link, and Co-Pilot technologies.

Jump To:

Remote Type:

Jump to Category:

Trolling Motor Remotes

 Advanced GPS Navigation Wireless Remote | Micro Remote Bluetooth | I-Pilot Link BT Remote | I-Pilot BT Remote | i-Pilot Link Non-Bluetooth Remote | i-Pilot Non-Bluetooth | Micro Remote | i-Pilot 1.0 Non-Bluetooth Remote | PowerDrive Co-Pilot Remote | Terrova Co-Pilot Remote

Shallow Water Anchor Remotes

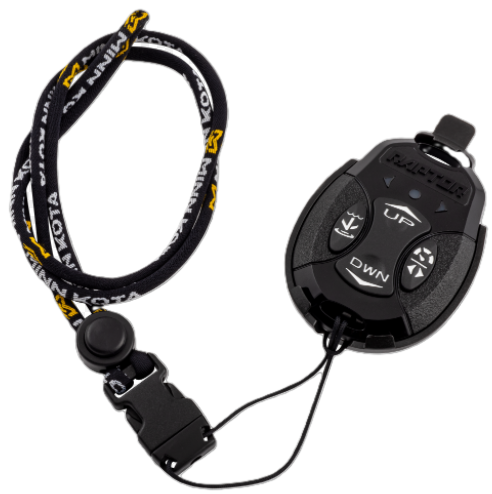

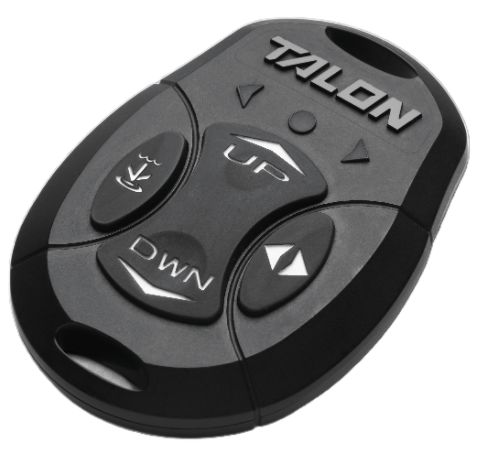

 Raptor Shallow Water Anchor Remote | Talon Bluetooth Shallow Water Anchor Remote | Non-Bluetooth 4 Button Talon Shallow Water Anchor Remote

Accessory Remotes

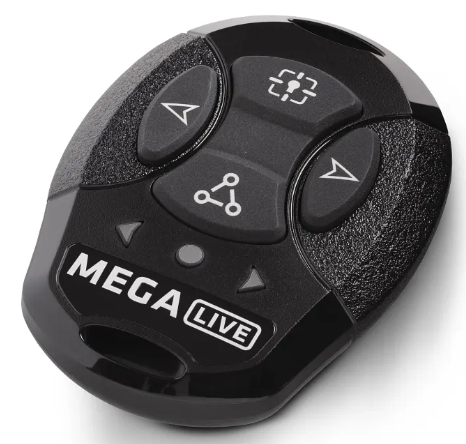

 MEGA Live TargetLock Remote

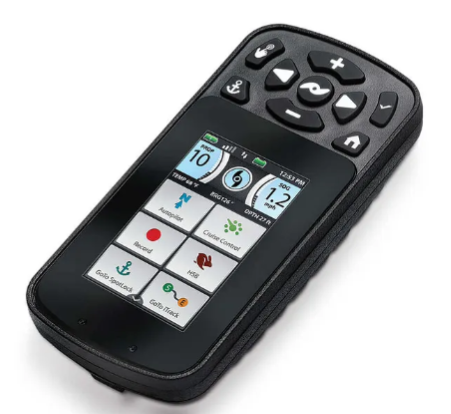

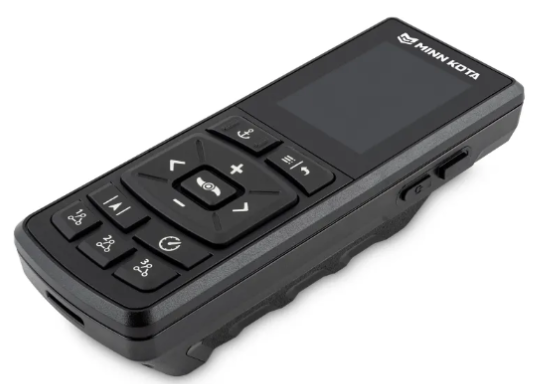

Advanced GPS Navigation Wireless Remote

Click the drop-down arrow  to view compatibility with this remote:

Advanced GPS Navigation Wireless Remote

Advanced GPS Navigation Wireless Remote

Advanced GPS Navigation Wireless Remote Compatible with:

  • 2023-Present QUEST Brushless and Non-QUEST (Brushed) Motors Equipped with Advanced GPS Navigation:
    • Riptide Instinct QUEST (2023-Present)
    • Riptide Terrova QUEST (2023-Present)
    • Terrova QUEST (2023-Present)
    • Ulterra QUEST (2023-Present)
    • Ultrex QUEST (2023-Present)
    • Riptide PowerDrive (2023-Present)
      • Note: PowerDrive motors equipped with a foot pedal are not compatible with remote operation.
    • Riptide Terrova (2023-Present)
    • PowerDrive (2023-Present)
      • Note: PowerDrive motors equipped with a foot pedal are not compatible with remote operation.
    • Terrova (2023-Present)
    • Ulterra (2023-Present)
    • Ultrex(2023-Present)

Advanced GPS Navigation Wireless Remote NOT Compatible with:

  • PowerDrive motors equipped with foot pedal operation
  • i-Pilot BT (2017-2023)
  • i-Pilot Link BT (2017-2023)
  • Legacy i-Pilot non-Bluetooth (2007-2016)
  • Legacy i-Pilot Link non-Bluetooth (2007-2016)
  • Co-Pilot equipped motors
  • Cable-Steer Motors
  • Transom Mount Motors

Advanced GPS Navigation Wireless Remote Features:

  • Features four programable One-Boat Network buttons
  • Waterproof and lightweight
  • Wireless Remote is powered by 2 AA batteries (included)
  • Lanyard and carabiner are included

Manual

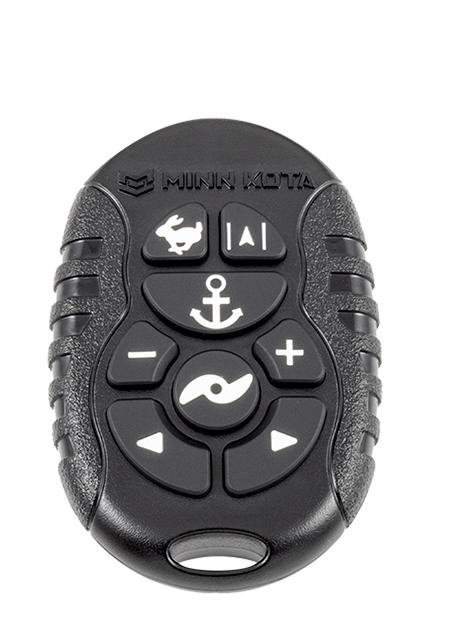

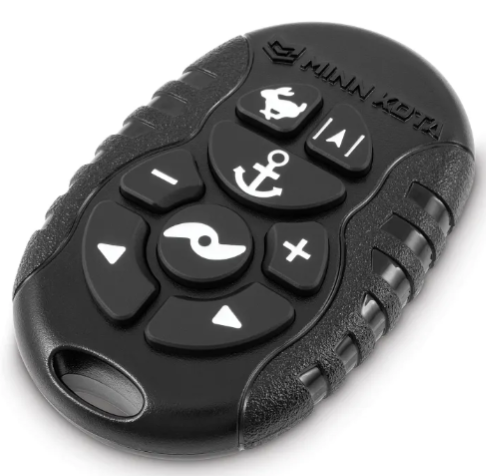

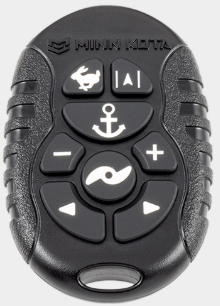

Micro Remote Bluetooth

Click the drop-down arrow  to view compatibility with Micro Remote Bluetooth remote:

Micro Remote Bluetooth

Micro Remote Bluetooth

Micro Remote Bluetooth Compatible with:

  • Riptide Instinct QUEST (2023-Present)
    • Micro Remote does not have Stow and Deploy if paired with Ulterra or Riptide Instinct QUEST model.
  • Riptide Terrova QUEST (2023-Present)
  • Terrova QUEST (2023-Present)
  • Ulterra QUEST (2023-Present)
    • Micro Remote does not have Stow and Deploy if paired with Ulterra or Riptide Instinct QUEST model.
  • Ultrex QUEST (2023-Present)
  • Riptide PowerDrive (2023-Present)
    • Note: PowerDrive motors equipped with a foot pedal are not compatible with remote operation.
  • Riptide Terrova (2023-Present)
  • PowerDrive (2023-Present)
    • Note: PowerDrive motors equipped with a foot pedal are not compatible with remote operation.
  • Terrova (2023-Present)
  • Ulterra (2023-Present)
    • Micro Remote does not have Stow and Deploy if paired with Ulterra or Riptide Instinct QUEST model.
  • Ultrex(2023-Present)
  • Riptide Terrova i-Pilot Link BT
  • Riptide Ulterra i-Pilot Link BT
    • Micro Remote does not have Stow and Deploy is paired with Ulterra or Riptide Instinct QUEST model.
  • Terrova i-Pilot Link BT
  • Ulterra i-Pilot Link BT
  • Riptide Ulterra Link BT
    • Micro Remote does not have Stow and Deploy if paired with Ulterra BT or Riptide Ulterra BT models
  • Ultrex i-Pilot Link BT

Micro Remote Bluetooth NOT Compatible with Compatible with:

  • PowerDrive motors equipped with a foot pedal are not compatible with remote operation.
  • Legacy i-Pilot (2007-2016)
  • Legacy i-Pilot Link (2007-2016)
  • Co-Pilot equipped motors
  • Transom Mount Motors
  • Cable Steer Motors

Micro Remote Bluetooth Features:

  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.
  • Includes neck lanyard.

Micro Remote Bluetooth Manual

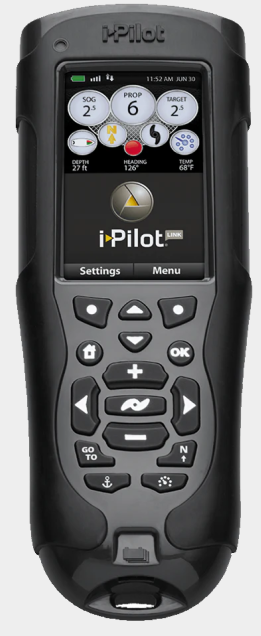

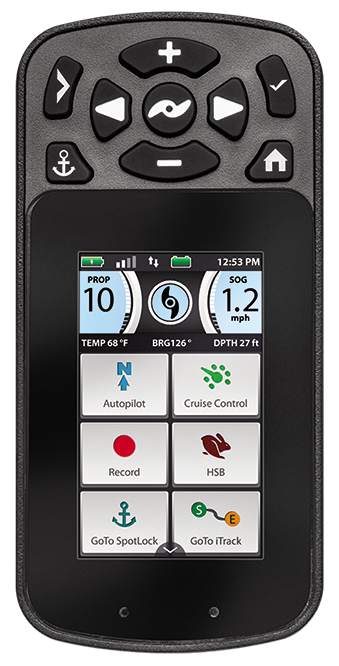

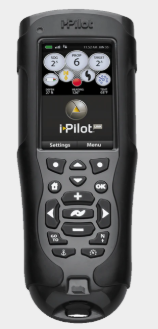

I-Pilot Link BT Remote

Click the drop-down arrow  to view compatibility with i-Pilot Link BT remote:

I-Pilot Link BT Remote

i-Pilot Link BT Touch Screen / Rechargeable Remote

i-Pilot Link BT Remote Compatible with:

  • 2017-2023 Motor Equipped with i-Pilot Link BT Only
    • Riptide Terrova i-Pilot Link BT
    • Riptide Ulterra i-Pilot Link BT
    • Terrova i-Pilot Link BT
    • Ulterra i-Pilot Link BT
    • Riptide Ulterra Link BT
    • Ultrex i-Pilot Link BT

i-Pilot Link BT Remote NOT Compatible with:

  • Advanced GPS Navigation (2023-Present)
  • i-Pilot BT (2017-2023)
  • Legacy i-Pilot (2007-2016)
  • Legacy i-Pilot Link (2007-2016)
  • Co-Pilot equipped motors
  • Transom Mount Motors
  • Cable Steer Motors

i-Pilot Link BT Remote Features

  • Waterproof
  • Remote is powered by rechargeable Lithium Ion battery pack.
  • Lanyard and Charging Cable not included.

i-Pilot Link BT Manual

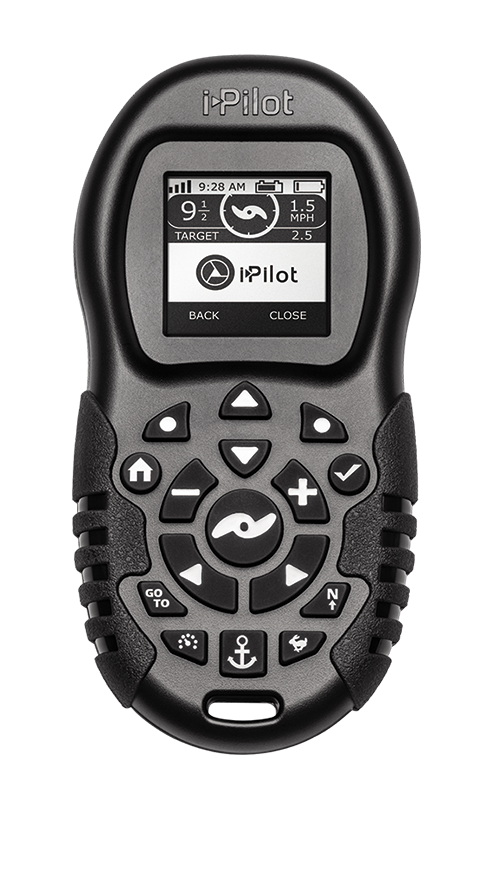

I-Pilot BT Remote

Click the drop-down arrow  to view compatibility with i-Pilot BT remote:

I-Pilot BT Remote

i-Pilot BT

i-Pilot BT Remote Compatible with:

  • 2017-2023 Motors Equipped with i-Pilot BT
    • PowerDrive i-Pilot BT
    • Riptide PowerDrive i-Pilot BT
    • Riptide Terrova i-Pilot BT
    • Terrova i-Pilot BT
    • Ulterra BT
      • Micro Remote does not have Stow and Deploy if paired with Ulterra BT or Riptide Ulterra BT models
    • Riptide Ulterra i-Pilot BT
      • Micro Remote does not have Stow and Deploy if paired with Ulterra BT or Riptide Ulterra BT models
    • Ultrex i-Pilot BT

i-Pilot BT Remote NOT Compatible with:

  • PowerDrive BT motors equipped with a foot pedal are not compatible with remote operation, However for i-Pilot BT there are upgrade kits available: Please Click here for Upgrade Kit Compatibility
  • Advanced GPS Navigation
  • i-Pilot Link BT (2017-2023)
  • Legacy i-Pilot (2007-2016)
  • Legacy i-Pilot Link (2007-2016)
  • Co-Pilot equipped motors
  • Transom Mount Motors
  • Cable Steer Motors

i-Pilot BT Remote Features

  • Waterproof
  • Remote is powered by three replaceable Alkaline AAA batteries.
  • Lanyard not included

i-Pilot BT Remote Manual









i-Pilot Link Non-Bluetooth Remote (Not Longer Manufactured)

Click the drop-down arrow  to view compatibility with i-Pilot Link Non-Bluetooth remote:

i-Pilot Link Non-Bluetooth (No Longer Manufactured)

i-Pilot Link Non-Bluetooth Remote

  • Item Number 1866450 (No longer manufactured, however you can use item number to the find remote through other sources.
  • Part #2994180 (No longer manufactured, however you can use item number to the find remote through other sources.

i-Pilot Link Non-Bluetooth compatible with:

  • PowerDrive i-Pilot Link Non- Bluetooth
  • Riptide PowerDrive i-Pilot Link Non- Bluetooth
  • Riptide Terrova i-Pilot Link Non- Bluetooth
  • Riptide Ulterra i-Pilot Link Non- Bluetooth
  • Terrova i-Pilot Link Non- Bluetooth
  • Ulterra i-Pilot Link Non- Bluetooth

i-Pilot Link Non-Bluetooth NOT compatible with:

  • Advanced GPS Navigation (2023-Present)
  • i-Pilot (2007-2016)
  • i-Pilot BT (2017-2023)
  • i-Pilot Link BT (2017-2023)
  • Co-Pilot motors
  • Transom Mount Motors
  • Cable Steer Motors

i-Pilot BT Remote Features

  • Waterproof
  • Remote is rechargeable

i-Pilot BT Remote Manual

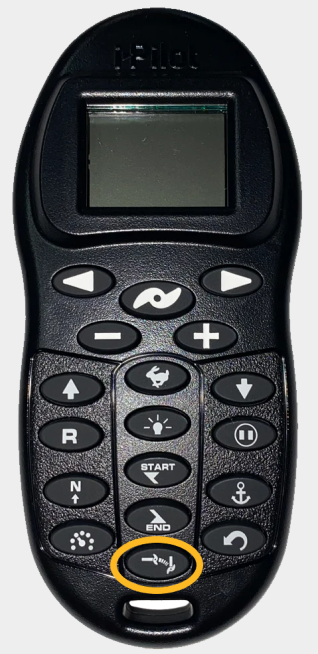

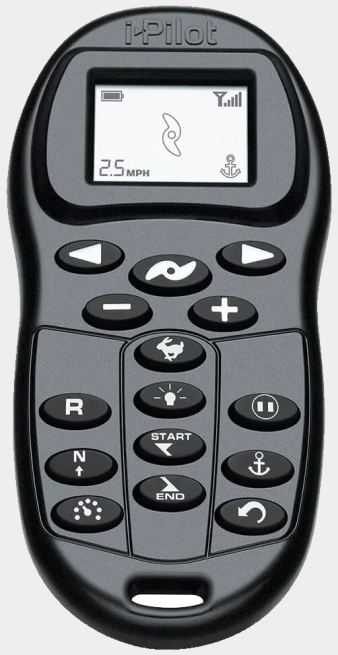

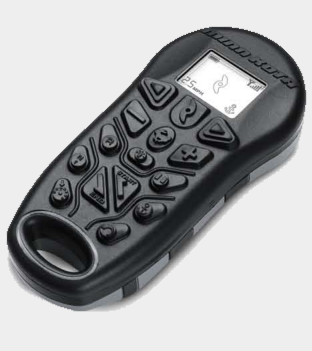

i-Pilot 1.5 Non-Bluetooth Remote (Not Longer Manufactured)

Click the drop-down arrow  to view compatibility with i-Pilot Non-Bluetooth remote:

i-Pilot Non-Bluetooth (No Longer Manufactured)

i-Pilot Non-Bluetooth Remote

  • Item Number 1866350 (No longer manufactured, however you can use item number to the find remote through other sources.
  • Part #2994170 (No longer manufactured, however you can use item number to the find remote through other sources.

i-Pilot Non-Bluetooth compatible with:

  • 2007-2016 Motor Equipped with Legacy i-Pilot Non-Bluetooth
    • PowerDrive i-Pilot Non-Bluetooth
    • Riptide PowerDrive i-Pilot Non-Bluetooth
    • Riptide Terrova i-Pilot Non-Bluetooth
    • Terrova i-Pilot Non-Bluetooth

i-Pilot Non-Bluetooth NOT compatible with:

  • Advanced GPS Navigation (2023-Present)
  • i-Pilot Link Non-Bluetooth BT (2007-2016)
  • i-Pilot BT (2017-2023)
  • i-Pilot Link BT (2017-2023)
  • Co-Pilot equipped motors
  • Transom Mount Motors
  • Cable Steer Motors

i-Pilot Non-Bluetooth Features:

  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.
  • Note: Does not contact the stow and deploy button for Ulterra and Riptide Ulterra models.

i-Pilot Non-Bluetooth Manual









i-Pilot 1.5 Non-Bluetooth Uterra Remote (Not Longer Manufactured)

Click the drop-down arrow  to view compatibility with i-Pilot Non-Bluetooth Ulterra remote:

i-Pilot Non-Bluetooth Ulterra Remote(No Longer Manufactured)

i-Pilot Non-Bluetooth Ulterra Remote

  • Part #2994171 (No longer manufactured, however you can use item number to the find remote through other sources.

i-Pilot Non-Bluetooth Ulterra Remote compatible with:

  • 2015-2016 Legacy Ulterra Motors Equipped with i-Pilot Non-Bluetooth:
    • Riptide Ulterra i-Pilot Non-BT
    • Ulterra i-Pilot Non-BT

i-Pilot Non-Bluetooth Ulterra Remote NOT compatible with:

  • Advanced GPS Navigation (2023-Present)
  • i-Pilot Link (2007-2016)
  • i-Pilot BT (2017-2023)
  • i-Pilot Link BT (2017-2023)
  • Co-Pilot equipped motors
  • Transom Mount Motors
  • Cable Steer Motors

i-Pilot Non-Bluetooth Ulterra Remote Features:

  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.
  • Stow and Deploy Button for Non-Bluetooth Ulterra and Riptide Ulterra models

i-Pilot Non-Bluetooth Manual









Micro Remote Non-Bluetooth (Not Longer Manufactured)

Click the drop-down arrow  to view compatibility with Micro Remote Non-Bluetooth remote:

Micro Remote Non-Bluetooth (No Longer Manufactured)

Micro Remote Non-Bluetooth Remote

  • Item # 1866360 (No longer manufactured, however you can use item number to the find remote through other sources.)

Micro Remote Non-Bluetooth Remote compatible with:

  • 2007-2016 Motor Equipped with Legacy i-Pilot Non-Bluetooth
    • PowerDrive i-Pilot Non-BT
    • Riptide PowerDrive i-Pilot Non-BT
    • Riptide Terrova i-Pilot Non-BT
    • Terrova i-Pilot Non-BT

Micro Remote Non-Bluetooth Remote NOT compatible with:

  • Advanced GPS Navigation (2023-Present)
  • i-Pilot Link (2007-2016)
  • i-Pilot BT (2017-2023)
  • i-Pilot Link BT (2017-2023)
  • Co-Pilot equipped motors
  • Transom Mount Motors
  • Cable Steer Motors

Micro Remote Non-Bluetooth Remote Features:

  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.
  • Note: Does not contain the stow and deploy button for Ulterra and Riptide Ulterra models.

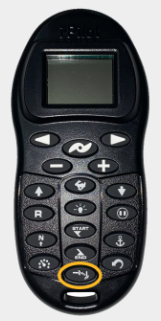

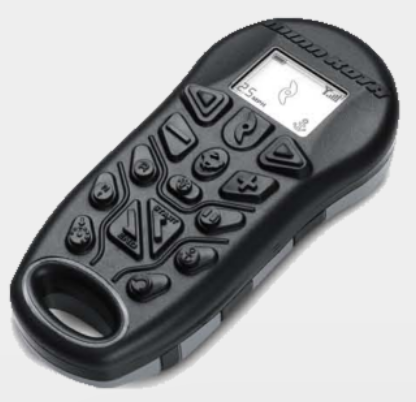

i-Pilot 1.0 Non-Bluetooth Remote (Replaced by i-Pilot 1.5 Non-Bluetooth remote)

Click the drop-down arrow  to view compatibility with i-Pilot 1.0 Non-Bluetooth remote:

i-Pilot 1.0 Non-Bluetooth Remote (Replaced by i-Pilot 1.5 Non-Bluetooth remote)

i-Pilot 1.0 Non-Bluetooth Remote

  • Replaced by 1.5 Remote Part #2994170 (Obsolete)

i-Pilot 1.0 Non-Bluetooth Remote compatible with:

  • 2007-2016 Motor Equipped with Legacy i-Pilot Non-Bluetooth
    • PowerDrive i-Pilot Non-BT
    • Riptide PowerDrive i-Pilot Non-BT
    • Riptide Terrova i-Pilot Non-BT
    • Terrova i-Pilot Non-BT

i-Pilot 1.0 Non-Bluetooth Remote NOT compatible with:

  • Advanced GPS Navigation (2023-Present)
  • i-Pilot Link (2007-2016)
  • i-Pilot BT (2017-2023)
  • i-Pilot Link BT (2017-2023)
  • Co-Pilot equipped motors
  • Transom Mount Motors
  • Cable Steer Motors

i-Pilot 1.0 Non-Bluetooth Remote Features:

  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.
  • Note: Does not contain the stow and deploy button for Ulterra and Riptide Ulterra models.

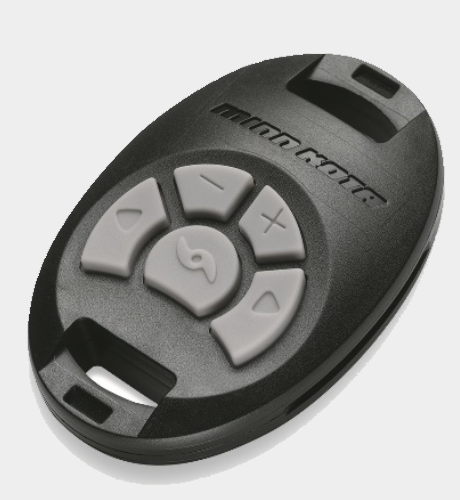

PowerDrive Co-Pilot Remote

Click the drop-down arrow  to view compatibility with PowerDrive Co-Pilot remote:

PowerDrive Co-Pilot Remote

PowerDrive Co-Pilot Remote

  • Item #1866120 (No longer manufactured, however you can use item number to the find remote through other sources.)

PowerDrive Co-Pilot Remote compatible with:

  • Compatible only with Co-Pilot equipped PowerDrive trolling motors:
    • Riptide PowerDrive BT (2017-2023)
    • Riptide PowerDrive/Riptide SP (2007-2016)
    • Riptide PowerDrive/Riptide SP (2006 and Earlier)
    • PowerDrive BT (2017-2023)
    • PowerDrive V2 (2007-2016)
    • PowerDrive (2006 and Earlier)

PowerDrive Co-Pilot Remote NOT compatible with:

  • Advanced GPS Navigation (2023-Present)
  • Co-Pilot Equipped Terrova or Riptide Terrova
  • i-Pilot Link (2007-2016)
  • i-Pilot BT (2017-2023)
  • i-Pilot Link BT (2017-2023)
  • Legacy i-Pilot Link non-Bluetooth (2007-2016)
  • Legacy i-Pilot  non-Bluetooth (2007-2016)
  • Transom Mount Motors
  • Cable Steer Motors

PowerDrive Co-Pilot Features

  • Contact Buttons for Prop Control and Steering for Co-Pilot equipped PowerDrive models.
  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.









Terrova Co-Pilot Remote

Click the drop-down arrow  to view compatibility with Terrova Co-Pilot remote:

Terrova Co-Pilot Remote

Terrova Co-Pilot Remote

  • Item # 1866170 (No longer manufactured, however you can use item number to the find remote through other sources)
  • Part # 2774095 (No longer manufactured, however you can use item number to the find remote through other sources)

Terrova Co-Pilot Remote Compatible only with Co-Pilot equipped Terrova motors:

  • Riptide Terrova BT (2017-2023)
  • Riptide Terrova / Riptide ST (2007-2016)
  • Terrova BT (2017-2023)
  • Terrova (2007-2016)

Terrova Co-Pilot Remote NOT compatible with:

  • Advanced GPS Navigation (2023-Present)
  • Co-Pilot Equipped PowerDrive or Riptide PowerDrive
  • i-Pilot Link (2007-2016)
  • i-Pilot BT (2017-2023)
  • i-Pilot Link BT (2017-2023)
  • Legacy i-Pilot Link non-Bluetooth (2007-2016)
  • Legacy i-Pilot  non-Bluetooth (2007-2016)
  • Transom Mount Motors
  • Cable Steer Motors

Terrova Co-Pilot Features

  • Provides buttons for prop control, steering, High Speed Bypass, and AutoPilot for Co-Pilot equipped Terrova models.
  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.

Terrova Co-Pilot Manual









Raptor Shallow Water Anchor Remote

Click the drop-down arrow  to view compatibility with Raptor Shallow Water Anchor remote:

Raptor Shallow Water Anchor Remote

Raptor Shallow Water Anchor Remote

Raptor Shallow Water Anchor Remote Compatible with:

  • Raptor Shallow Water Anchors

Raptor Shallow Water Anchor Remote NOT Compatible with:

  • Talon Shallow Water Anchors
  • MEGA Live TargetLock

Raptor Shallow Water Anchor Remote

  • Provides buttons to Deploy Raptor, Stow Raptor, Anchor Mode, and Speed / Anchor Selection
  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.

Raptor Shallow Water Anchor Manual









Talon Bluetooth Shallow Water Anchor Remote

Click the drop-down arrow  to view compatibility with Talon Shallow Water Anchor remote:

Talon Bluetooth Shallow Water Anchor Remote

Talon Bluetooth Shallow Water Anchor Remote

Talon Bluetooth Shallow Water Anchor Remote Compatible with:

  • Talon Bluetooth (BT) Shallow Water Anchors

Talon Bluetooth Shallow Water Anchor Remote NOT Compatible with:

  • Raptor Shallow Water Anchors
  • MEGA Live TargetLock
  • Non-Bluetooth Talon Shallow Water Anchors (2011-2017)

Talon Bluetooth Shallow Water Anchor Remote

  • Provides buttons to Deploy Talon, Stow Talon, Anchor Mode, and Speed / Anchor Selection
  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.

Talon Bluetooth Shallow Water Anchor Manual



Non-Bluetooth Talon Shallow Water Anchor Remote

Click the drop-down arrow  to view compatibility with Non-Bluetooth Talon Shallow Water Anchor remote:

Non-Bluetooth Talon Shallow Water Anchor Remote

Non-Bluetooth Talon Shallow Water Anchor Remote

  • Item Number 1810256 (No longer manufactured, however you can use item number to the find remote through other sources)
  • Part Number

Non-Bluetooth Talon Shallow Water Anchor Remote Compatible with:

  • Non-Bluetooth Talon Shallow Water Anchors (2011-2017)

Non-Bluetooth Talon Shallow Water Anchor Remote NOT Compatible with:

  • Raptor Shallow Water Anchors
  • MEGA Live TargetLock
  • Bluetooth Talon Shallow Water Anchors

Non-Bluetooth Talon Shallow Water Anchor Remote Features

  • Provides buttons to Deploy Talon and Stow Talon
  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.

Non-Bluetooth Talon Shallow Water Anchor Manual









Non-Bluetooth 4 Button Talon Shallow Water Anchor Remote

Click the drop-down arrow  to view compatibility with Non-Bluetooth 4 Button Talon Shallow Water Anchor remote:

Non-Bluetooth 4 Button Talon Shallow Water Anchor Remote

Non-Bluetooth 4 Button Talon Shallow Water Anchor Remote

  • Item Number 1810256 (No longer manufactured, however you can use item number to the find remote through other sources)
  • Part Number

Non-Bluetooth 4 Button Talon Shallow Water Anchor Remote Compatible with:

  • Non-Bluetooth Talon Shallow Water Anchors (2011-2017)

Non-Bluetooth 4 Button Talon Shallow Water Anchor Remote NOT Compatible with:

  • Raptor Shallow Water Anchors
  • MEGA Live TargetLock
  • Bluetooth Talon Shallow Water Anchors

Non-Bluetooth 4 Button Talon Shallow Water Anchor Remote Features

  • Provides 4 buttons capable of controlling 2 Non-Bluetooth Talons.
  • Provides buttons to Deploy Talon and Stow Talon
  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.

Non-Bluetooth Talon Shallow Water Anchor Manual









MEGA Live TargetLock Remote

Click the drop-down arrow  to view compatibility with MEGA Live TargetLock remote:

MEGA Live TargetLock Remote

MEGA Live Target Lock Remote

MEGA Live TargetLock Remote Compatible with:

  • MEGA Live TargetLock products

MEGA Live TargetLock Remote NOT Compatible with:

  • Raptor Shallow Water Anchors
  • MEGA Live TargetLock
  • Bluetooth Talon Shallow Water Anchors

MEGA Live TargetLock Remote Features:

  •  Provides buttons for Targetlock, One-Boat Network, Left and Right arrow keys to steer MEGA Live TargetLock.
  • Includes Remote, Mounting Clip, and Lanyard
  • Waterproof
  • Remote is powered by one replaceable CR2450 coin cell lithium battery.

MEGA Live TargetLock Manual





Related to

Was this article helpful?
9 out of 24 found this helpful

Articles in this section

See more
