X Series™ Features, Specifications, and Manuals

Updated October 22, 2026 14:54

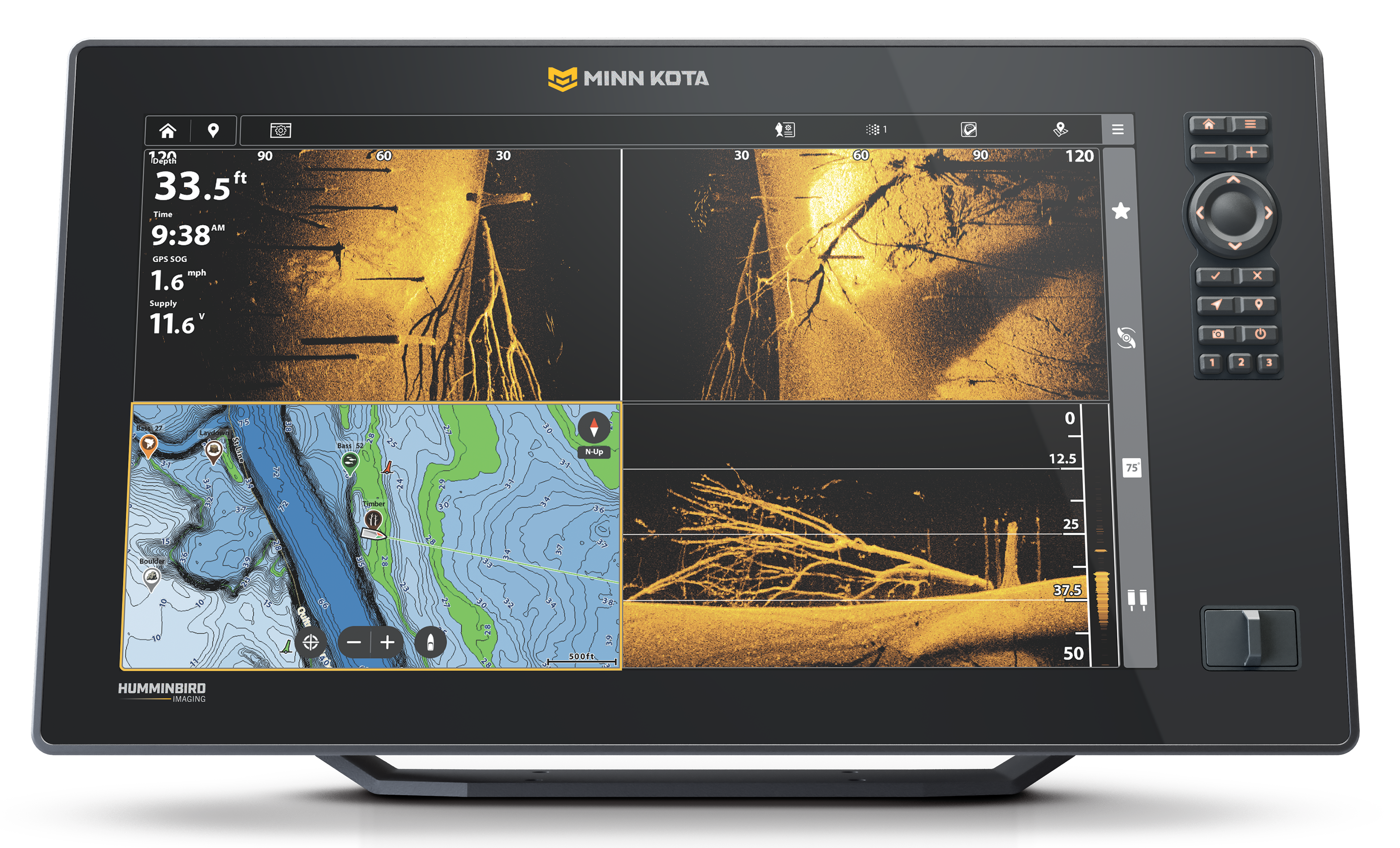

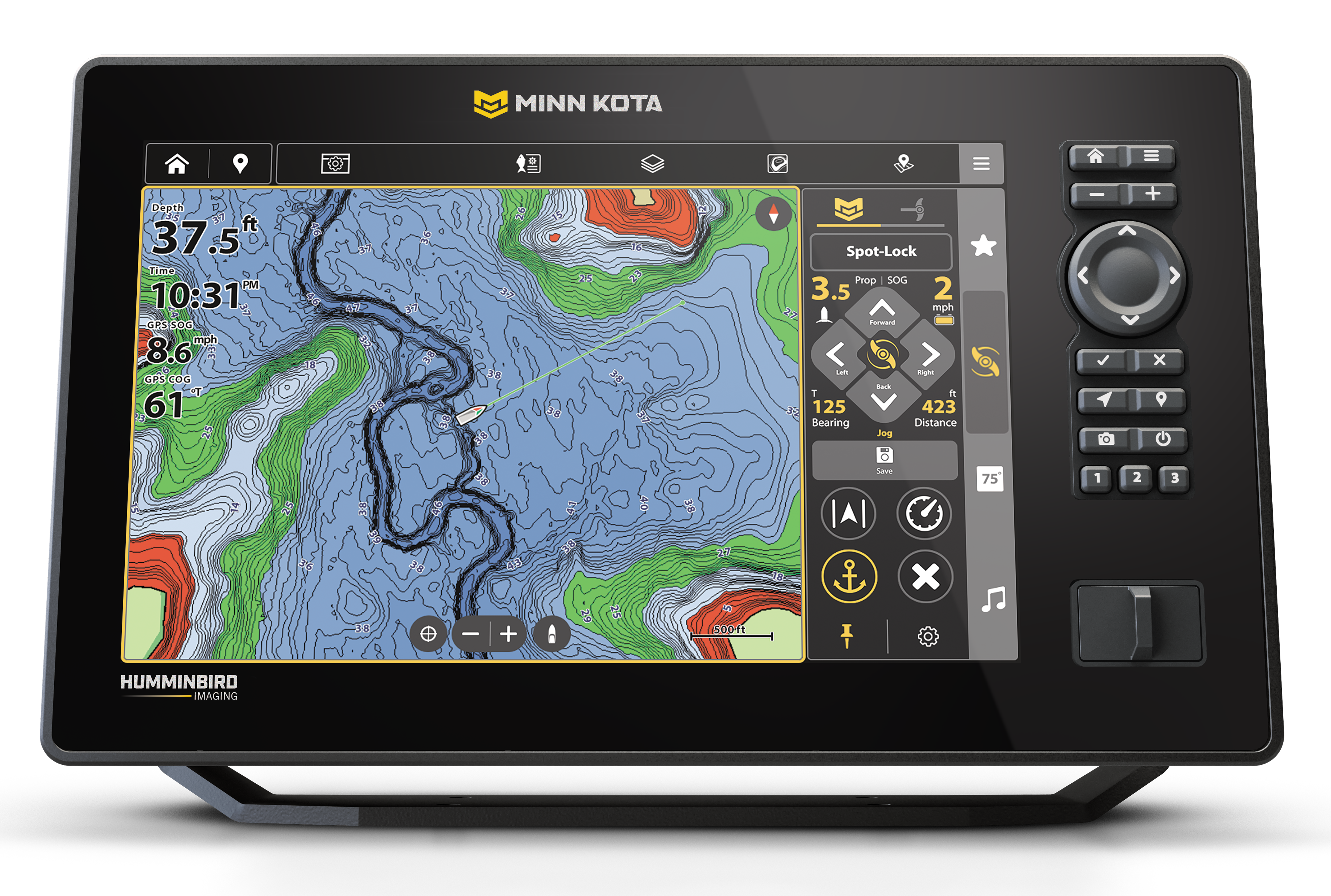

When fishing, the difference between a good day and a great one usually comes down to one thing: finding and catching more fish. That's what the Minn Kota X Series™ fish finder, Powered by Humminbird Imaging™, is built for. It's the brains of the Minn Kota™ integrated fishing system, offering a full lineup of sonar, mapping, and integrated navigation, all in one easy-to-use fish finder designed to help anglers of every skill level. Whether you're choosing your very first fish finder or upgrading your setup, the Minn Kota X Series™ is designed to feel less like tech you have to figure out, and more like a natural extension of how you already fish.

JUMP TO:

X Series ™ Overview Video
Features
Specifications
Shipping Weights

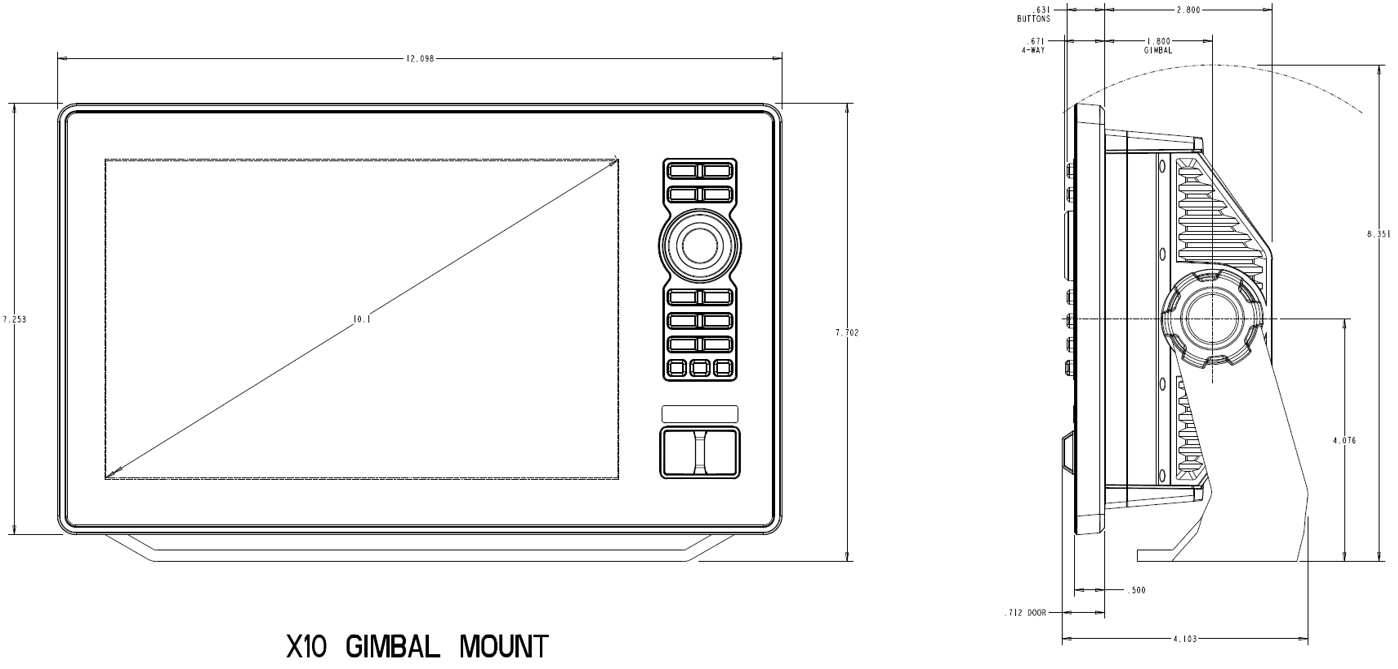

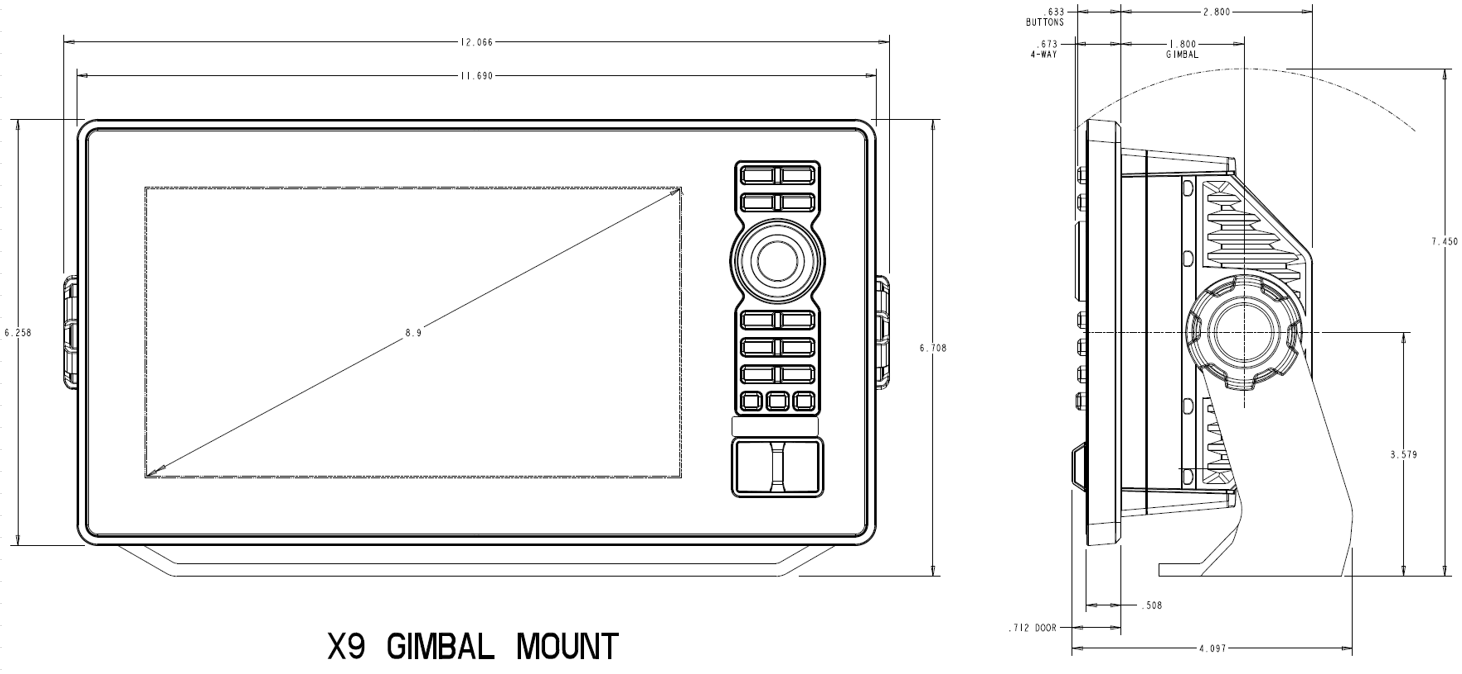

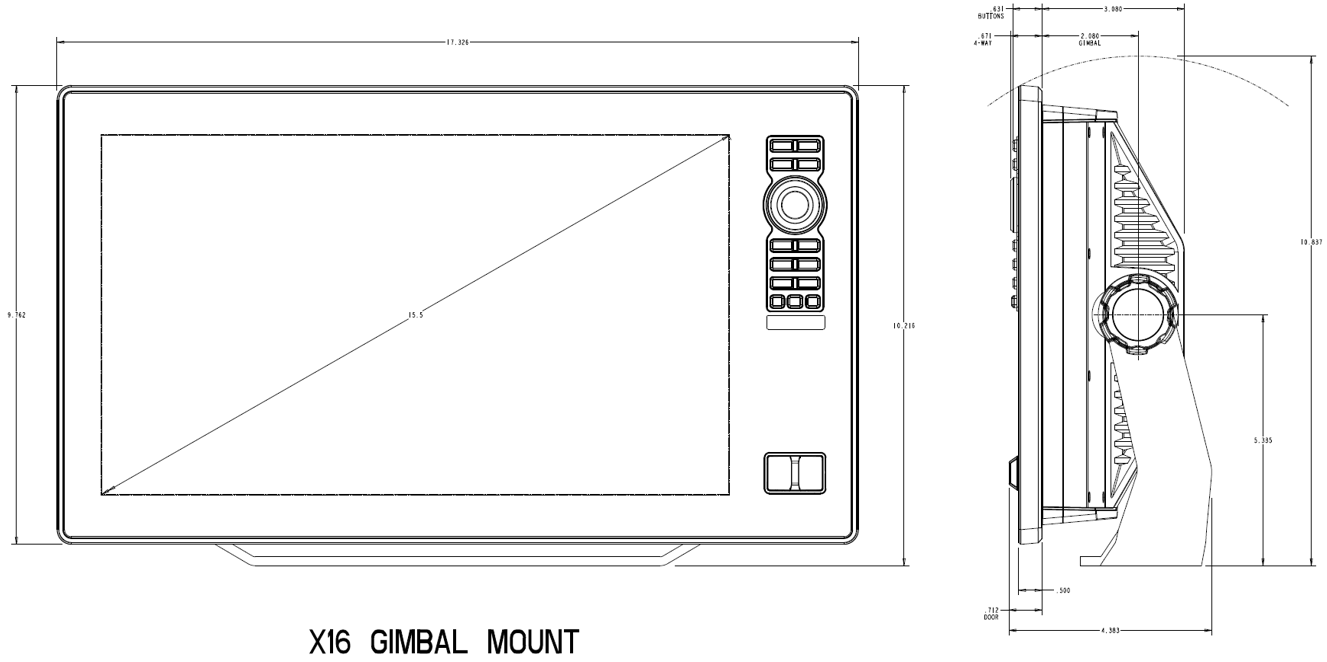

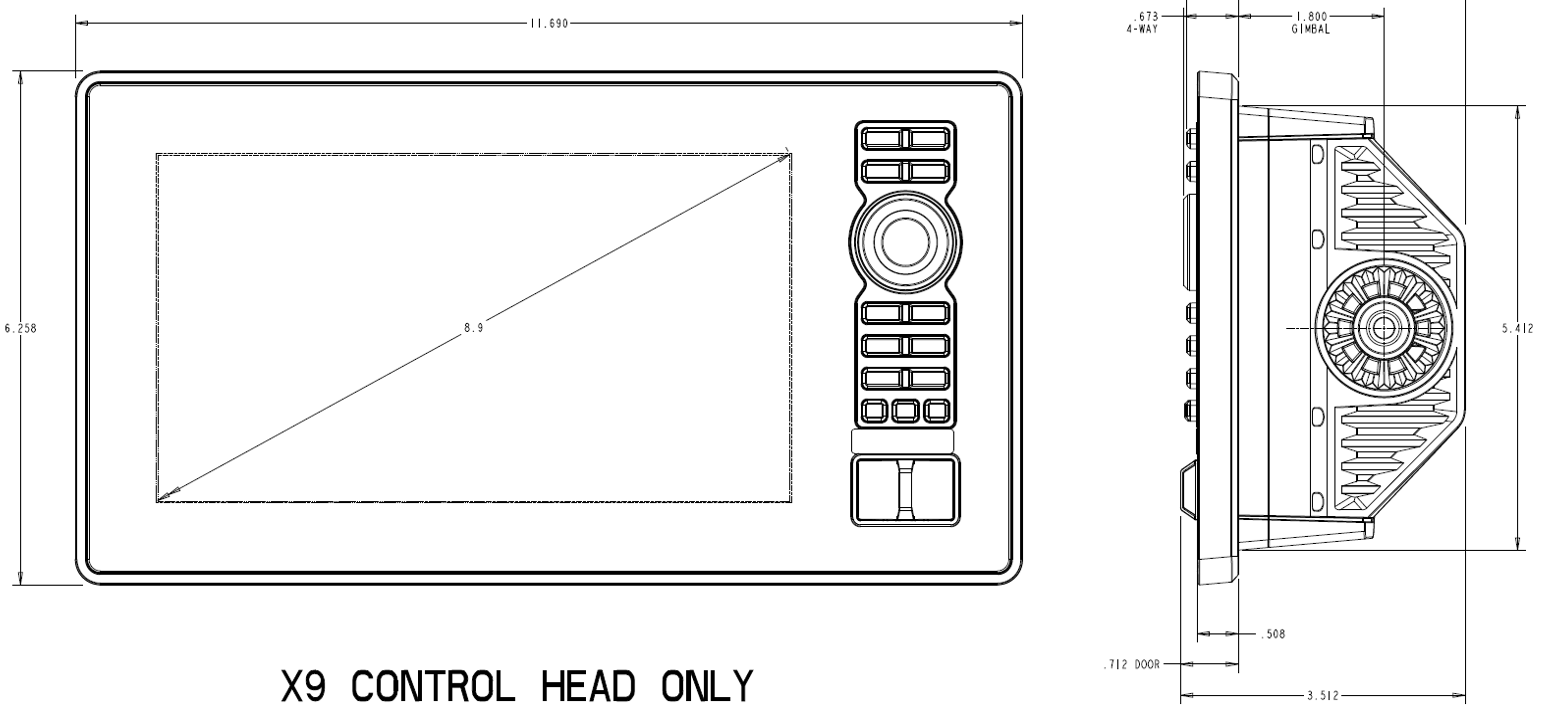

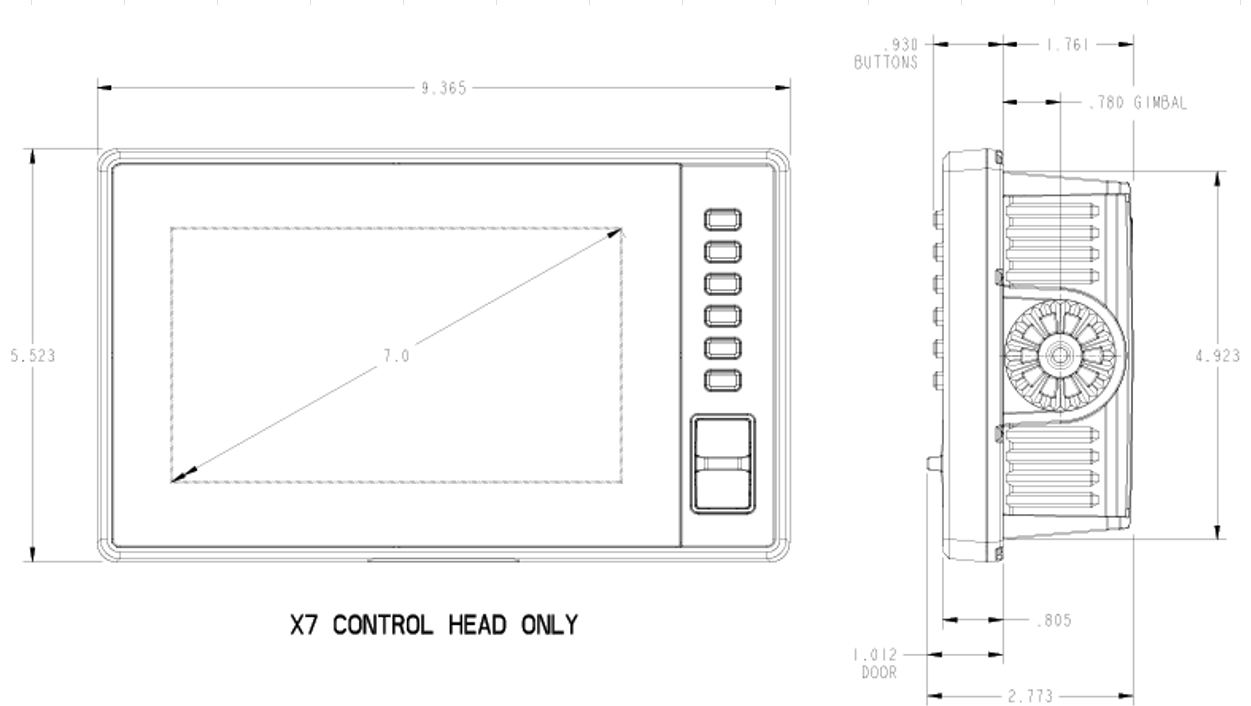

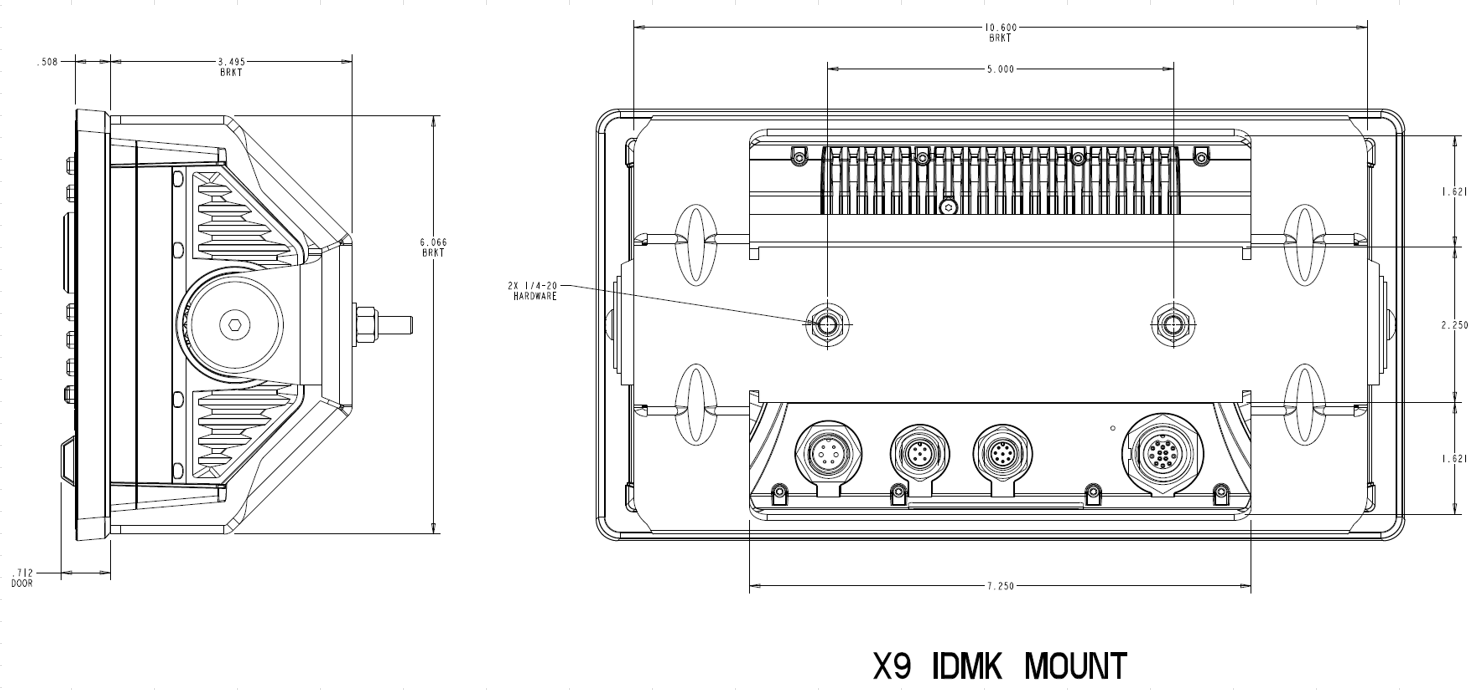

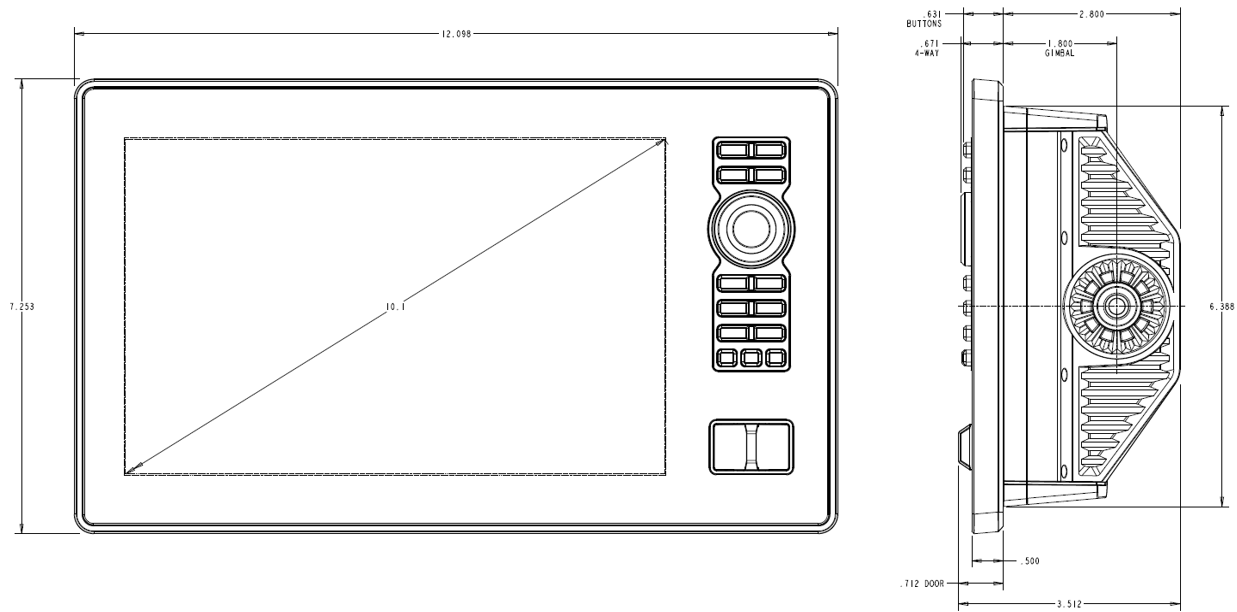

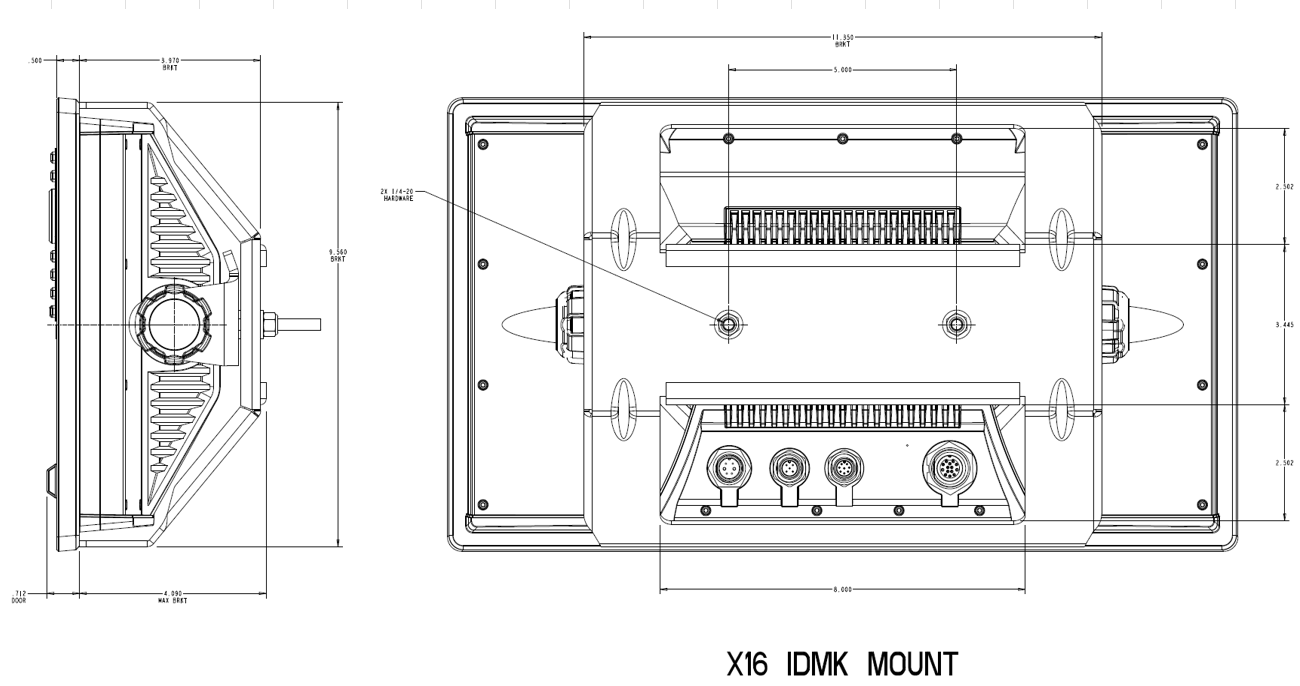

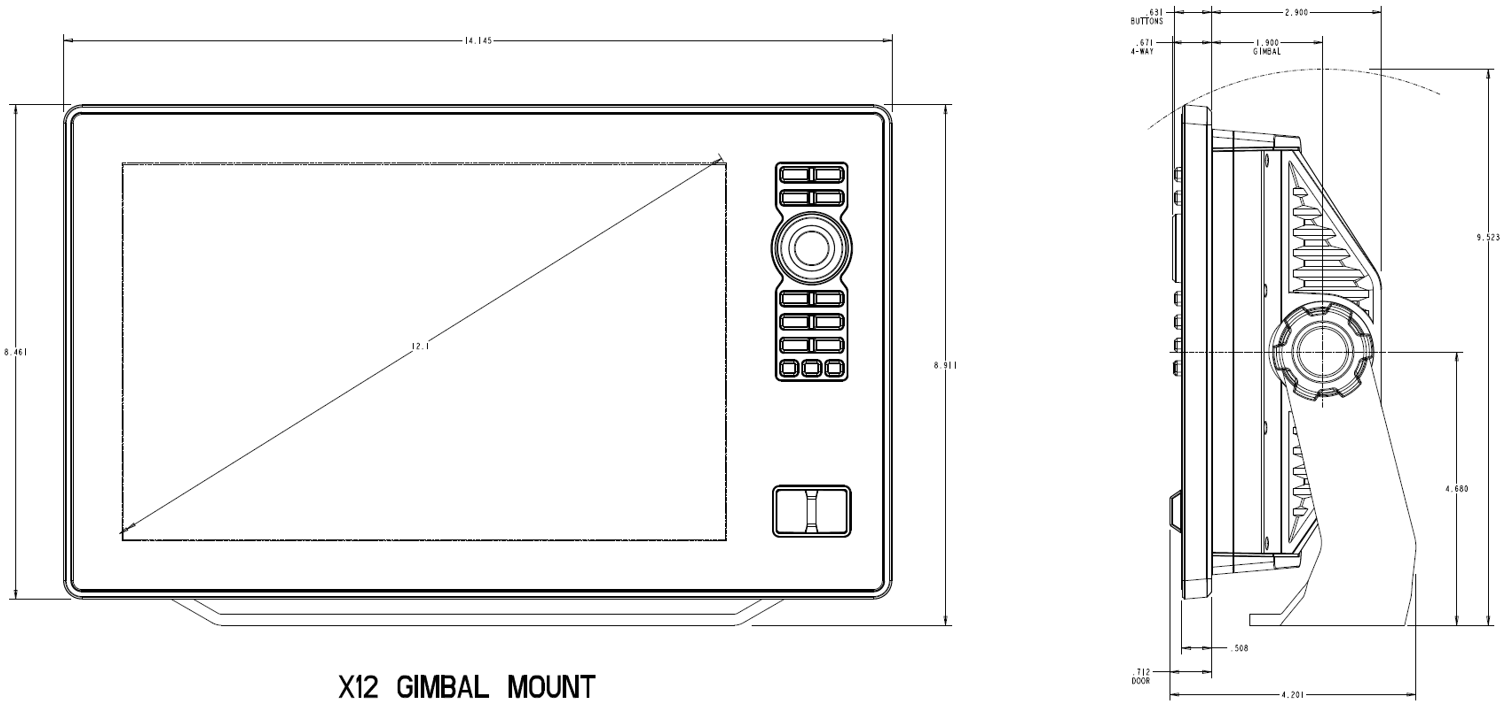

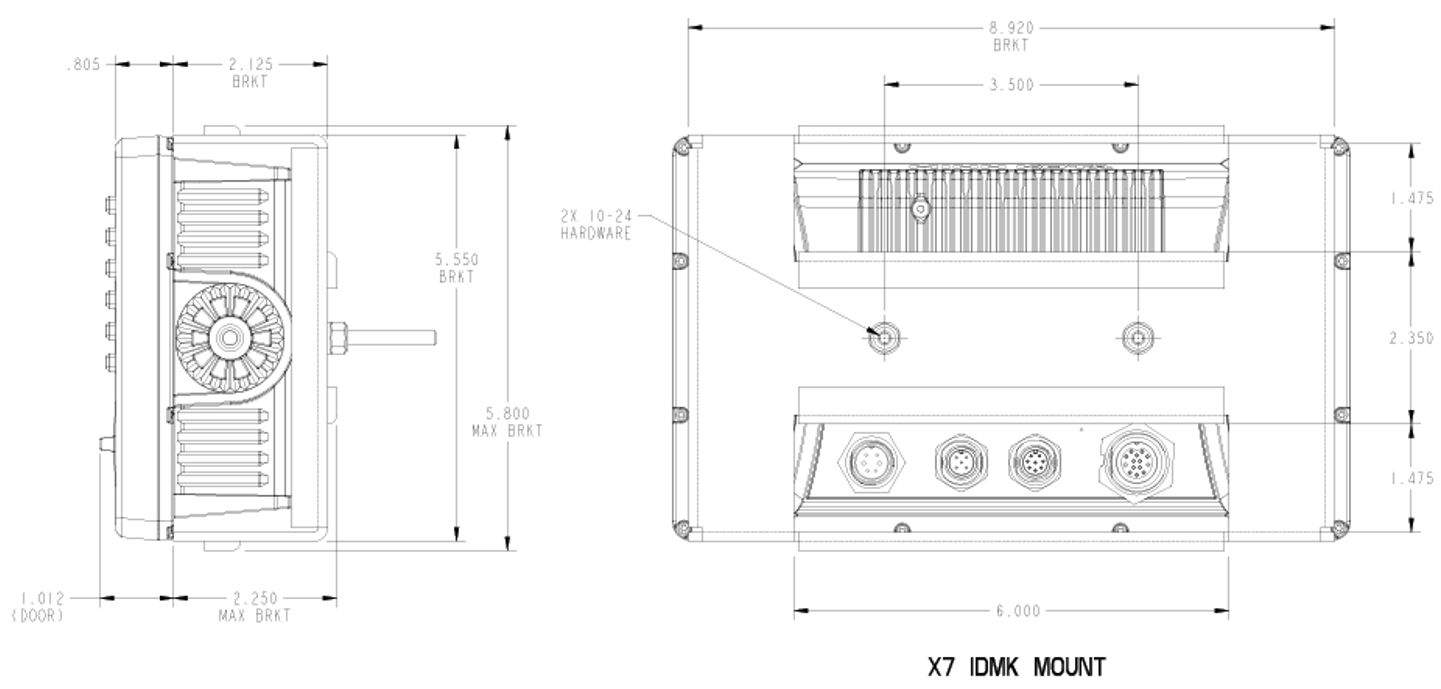

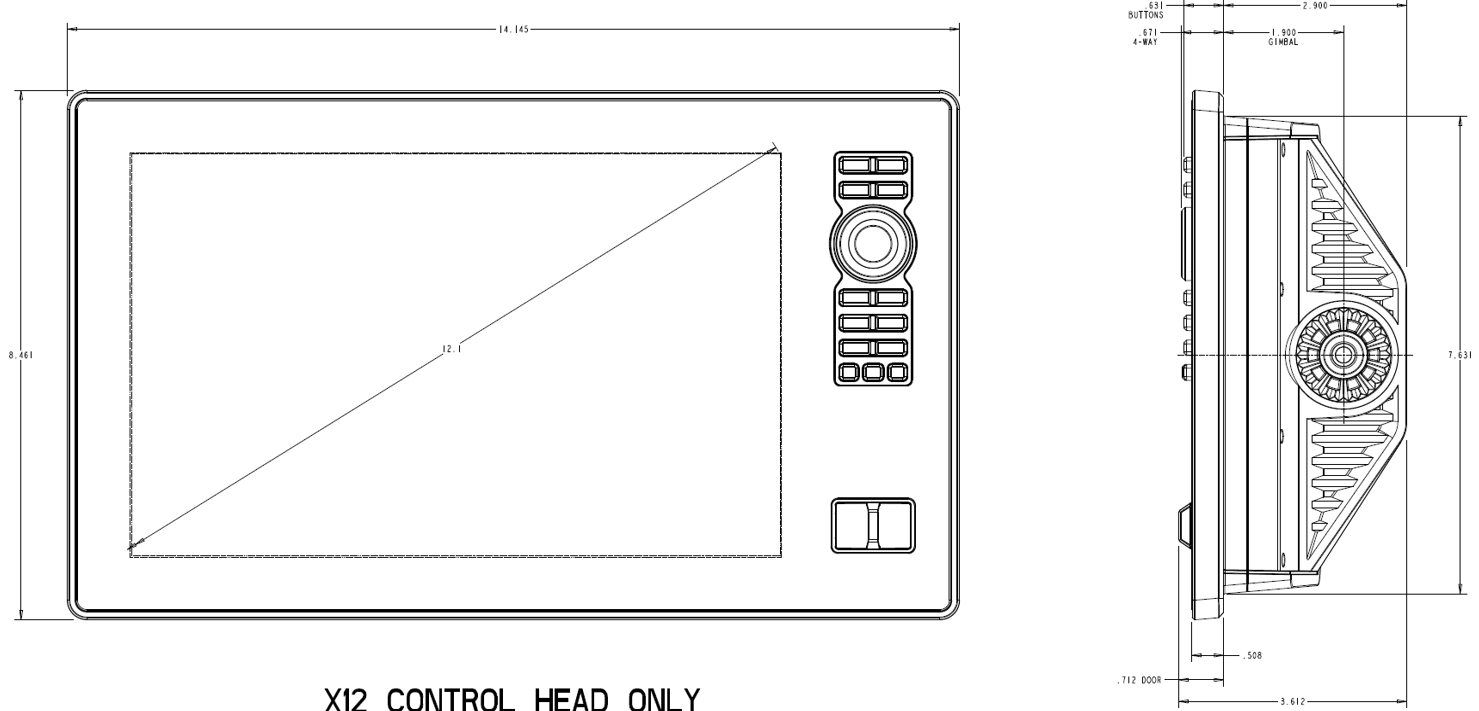

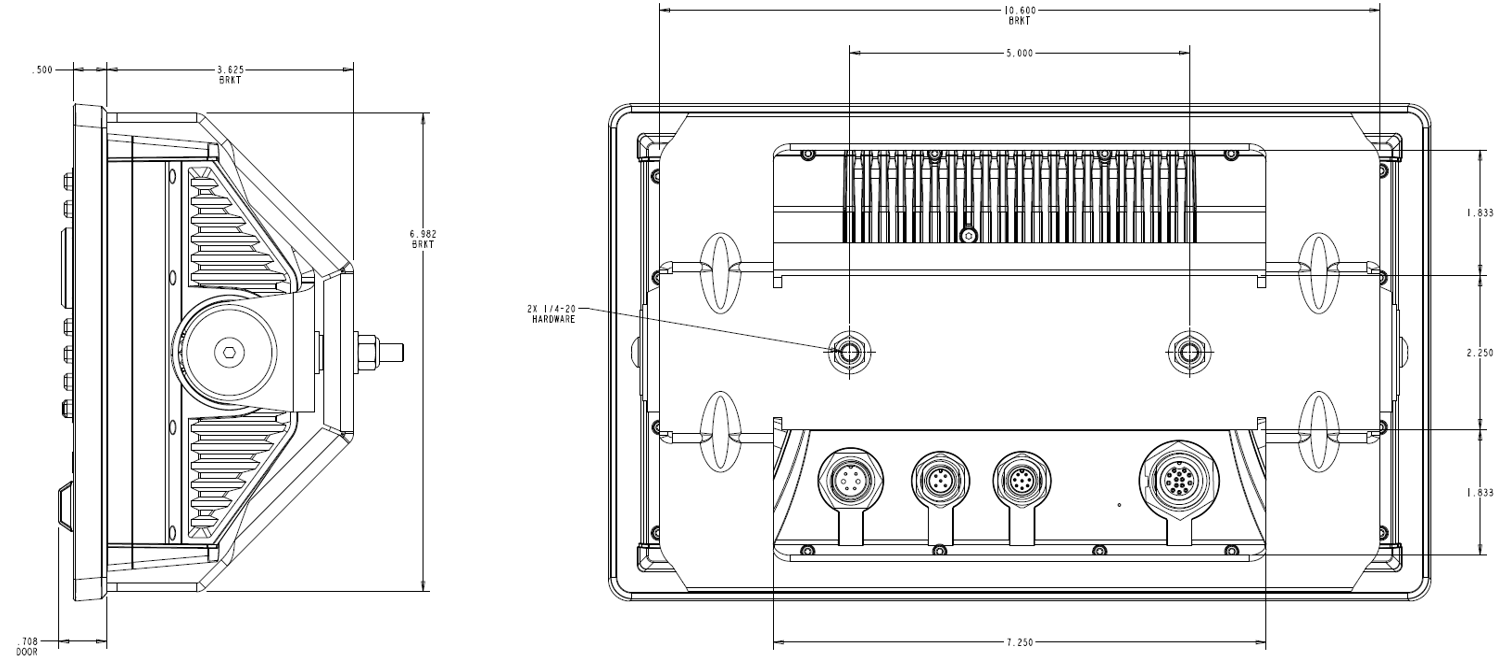

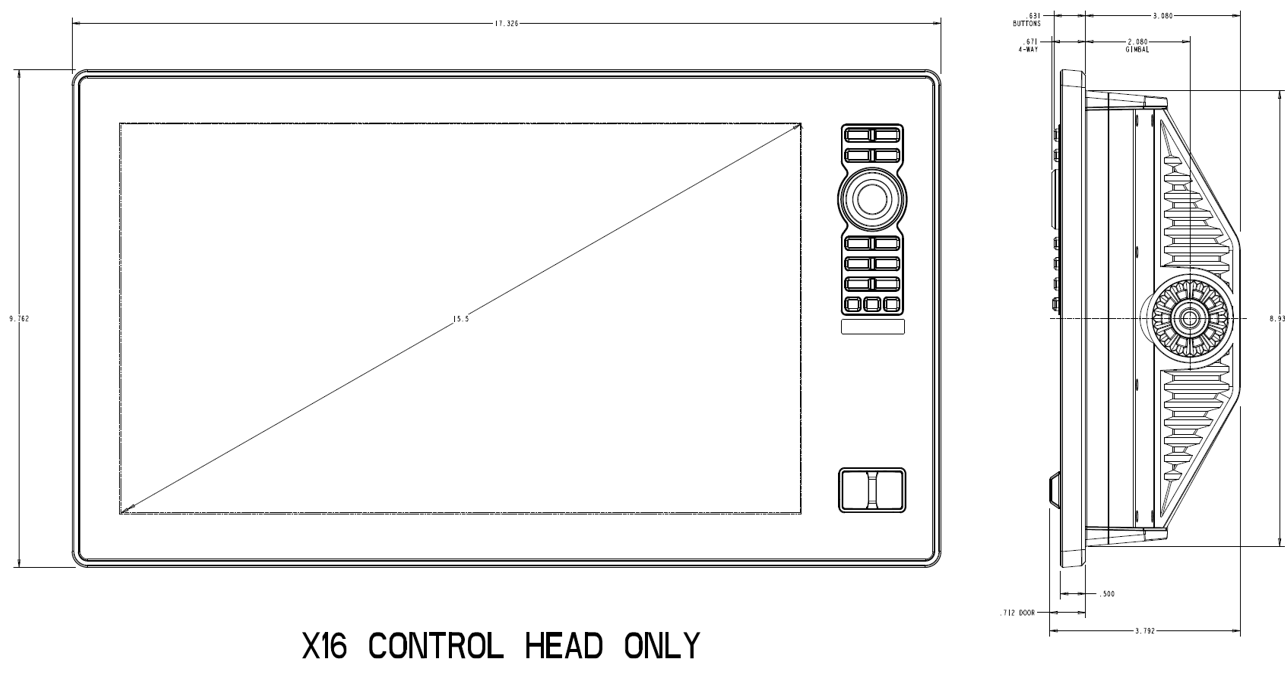

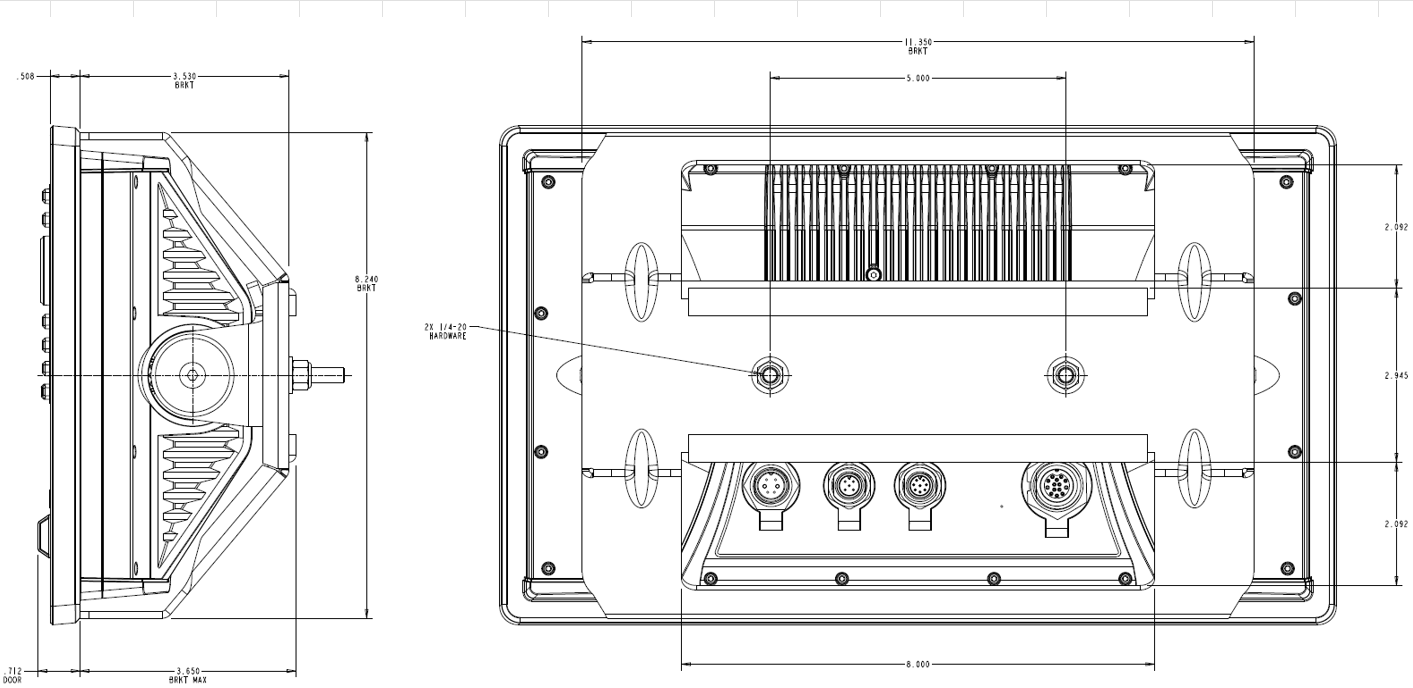

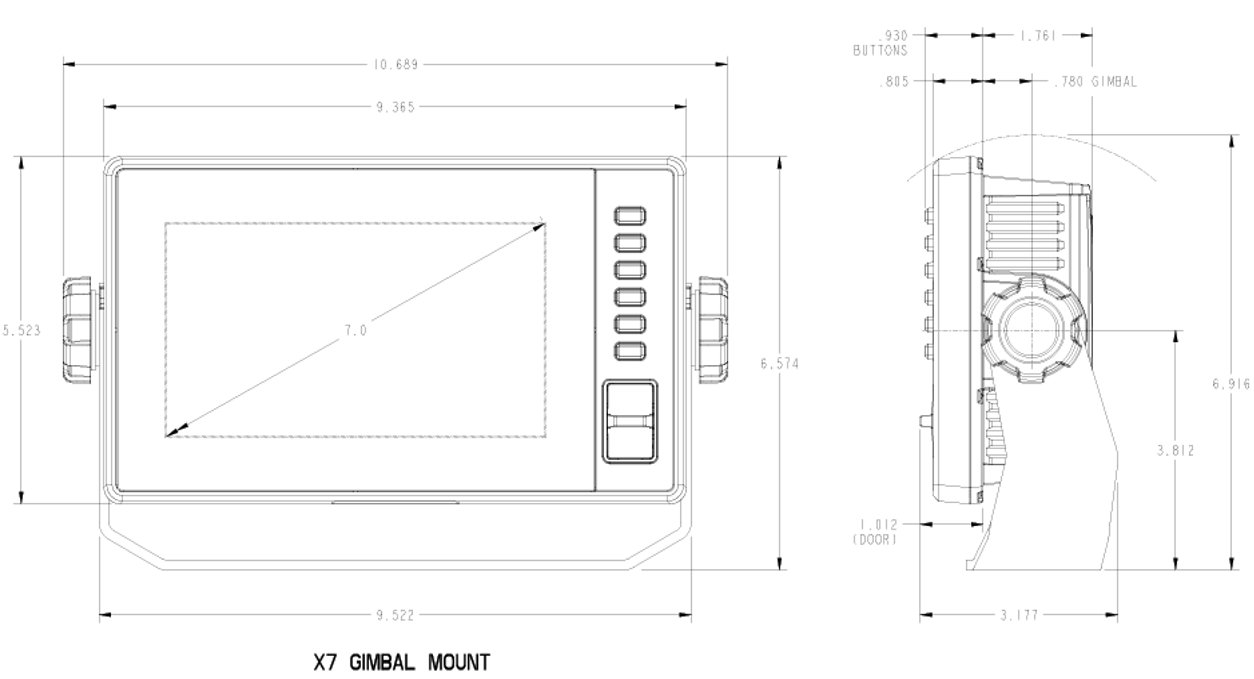

Dimensions
What Comes In the Box
Manuals

X Series™ Overview Video

Features

Powered by Humminbird Imaging™:

Sonar and Imaging built on Humminbird's industry leading performance with the clarity and detail you need to fish with confidence. X Series includes three core technologies, as well as compatibility with advanced sonar.
- Core Sonar Inclusion:
  - Dual Spectrum CHIRP (DSC): CHIRP 2D Sonar for a dependable read on depth, fish, and structure beneath the boat.
  - Side Imaging (SI): View what is to either side of your boat.
  - Down Imaging (DI): See highly-detailed photo-like returns of what’s beneath your boat
- Compatible Advanced Sonar: (Sold Separately)
  - Minn Kota Live Sonar
  - Humminbird MEGA Live2
  - Humminbird 360 Imaging

Innovative Navigation:

When your X Series™ fish finder is integrated with a compatible Minn Kota™ trolling motor, it unlocks a whole suite of navigational tools that work together to keep you on the fish. What your fish finder sees is what your trolling motor does, so you can stay in optimal fishing zones with a tap of your finger.
- Draw & Navigate: Getting to your favorite spot is easier than ever. Just draw a course with your finger and the motor automatically takes you where you want to go. Click here to learn more about Draw & Navigate.
- Intelligent Depth Control ™: Avoid shallow water and protect your equipment—this feature detects depth changes, alerts you immediately, and if necessary, automatically engages Spot-Lock® and deploys your shallow water anchors. Click here to learn more about Intelligent Depth Control.

Seamless, Wireless Integration:

Wireless Connectivity: Minn Kota X Series™ fish finders pair wirelessly with compatible Minn Kota trolling motors and shallow water anchors, so there's no separate cable to run between your fish finder and your trolling motor or anchors. Just a quick pairing step and your system is talking to each other in seconds. Click here to learn more about Wireless Connectivity.
Minn Kota Fishing App Manages You Boat: Manage your boat on or off the water for total command of your Minn Kota fish finder, waypoints, trolling motor, and shallow water anchors right at your fingertips. Sync the app to your fish finder to help you scout, group, sort, and edit waypoints with ease.
Quick Access Controls: Keep your most used fish finder, motor, and anchor controls at the ready through programmable buttons.

Best-in-Class Clarity and Brightness:

See the sharpest images on a high-resolution touchscreen—even in rain, high sun, or when wearing polarized lenses.
Instant Response from you touch screen even in wet conditions.

Minn Kota Maps Included:

Navigate everything from inland lakes to coastal waters with confidence. Minn Kota™ Maps deliver fishing focused detail with up to 1-foot contour accuracy built on the trusted data of LakeMaster®
If you want even more detail to find fish faster, Minn Kota™ Premium Map Cards are also available, offering added detail like aerial imagery to help you find new fishing spots, and shaded relief, which make bottom detail and depth changes easy to spot. Click here to learn more about Minn Kota Maps.

Specifications

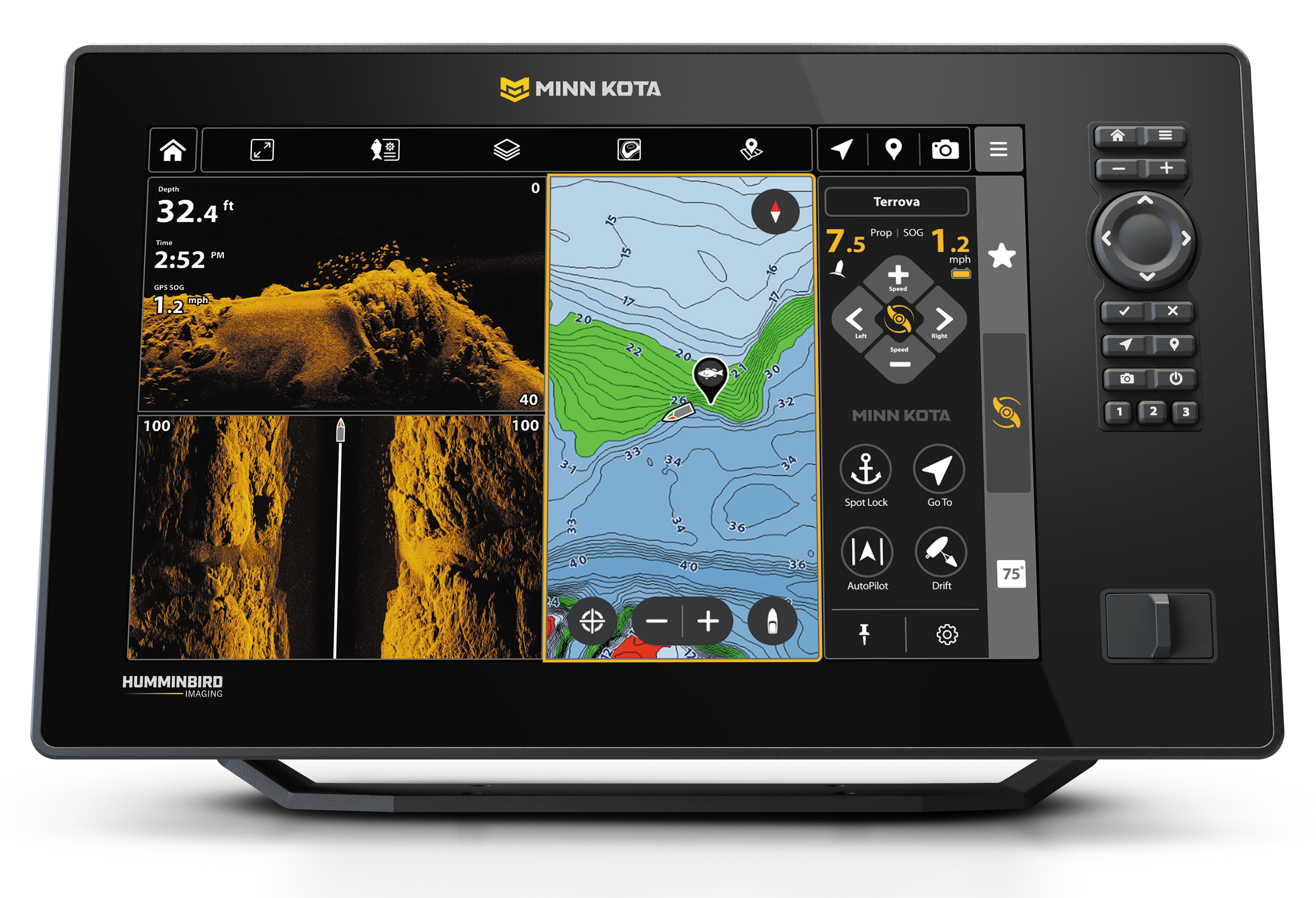

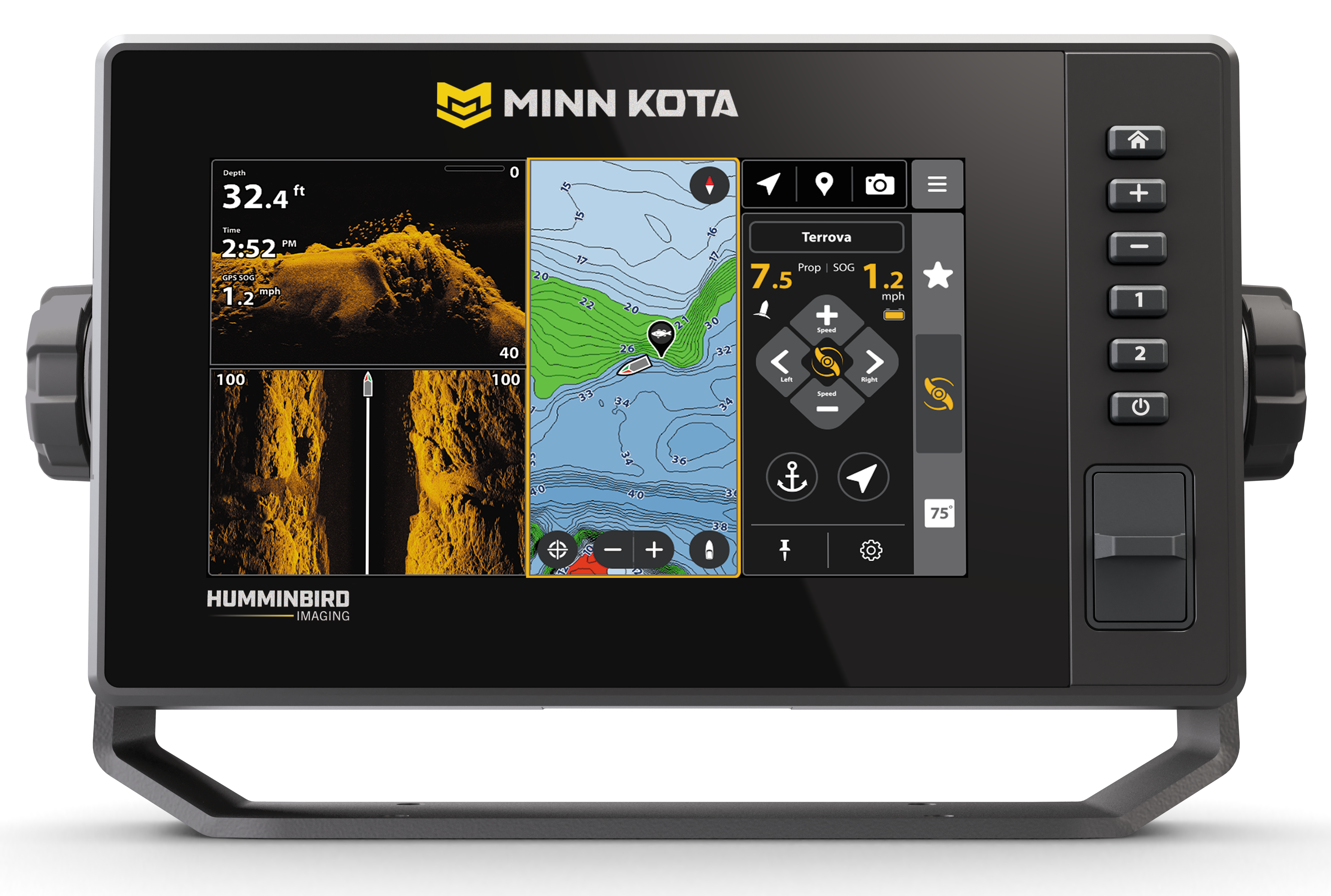

Screen Sizes: Minn Kota X Series™ fish finders come in five sizes, 7”, 9”, 10”, 12” and 16” displays, so you can choose the setup that fits your boat and viewing preference.
