Restoring Digital Depth On-Screen

Updated
If the digital depth measurement field is missing from your fish finder screen, it can typically be restored through the view or overlay settings. Having the depth displayed provides quick, real-time awareness of changing water conditions.


Restoring Digital Depth Field

X Series, APEX, XPLORE, SOLIX G3 5.060 and newer



  1. Have the view missing Digital Depth full screen. This would include Chart View and any sonar view

    NOTE: If only a Mega 360 transducer is connected to the fish finder, Digital Depth can not be displayed.  Mega 360 does not detect depth.

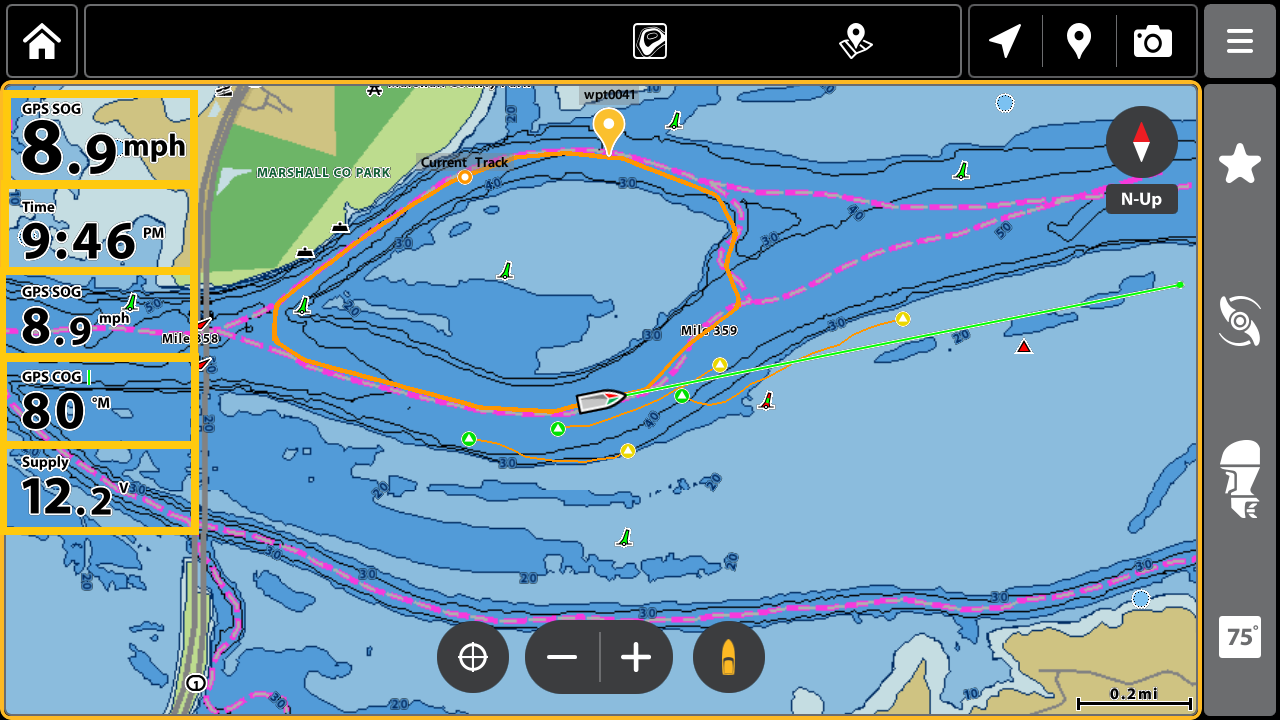

  2. Press and hold on one of the values shown on the left side of the screen that will be changed to Digital Depth.
    Unified 7 Chart View Data Overleay Selected.png

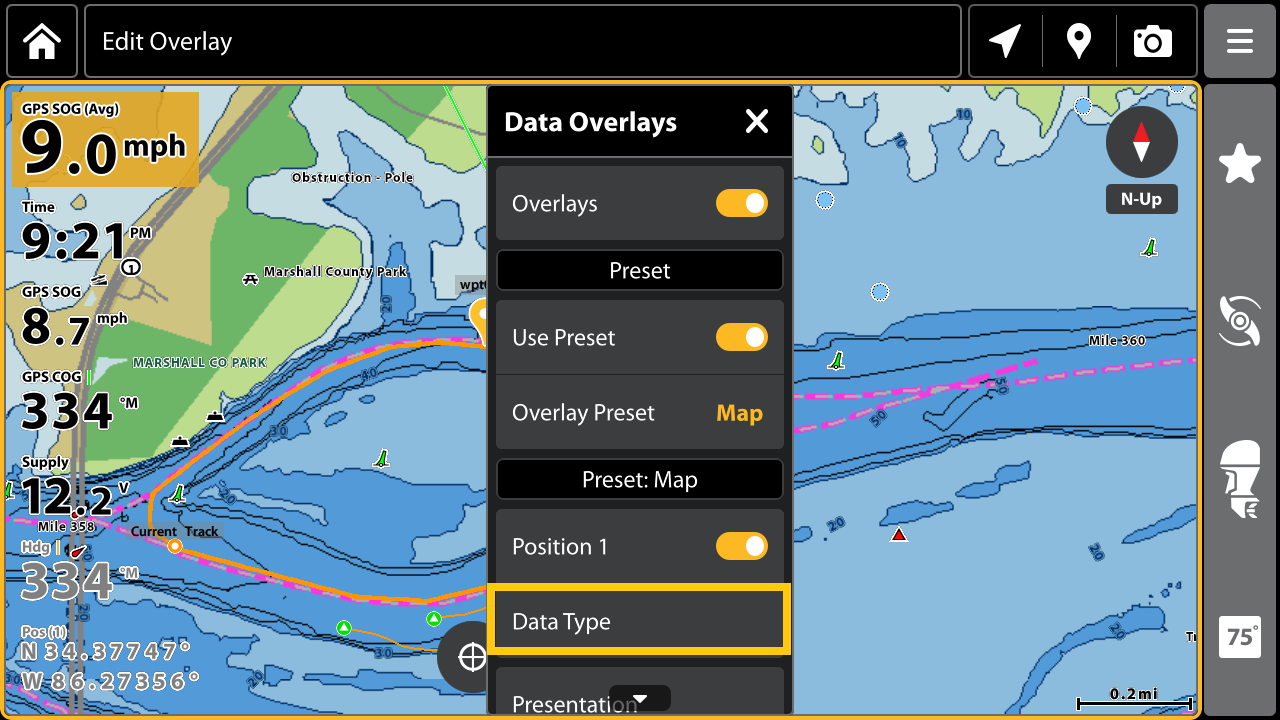

  3. Select Data Type.

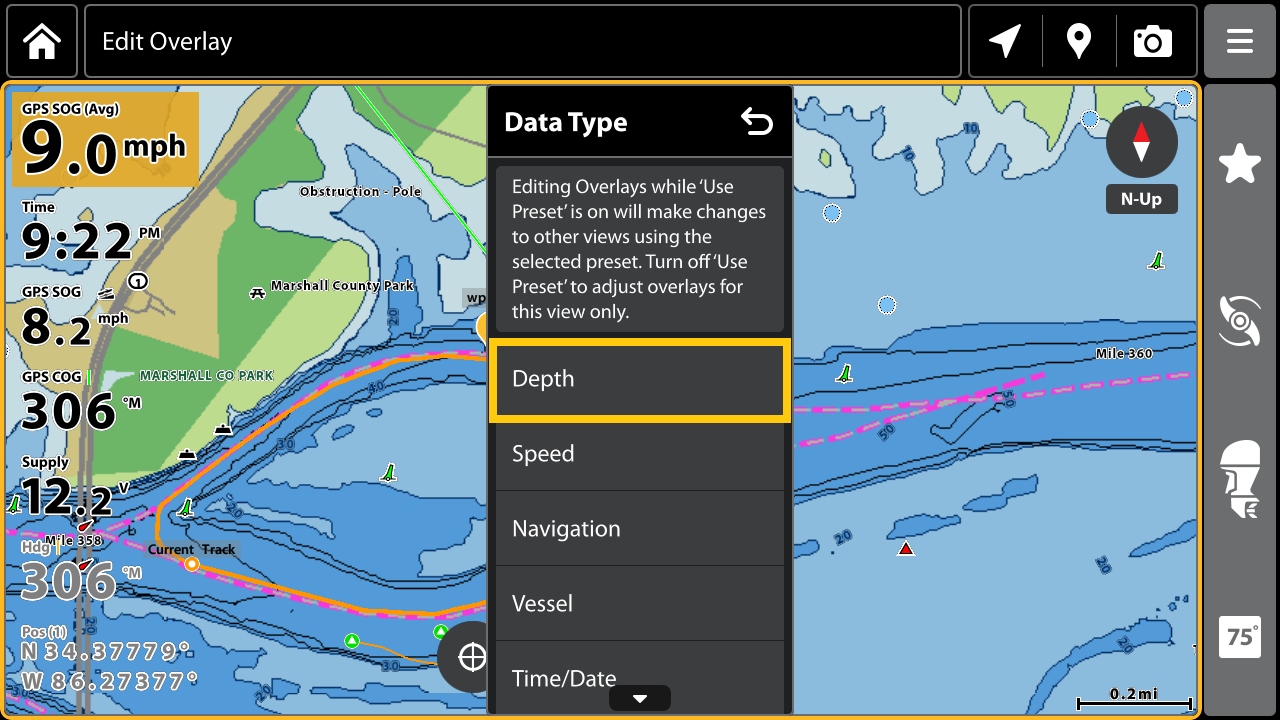

  4. Choose Depth.
    Unified 7 Data Overlay - Choosing Depth.png

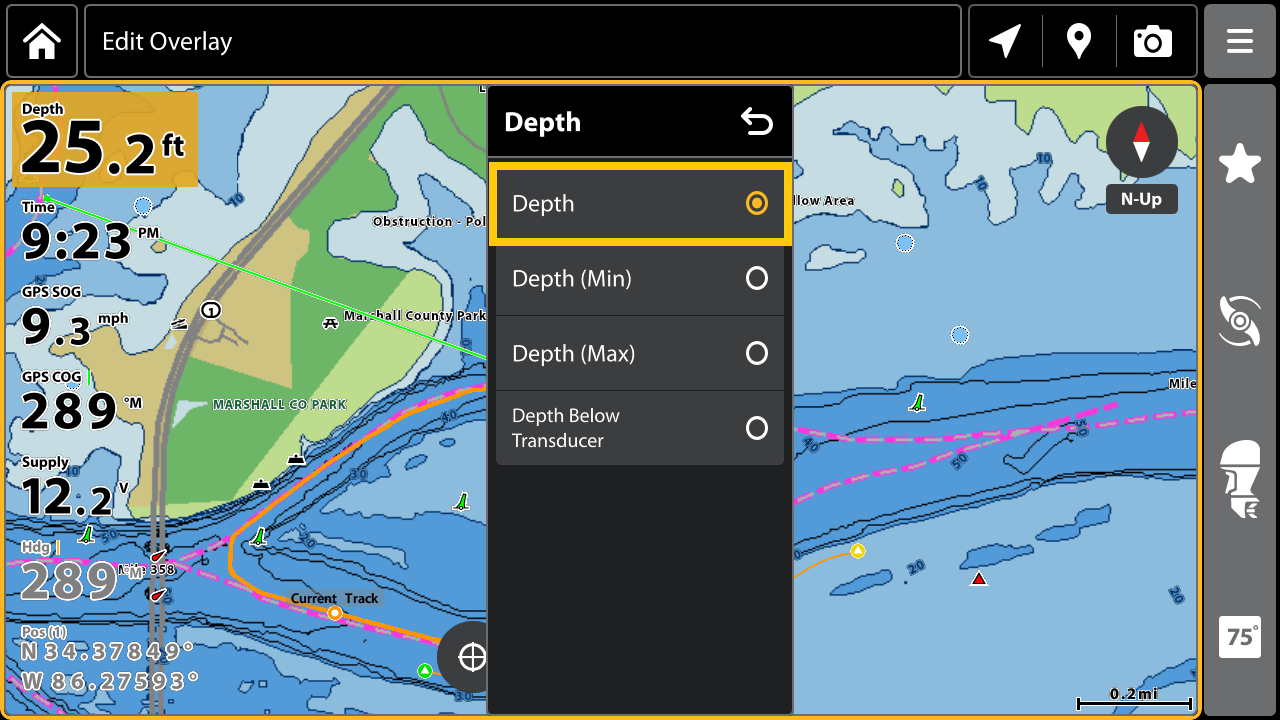

  5. Choose Depth
    Unified 7 Data Overlay - Depth Type.png
HELIX

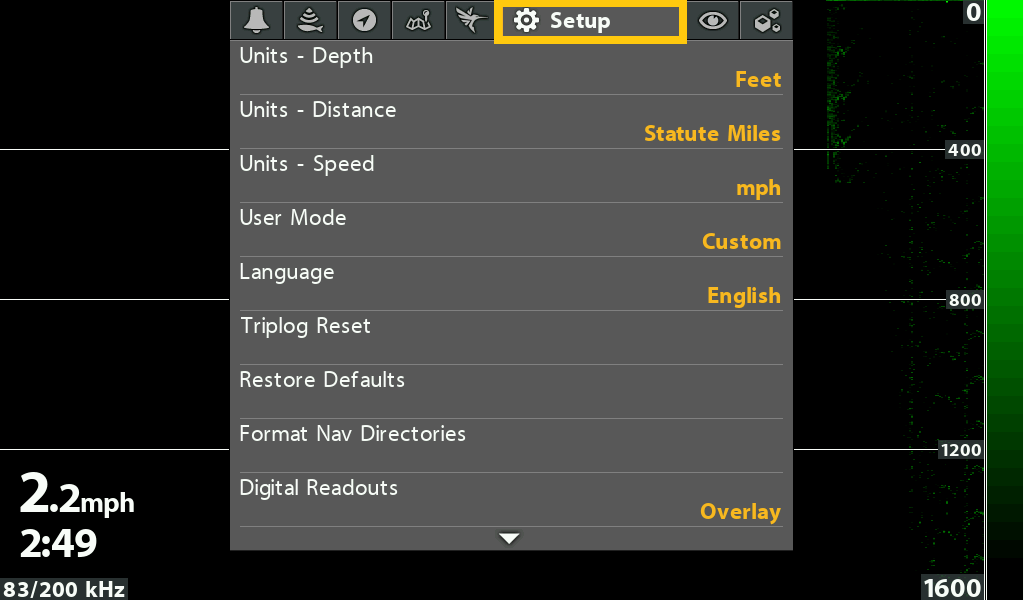

  1. Press Exit Twice and press Menu Twice

  2. Arrow to the Setup tab

    HELIX 2_930 Menu Twice.PNG

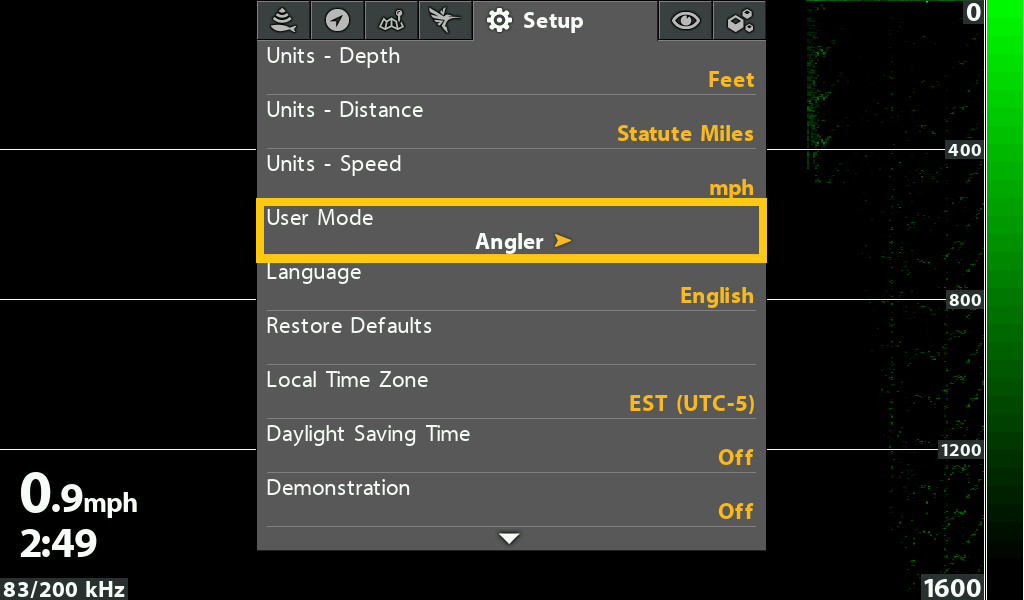

  3. Change User Mode to Custom

    HELIX 2_930 User Mode Angler.PNG

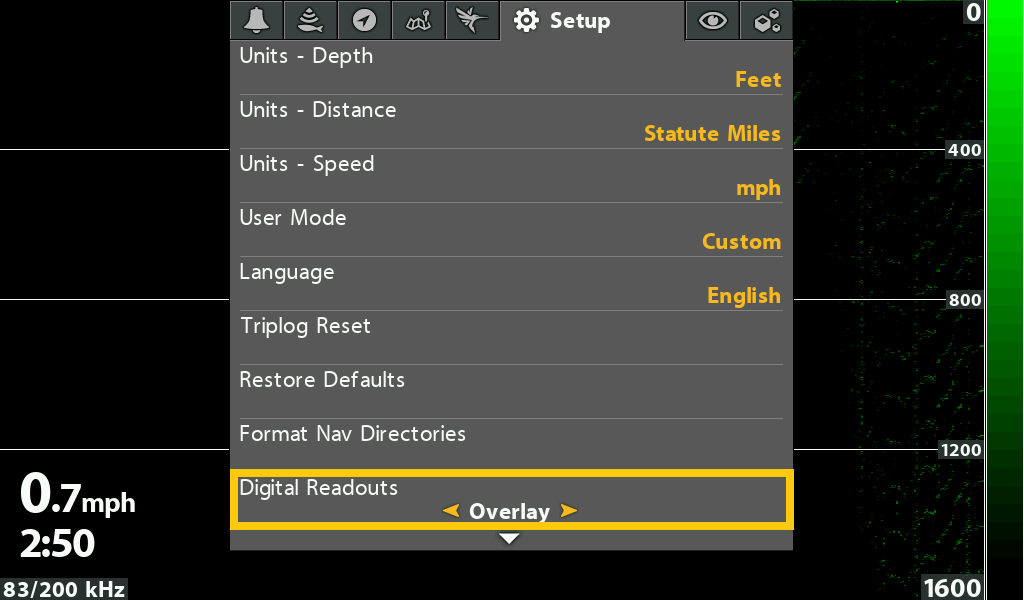

  4. Change Digital Readouts to Overlay

    HELIX 2_930 Digital Readouts.PNG



Missing Digital Depth Value

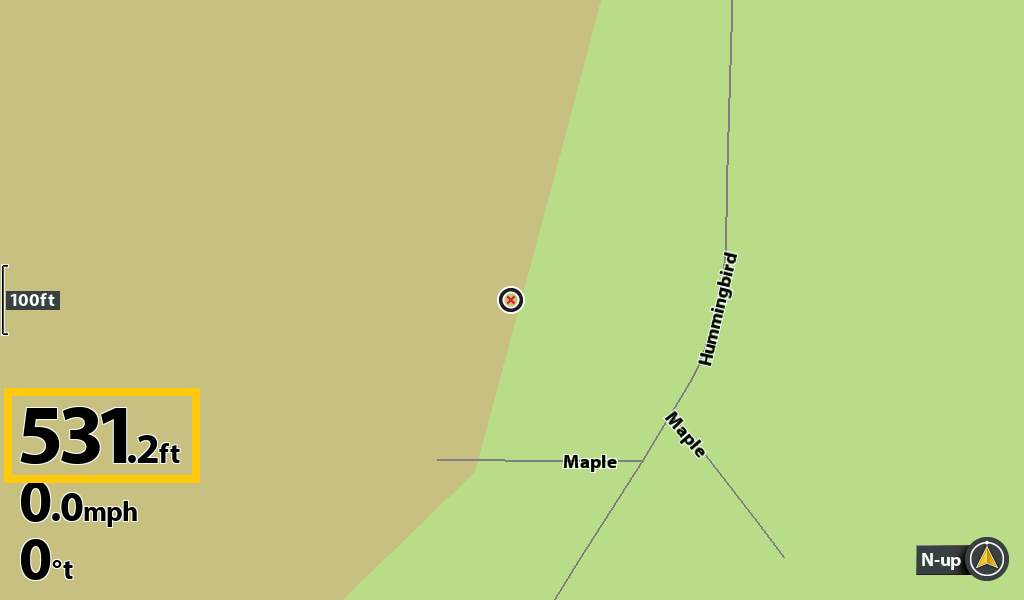

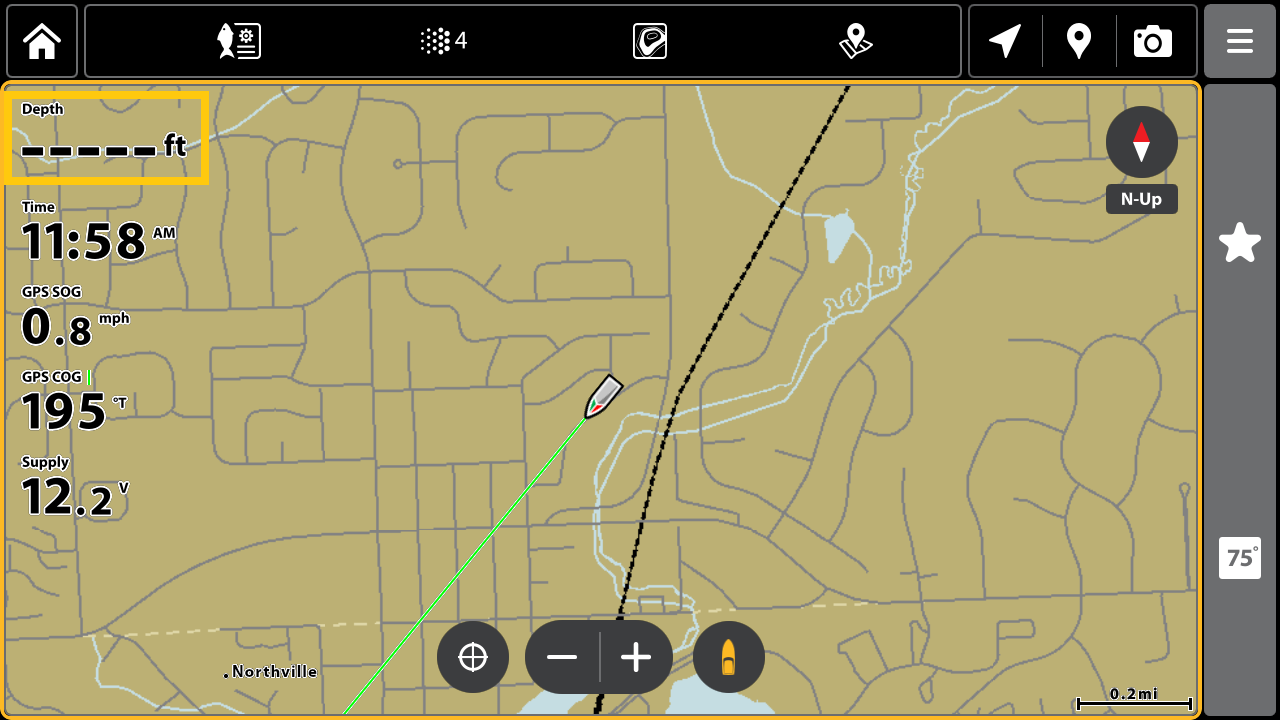

If the Digital Depth box is present, but the value is missing or inaccurate, see Troubleshooting Digital Depth.  Examples can be found below.

X Series, APEX, XPLORE and SOLIX

Helix and Legacy
