Raptor Software Update v2.040

CURRENT VERSION - 2.040

RELEASED DATE - April 12, 2023

Affected Models

• All Bluetooth® enabled Minn Kota Raptor shallow water anchors and compatible wireless remotes.
  Updated Features:

JUMP TO:  New and Updated Features Introduced with Version 2.040 | Important Notes and Prerequisites | Download and Update Instructions | Software Update

New and Updated Features

• Update allows for the Raptor with Bluetooth controller to complete factory and cycle tests without falsely triggering an error state.


Important Notes and Prerequisites

• When updating Raptor(s) software, the Raptor(s) must be powered on and fully retracted.
• The Raptor(s) must be paired and connected to the device being used to update the software.
• When updating Raptor(s) via the Minn Kota Fishing app, the app itself must first be up to date with the most recent software update.
• When updating Raptor(s) via your Humminbird Fish-finder/Combo, you must make sure the fish-finder has the most recent software update.

Download and Updated Instructions

Download and Update with fish finder using WiFi:

1. Power on you fish finder Unit.
2. Select Home.

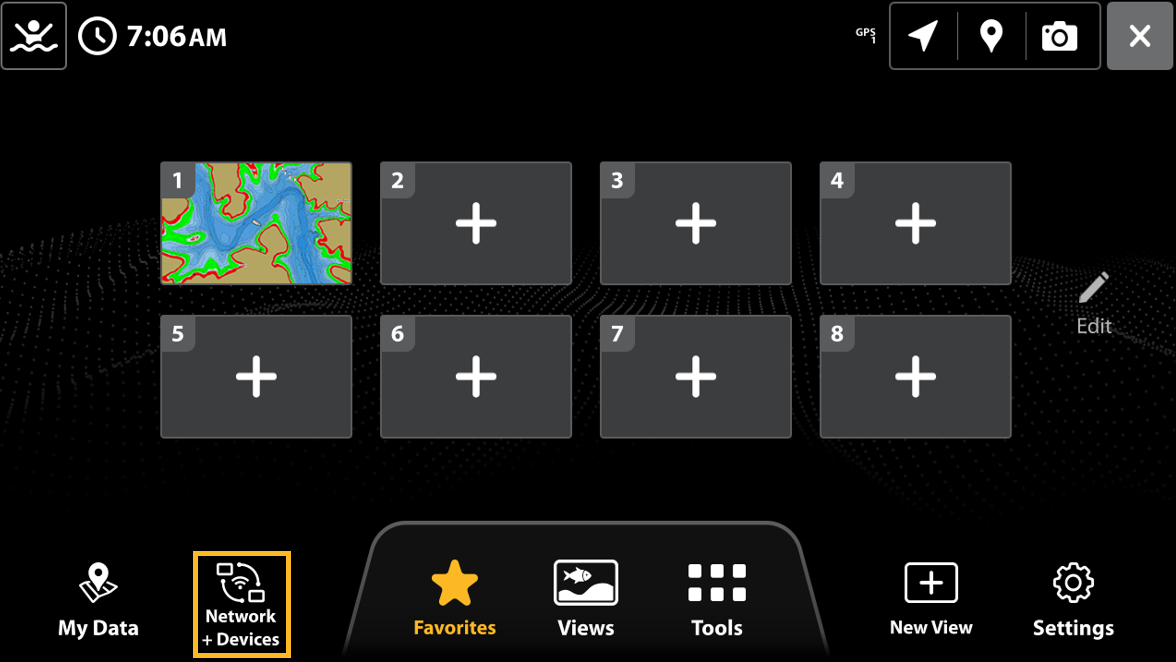

3. Select Network + Devices

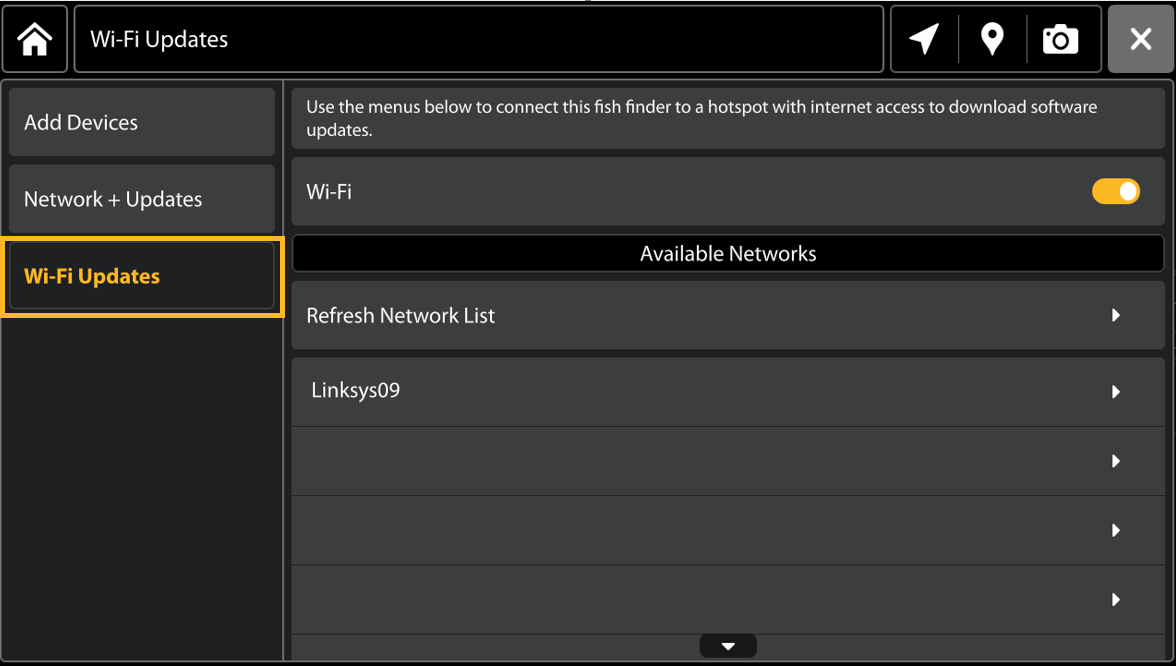

4. Select Wi-Fi Updates, enable Wi-Fi, and choose your wireless network. Enter the network password if required, then connect to proceed with software updates.

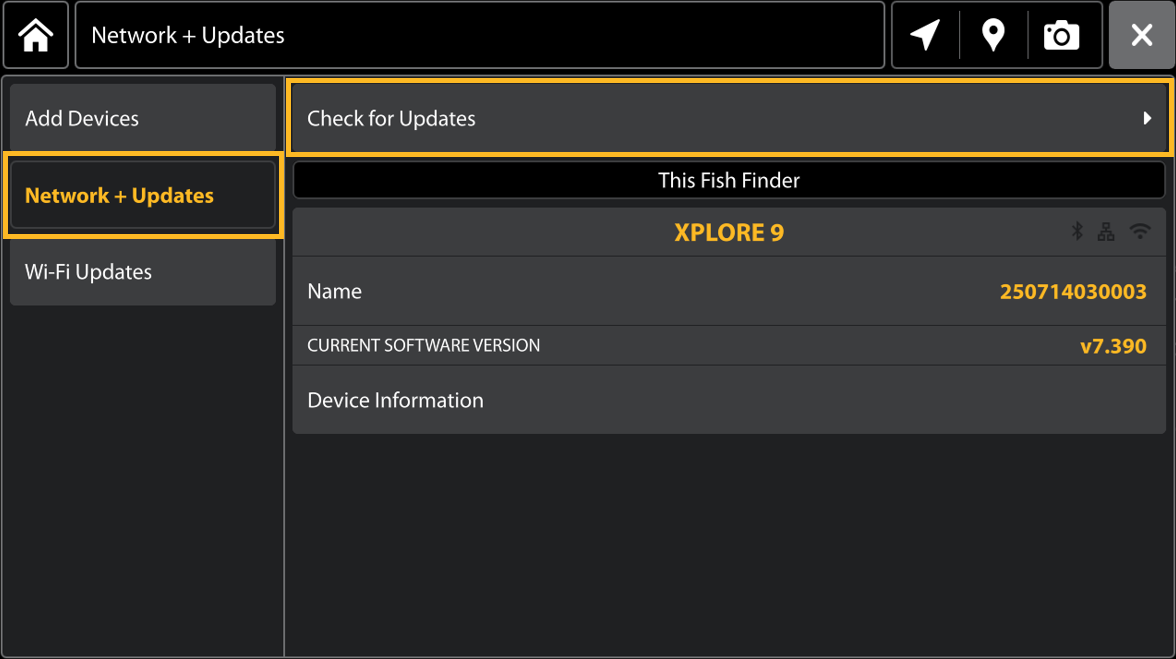

5. Select Network + Updates and then select Check for Updates updated available for all connected devices will display.

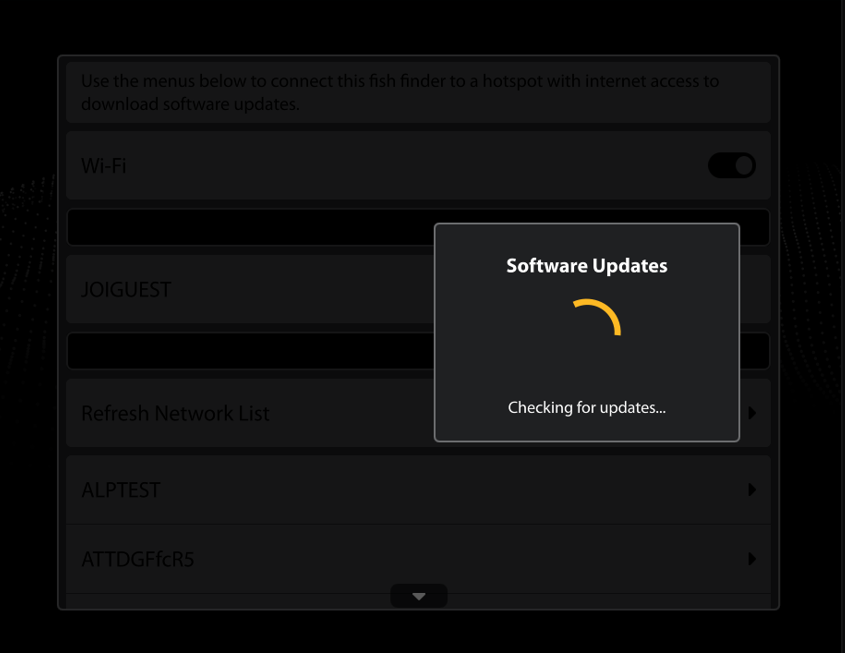

6. Your unit will then check for updates.

7. You will now have the option to select Update All Now to update all networked devices or choose the devices you want to update. Note: We recommend keeping the software on all of your products up to date to ensure optimal performance and access to the latest features.
   •  Click here for a video demonstration of completing software updates over WiFi

Update Software Using the Minn Kota Fishing App

Preparing for the Update

• Before beginning any update, ensure the following criteria are met:
  The Minn Kota Fishing app on your smartphone is up to date.
• (Mobile devices only) Click here to download the Minn Kota Fishing App for iOS: version 6.020
• (Mobile devices only) Click here to download the Minn Kota Fishing App for Android: version 6.010
• The smartphone has Bluetooth enabled.
• The smartphone is paired with the trolling motor.  Follow these instructions to pair the smartphone to the trolling motor.
  • Enable Bluetooth on the smartphone.
    • For Apple iOS - Open the “Settings” menu. Select “Bluetooth”, then select “On”. Keep the Bluetooth menu open and continue to the next procedure.
    • For Google Android - Open the “Settings” menu. Select “Bluetooth”, then select “On”. Keep the Bluetooth menu open and continue to the next procedure. NOTICE: Android devices must press Scan to locate the device in the Bluetooth list.

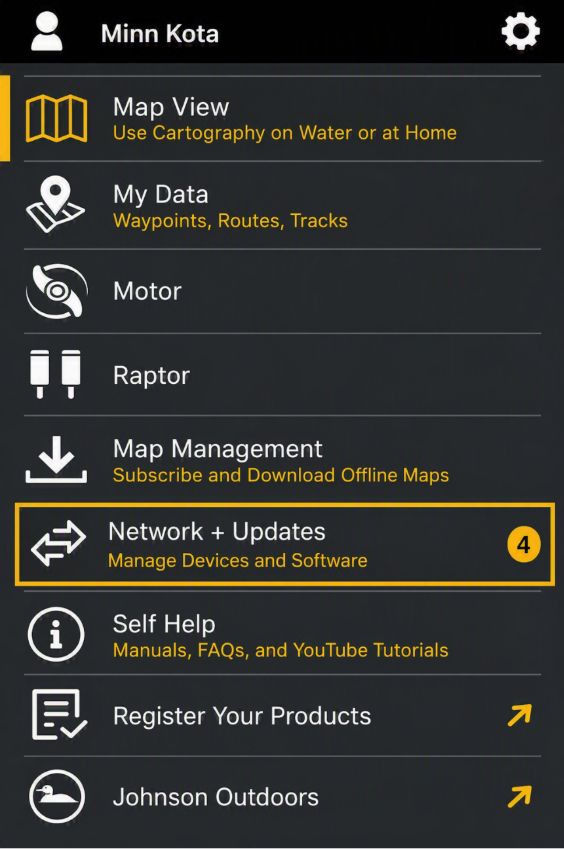

1. Open the Minn Kota Fishing app on the smartphone.

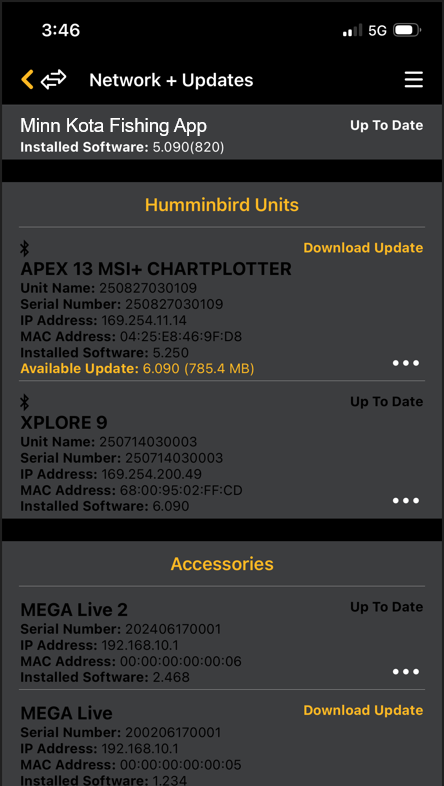

2. Open “Network + Updates” window

3. Once in Network + Updates window, the current “XPLORE 6.090 Package” version will display as “Installed Package” in white text.  New Package version will display as “Available Package” for any integrated fish finders or accessories with available updates with the option to Download Update to the right.

4. Select “Download Update” to the right of Minn Kota Motor 4.0 Package.  This will download the available Package File that includes updated software for all connected trolling motor components to the mobile device.  This process will happen quickly.

Update Software Using an SD Card:

NOTICE! Keep the unit powered on until the update is complete to avoid instability or data loss.

Before you begin: make sure to remove any other card that may be present, such as a LakeMaster, Zero Lines, Navionics, etc., from the unit before initializing the new update.

 Update with Using SD Card:

1. With software update card already in the unit, power on and follow the on-screen prompts to start in Normal Mode.
2. Press the HOME key
3. Tap the Network and Devices icon.

4. Tap Network + Updates.
5. Confirm that the most current version of software is selected from the list. Select Check for Updates

6. Any available updated will be displayed. Software Update
   • Important! Do NOT remove the SD card or power off your fish finder until the software update is complete.

Software Update

• X Series/APEX/XPLORE/SOLIX/ONIX/ION SOFTWARE UPDATE DOWNLOAD v2.040
• HELIX SOFTWARE UPDATE DOWNLOAD v2.020
