Raptor Foot Switch Remote

Raptors are able to be controlled by foot-controlled remotes. The basic information for using the remote is listed below. Click on the links at the bottom of this page for additional information on using the Raptor, using the handheld remote, or wireless stomp switches (optional accessory purchased separately).


Pairing the Raptor Foot Switch

Pairing a Foot Switch to One Raptor

  1. Press and hold the Up button and the Down button on the Foot Switch at the same time until the Anchor Selection LEDs and the Mode LED on the Foot Switch begin to scroll red, green, red and red. Then release them.
  2. Immediately press the Pair button on the Indicator Panel located on the Raptor Pump Assembly. The PAIR/Maintenance LED will begin to flash blue. The Raptor and Foot Switch will go into Pairing Mode for 30 seconds. If a signal with three fast beeps occurs, the Raptor and Foot Switch have successfully paired. If 30 seconds pass while in Pairing Mode and they do not successfully pair, a chirp will sound from the Pump Assembly, signaling that the Pairing has timed out.
  3. If the Pair is unsuccessful, repeat the process.

Pairing a Foot Switch to Two Raptors
In order to Pair a Foot Switch to the Raptor, please be sure to first Pair the Raptors together. When two Raptors are paired together, any Foot Switch that was paired to an individual Raptor will no longer be paired. Please see the "Pairing Two Raptors and Programming the Mounting Location" section of the Raptor Owner's Manual. If the two Raptors are already paired together, a Foot Switch can be paired to either Raptor. When the pairing process is complete, the Foot Switch will be able to control both Raptors.

Clearing Paired Raptors from the Foot Switch
Press and hold the Up button and the Down button on the Foot Switch at the same time until all of the LED's at the top of the Foot Switch begin to scroll. Then release the buttons. The Foot Switch will go into Pairing Mode for 30 seconds. Once Pairing times out all Raptors will be cleared.

Battery

You will need a CR2450 battery for the Raptor Foot Switch.

How to Change the Battery

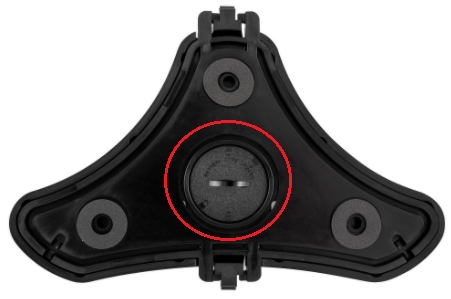

  1. With the back of the Foot Switch facing you, use a large coin to rotate the Battery Cover counterclockwise until the Battery Cover loosens and cannot be turned any further counterclockwise.
  2. Remove the Battery Cover and the old battery. Replace the battery with a new CR2450 coin cell
    battery. Note the proper polarity of the battery. The Positive (+) side of the battery should be facing out.
  3. Ensure the rubber O-ring is properly seated in the underside of the Battery Cover.
  4. Replace the Battery Cover by aligning either of the Unlock icons with the Tabs, and pressing the cover down.
  5. Rotate the Battery Cover clockwise using the large coin until the Lock Icon aligns with the Tabs.

Using the Raptor Foot Switch


  • Auto Up Button
    Single press to auto retract the anchor. Press and hold to continually retract the anchor. The anchor will continue to retract when the button is held until the button is released. Also used to pair the Foot Switch to a Raptor.
  • Auto Down Button
    Double press to auto deploy the anchor. Double press and hold the second press to continually deploy the anchor. The anchor will continue to deploy when the button is held until it reaches its full range of operation or until the button is released. Also used to pair the Foot Switch to a Raptor.
  • Anchor Mode Button
    Single press to display the current Anchor Mode. While the mode is displayed, continue to single press through the Anchor Modes to change them. This will toggle through the Anchor Modes of Standard, Rough Water, Soft Bottom and Auto Bottom. Standard Mode is identified when the Mode LED flashes between red and green. Rough Water mode is identified when the Mode LED flashes red and Soft Bottom when the Mode LED flashes green. Auto Bottom Mode is only available on the Active Anchoring Model and is identified by a Mode LED that flashes slowly from green to green and then red to red. On the Active Anchoring Model, the Anchor Mode button will also enable and disable Active Anchoring. Active Anchoring is engaged and disengaged by a single press and hold. When the Mode LED displays green it is enabled and when the Mode LED displays red it is disabled.
  • Speed Button / Anchor Selection Button
    Single press to display the current operating speed. While the speed is displayed, continue to single press through the operating speed to toggle between slow, medium and fast. The Mode LED will flash red three consecutive times at the speed that corresponds with the selected speed. Pressing and holding the button will toggle the Foot Switch to control either the Port, Starboard or both anchors (when two anchors are paired in the system). The Raptor Selection LEDs will illuminate to correspond to the anchor(s) selected. The right LED will illuminate when the Starboard anchor is selected and the left LED will illuminate when the Port anchor is selected. Both the right and left LEDs illuminate when both anchors are selected.

Deploy the Raptor from the Foot Switch

  1. To auto deploy the Raptor, double press and then release the Down button on the Foot Switch. To continually deploy the Raptor, double press the Down button and hold the second press.
  2. While auto deploying, the action can be paused by pressing the Down button again. While the anchor is continually deploying, the action can be paused on the Foot Switch by releasing the Down Button.
  3. The paused deployment can be resumed by pressing the Down button again in the same manner.
  4. If continuing to deploy the Raptor, and the anchor gets to its full length of travel, it will stop. If auto deploying the anchor, once the deploying anchor gets to its full length of travel or comes in contact with the bottom, it will go through an anchoring sequence determined by the current Mode and then stop.

Retracting the Raptor from the Foot Switch

  1. To auto retract the Raptor, press and then release the Up button on the Foot Switch. To continually retract the Raptor, press and hold the Up button.
  2. While auto retracting, the action can be paused by either pressing the Up button again, or by pressing the Down button. While the anchor is continually retracting, the action can be paused on the Foot Switch by releasing the Up button.
  3. The paused retraction can be resumed by pressing the Up button again in the same manner.
  4. If auto retracting, the anchor will stop when the anchor is fully retracted. If continually retracting the button should be released when the anchor is fully retracted.

Toggle the Anchor Mode from the Foot Switch

  1. Single press the Anchor Mode button to display the current Mode.
  2. While the Mode is displayed via the Mode LED, continue to single press through the Modes to toggle between Standard, Rough Water, Soft Water and Auto Bottom. Standard Mode is identified when the Mode LED flashes between red and green. Rough Water mode is identified when the Mode LED flashes red and Soft Bottom when the Mode LED flashes green. Auto Bottom Mode is only available on the Active Anchoring Model and is identified by a Mode LED that flashes slowly from green to green and then red to red.

Toggle Active Anchoring

Active Anchoring is engaged and disengaged by a single press and hold the Anchor Mode button. When the Mode LED displays three short flashes and then one longer flash of green it is enabled and when the Mode LED displays three short flashes and then one longer flash of red it is disabled.


Select Anchor Operating Speed

  1. Single press the Speed/Anchor Selection button to display the current operating speed. The Mode LED will flash red three consecutive times at the speed that corresponds with the selected speed.
  2. While the speed is displayed via the Mode LED, continue to single press through the operating speed to toggle between slow, medium and fast.

Selecting a Raptor to Operate with the Foot Switch

  1. To toggle the Raptor selected, press and hold the Speed/Anchor Selection button.
  2. When the button is pressed, one or both of the Anchor Selection LEDs will be lit. The Anchor Selection LEDs will illuminate to correspond to the anchor(s) selected. The right LED will illuminate when the Starboard anchor is elected and the left LED will illuminate when the Port anchor is selected. Both the right and left LEDs illuminate when both anchors are selected. Release
    the Speed/Anchor Selection button when the desired Raptor(s) is/are selected.

Range of the Remote

The range of the Raptor Foot Switch Remote is 30 feet. The range of the remote will be greatly reduced if it is used near or mounted to any metal object including aluminum or  steel. It is also recommended that the front end of the remote not be obstructed during use.
