Pairing your Bluetooth i-Pilot Controller

The Bluetooth i-Pilot controller can be paired with the Bluetooth i-Pilot Remote, i-Pilot Phone App (iOS and Android) and the Bluetooth i-Pilot and i-Pilot Link Micro Remote. The Bluetooth i-Pilot has a Pair button. When the button is pressed and held, the Controller will make an audible tone and go into pairing. The Controller will automatically power on when the motor is powered on.

Pairing Bluetooth i-Pilot Remote

  1. Power on your motor
    • Ultrex- Press the power button on the foot pedal.
    • Ulterra and Riptide Ulterra- Press the power button on the base of the motor.
    • Terrova and Riptide Terrova- Press the power button on the base of the motor.
    • PowerDrive and Riptide PowerDrive- Deploy the motor.

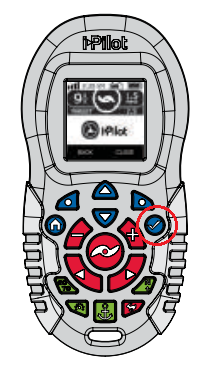

  2. Power on the remote by pressing the OK IP-Ok.pngbutton in the top right corner of the keypad.BT_IP_Remote_OK_Button.png
  3. Press the Home IP-Home.png button.
  4. Use the Menu Up IP-Up.png and Menu Down IP-Down.png buttons to find the System menu at the bottom of the display screen.
  5. Use the Right IP-Right_Select.png Softkey to select the System menu.
  6. Use the Menu Up IP-Up.png and Menu Down IP-Down.png buttons to find the Pair option.

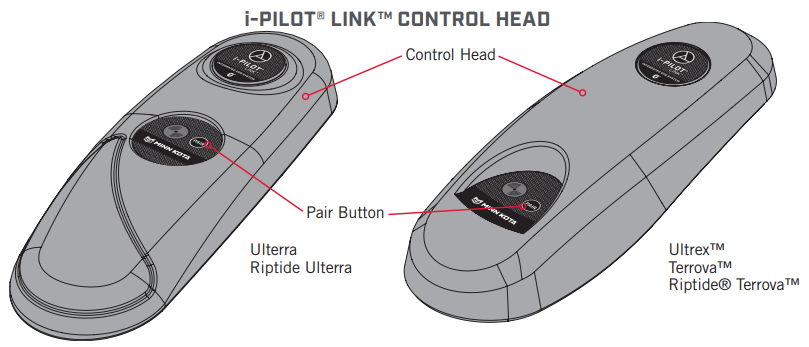

  7. Before selecting the Pair Option, locate the Pair Button on the top of the Control Head. Press and hold the Pair button. A consistent tone will be emitted from the Control Head.BT_IP_Controller_Pair.png
  8. On the remote, use the Ok IP-Ok.png button to select the Pair option from the System menu. The Remote will scan for the motor.
  9. Once successfully paired, 3 longer beeps will be emitted from the Control Head and the remote will be paired.

Pairing to the i-Pilot Phone App (iOS and Android)

  1. Download the i-Pilot app for iOS or i-Pilot app for Android to your phone.
  2. On the device you intend to pair with the i-Pilot controller, turn Bluetooth "on".
  3. Locate the Pair button on the top of your Control Head. The Control Head contains the i-Pilot controller. Press and hold the Pair button. The Control Head will emit a continuous tone.
  4. While the Pair button is being held down, scan for the motor on your device. On the device, select the motor from the list of detected devices.
  5. Once the device is paired with the motor, the Control Head will emit 3 longer beeps. Once you hear the beeps, the motor was successfully paired and you can stop pressing the Pair button.
  6. Once the device is paired with the motor, and they are connected, the buttons on the Home screen will be blue. If they are not communicating, the buttons will stay deactivated.mceclip0.png

Pairing to the Bluetooth i-Pilot and i-Pilot Link Micro Remote

  1. Power on your motor
    • Ultrex- Press the power button on the foot pedal.
    • Ulterra and Riptide Ulterra- Press the power button on the base of the motor.
    • Terrova and Riptide Terrova- Press the power button on the base of the motor.
    • PowerDrive and Riptide PowerDrive- Deploy the motor.
  2. Locate the Pair Button at the top of the Control Head.
  3. Push and hold the Pair Button down. A consistent tone will be emitted from the Control Head.
  4. While holding the Pair Button on the Control Head, push and hold the High Speed Bypass and AutoPilot keys on the remote simultaneously.
  5. Once successfully paired, 3 longer beeps will be emitted from the Control Head and the remote will be paired.
