Using the One-Boat Network App to Control your Bluetooth Raptor (2020-present)

The One-Boat Network App can be used to control your Minn Kota shallow water anchor. The Anchor Application is dynamic and will change depending on if you are connected to a Talon or Raptor shallow water anchor. You must first select your shallow water anchor source.

Pair the Mobile Device to the Raptor

Once you have signed in to the One-Boat Network App, the app will walk you through connecting your mobile device to your Humminbird and Minn Kota devices.

  1. Enable Bluetooth on the Mobile Device
  2. Open the Settings menu.
  3. Select Bluetooth.
  4. Select On.
  5. Keep the Bluetooth menu open and proceed to the next procedure.
    • Single Raptor
      • Apple iOS
        1. Enable Pairing Mode on the Raptor by pressing the Pair button on the Raptor. The Raptor will illuminate a blue light to indicate pair mode is active.
        2. Navigate to the Bluetooth Settings on your mobile device.
        3. Select BT Raptor under the Other Devices. It may take a moment for the Raptor to appear in the menu. Once your Raptor is paired with your device, BT Raptor will display under My Devices in the iOS Bluetooth settings.
      • Android
        1. Enable Pairing Mode on the Raptor by pressing the Pair button on the Raptor. The Raptor will illuminate a blue light to indicate pair mode is active.
        2. Navigate to the Bluetooth Settings on your mobile device. Select the Scan button to begin the search for your device.
        3. Select BT Raptor under Available devices. It may take a moment for the Raptor to appear in the menu. Once your Raptor is paired with your device, BT Raptor will display under Paired devices in the Android Bluetooth Settings.
    • Dual Raptors

      If you are connecting dual Raptors, the Raptors must be paired together before connecting them to your mobile device. Use the following instructions to pair the Raptors together, then follow the instructions for the single Raptor to pair it to your mobile device.

      1. Place one Raptor in Pairing Mode: Press the Pair button on the Raptor. The blue pair light will illuminate to indicate pair mode
        is active.
      2.  Place second Raptor in Pairing Mode: Press the Pair button on the second Raptor. The blue pair light will illuminate to indicate pair mode is active.
      3. Both Raptors will beep three times once they are connected, and then both Raptor mode lights will flash green.
      4. On the starboard Raptor, press the Up button to set that Raptor as starboard. The starboard Raptor’s mode light will temporarily illuminate green and the port Raptor’s mode light will illuminate red to indicate that the Raptor positions are set.

Select Anchor Source

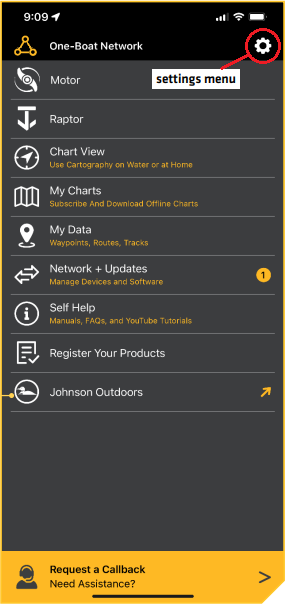

  1. Tap the Settings icon under the One-Boat Network banner at the top right of the app.

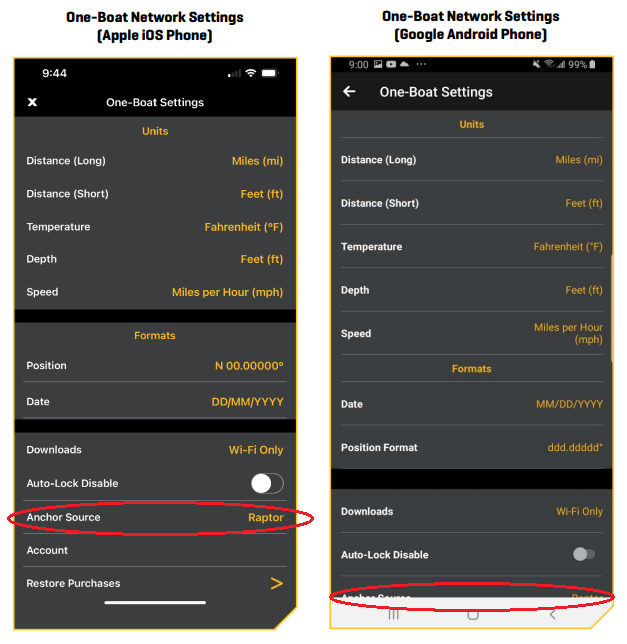

  2. Select Anchor Source.
    Select Anchor Source.png

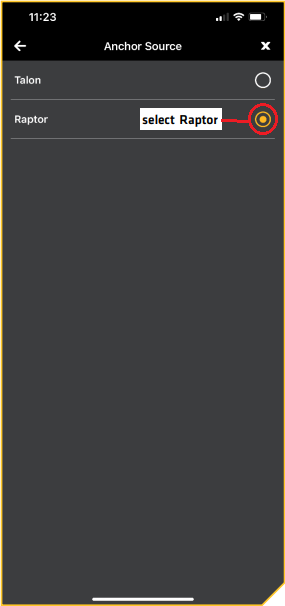

  3. Tap the radio button for Raptor.
    Anchor Source Raptor.png

Raptor One-Boat Network App Buttons

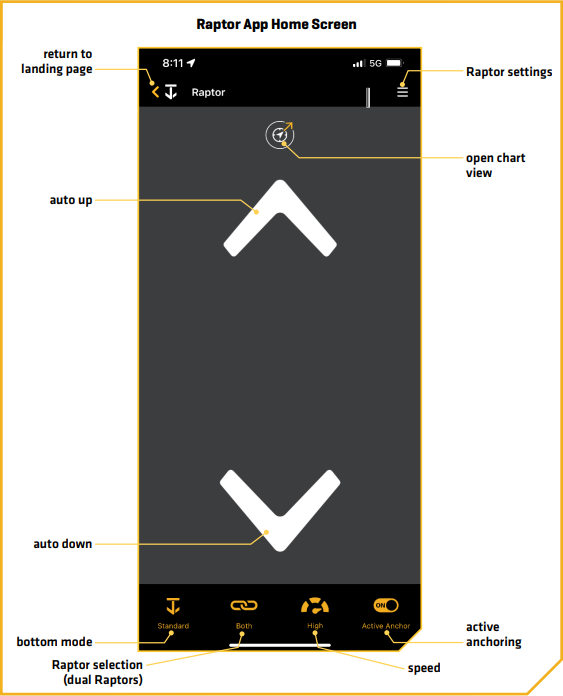

The One-Boat Network App allows you to control and update the Raptor from your paired mobile device.Raptor App home screen.png

Deploy: Double tap the Auto Down button.
Pause: While the anchor is deploying or retracting, tap the Pause button once. Tap the Auto Down button again to resume deployment, or tap the Auto Up button again to resume retraction.
Retract: Tap the Auto Up button once.

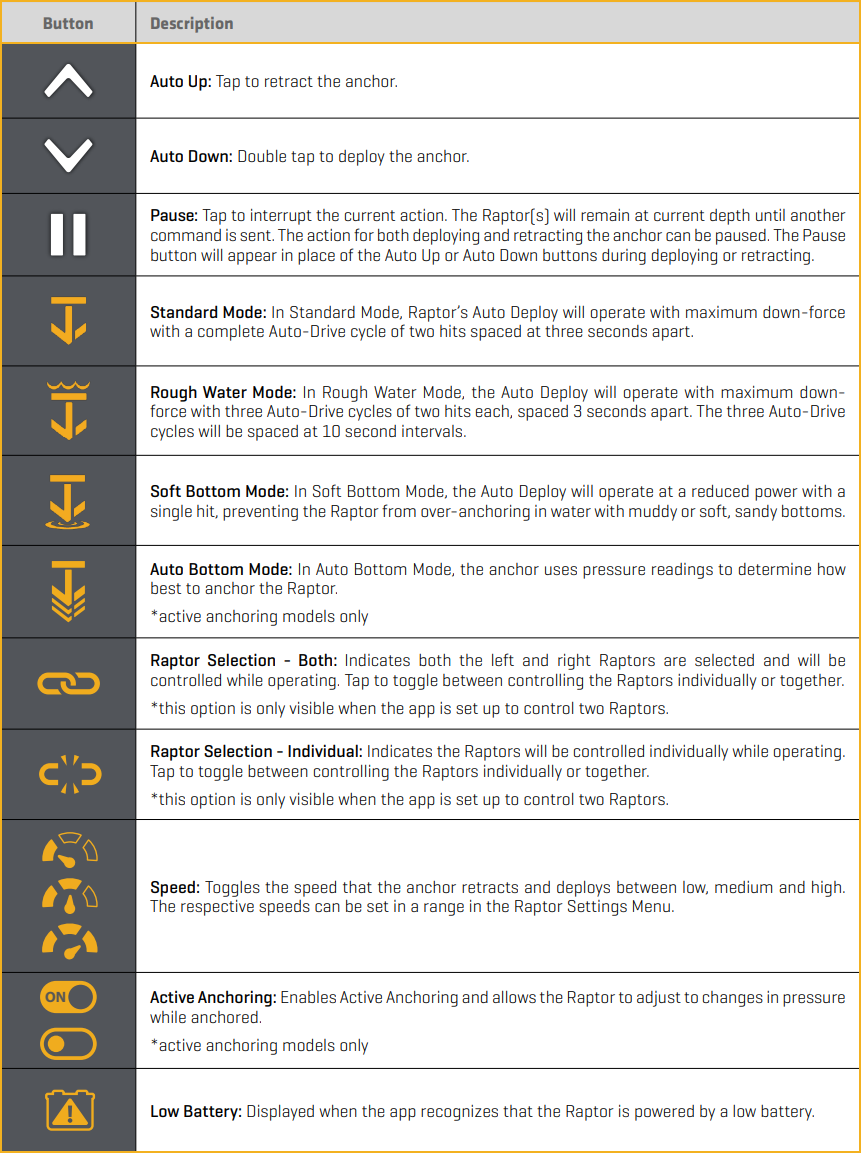

Raptor OBA buttons.png

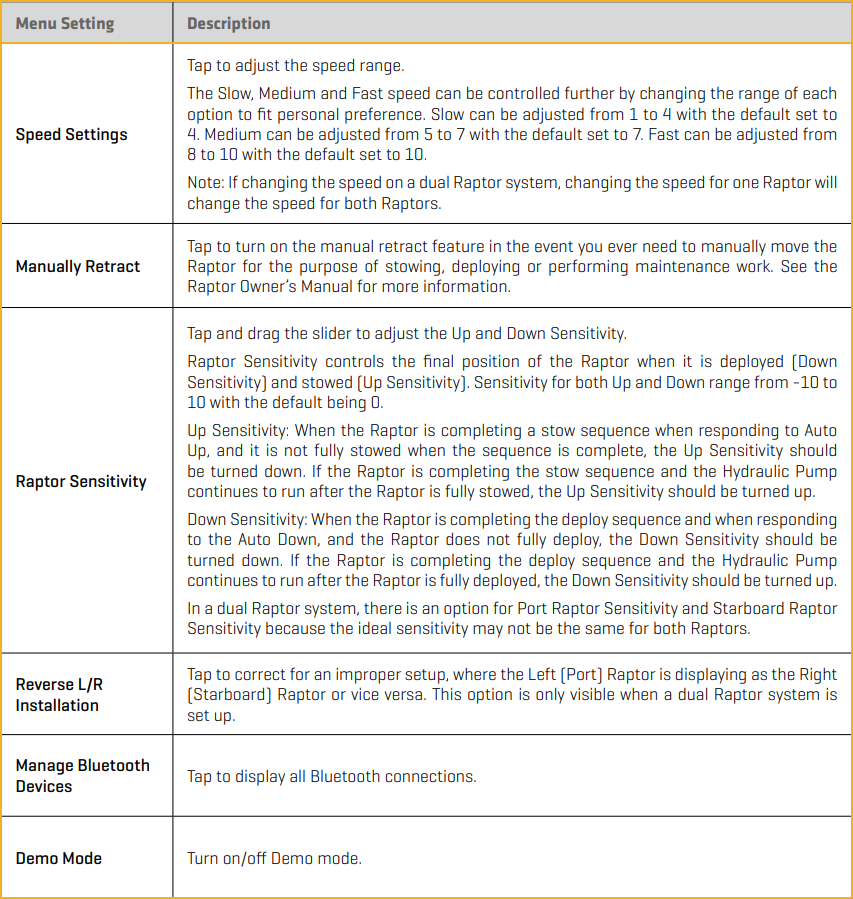

Customizing the Raptor Settings with the One-Boat Network App
Raptor OBA settings.png
