Get the power of a gasoline outboard without the noise and fumes. Perfect for gasoline-restricted lakes, E-Drive features 2 HP of muscle to move a full-size pontoon up to 5 mph on a single charge.
Jump to:
- Features
- Bracket Features
- Transporting E-Drive
- E-Drive Throttle Assembly Features
- LCD Assembly
- E-Drive Tilt Gauge
- Transom Bracket Mounting Diagram
- Throttle Mounting Diagram
- Manuals

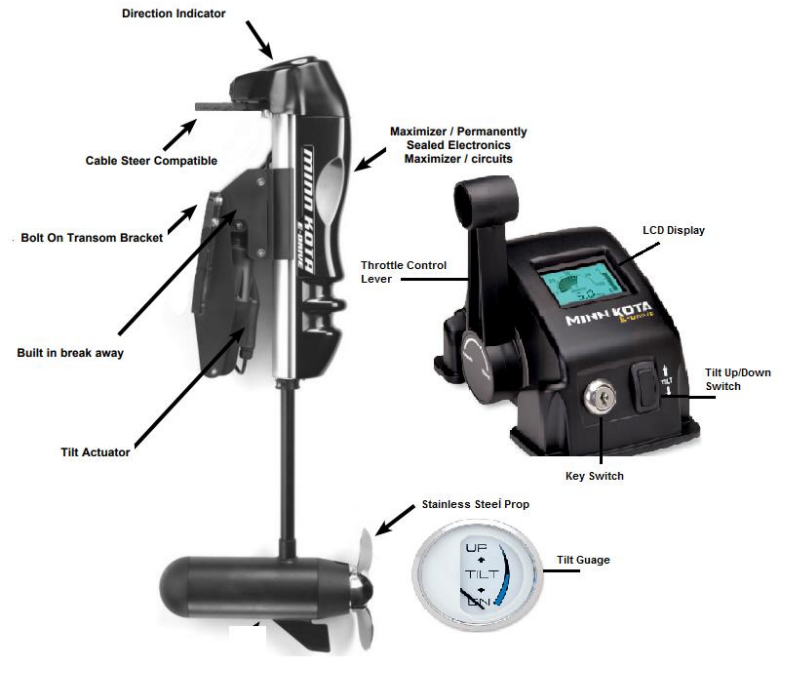

Features
- Electric 2 HP (Horsepower) Outboard, that is 48 volts, designed for Pontoon Boats.
- Transom mounted
- Available for Freshwater ONLY
- Electronic Throttle Control & Outboard Cable Linkage that connects to existing throttle linkage and steering.
- Stainless Steel Prop
- No foot pedal, no wireless remote options and no built-in sonar

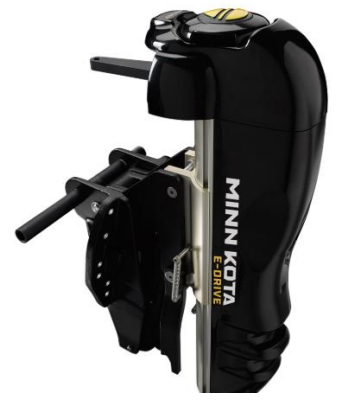

Bracket Features
- Large bolt on Transom Bracket
- Built-in Break Away System while moving, if the motor contacts an underwater obstruction, the breakaway system will release and allow the motor unit to swing up and over the obstruction. The breakaway system will automatically reset.

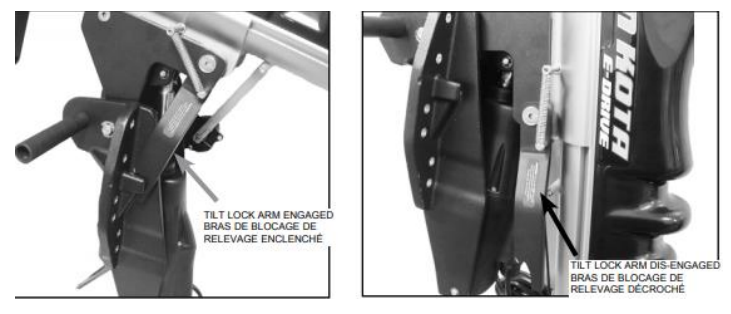

Transporting E-Drive
There is a tilt lock arm that MUST be engaged when transport, if it is not used it can damage the lift actuator and void warranty.
E-Drive Throttle Assembly Features
The Throttle Assembly is used to control all the functions of the EDRIVE. Controls, speed, direction, tilting, and power. This connects to the main control board on the EDRIVE unit with a long throttle cable.
-
Throttle Control Lever
Has forward, neutral, and reverse position. The further forward you push the lever it will increase the speed forward. Straight up is the Neutral position and the further you pull it back the more it will increase your speed in reverse. -
Tilt-up/down Switch
Allows the motor to be tilted up or down -
Master on/off key switch
Turns the system on and off

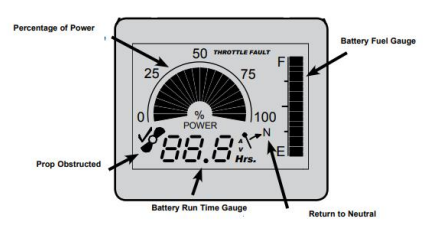

LCD Assembly
All the information is displayed on the LCD Screen.
-
Percentage of Power Icon
Provides a visual indication of the motor percentage of power/speed settings. -
Battery Run Time Gauge
Real-time battery gauge. It will display hours of remaining run time at the current speed settings. The motor does not need to be running for the gauge to display. This gauge is only accurate with 4 series wired Group 27, 105 amp-hour rated deep cycle marine battery. Key has to be on for this to be displayed -
Prop Obstruction
Will appear if the prop is stalled or obstructed. -
Throttle Fault
Return throttle to neutral and it should reset this message. -
“N” Icon
Will display if the unit is turned on while the throttle lever is not in the neutral position -
Battery Fuel Gauge
Visual indication of battery power remaining.
E-Drive Tilt Gauge
Provides instant readout of motor position.

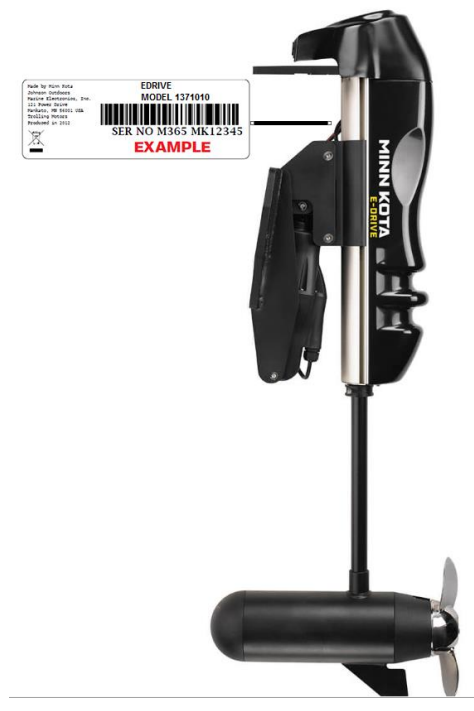

Serial Number Location
The serial number is located on the extrusion, near the bracket.
