This article gives an overview of Dual Spectrum CHIRP adapter cables available.
Jump to:
- Dual Spectrum CHIRP (DSC) Compatibility
- Adapter Cables
- MI Adapter Cable / MKR-MI-1 (HB HELIX 8-15ld separately)
- DSC Adapter Cable / MKR-DSC-10 LOWRANCE 7-PIN
- DSC Adapter Cable / MKR-DSC-15 LOWRANCE 8-PIN
- DSC Adapter Cable / MKR-DSC-16 LOWRANCE 9-PIN
- DSC Adapter Cable / MKR-DSC-12 GARMIN 4-PIN
- DSC Adapter Cable / MKR-DSC-14 GARMIN 8-PIN
- Resources
Dual Spectrum CHIRP (DSC) Compatibility
Click here for Dual Spectrum CHIRP (DSC) Compatibility
DSC Adapter Cables

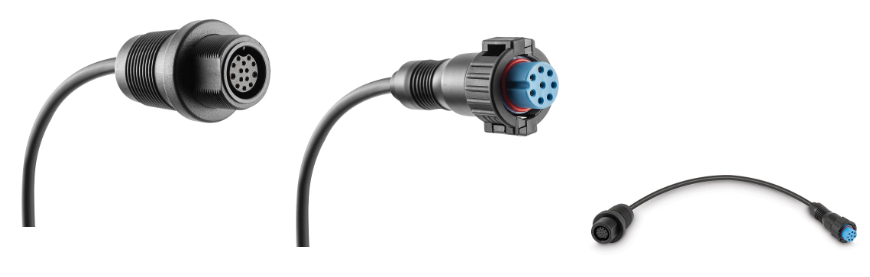

MI Adapter Cable / MKR-MI-1 (HB HELIX 8-15ld separately)
- Item Number 1852088
MKR-MI-1 – Humminbird 7-Pin Adapter Cable
- All motors with Built-In Dual Spectrum Chirp come new with all necessary adapters and cabling for all current Humminbird fish finders, this 7 pin adapter cable can be used as a replacement or addition.
- Connects select Humminbird 7-Pin transducer port models
- Select Humminbird HELIX models with 7-Pin configurations (must be Generation 2 or newer)
- Humminbird APEX, SOLIX, and XPLORE models are compatible with Built-In Dual Spectrum Chirp without the need for an adapter.

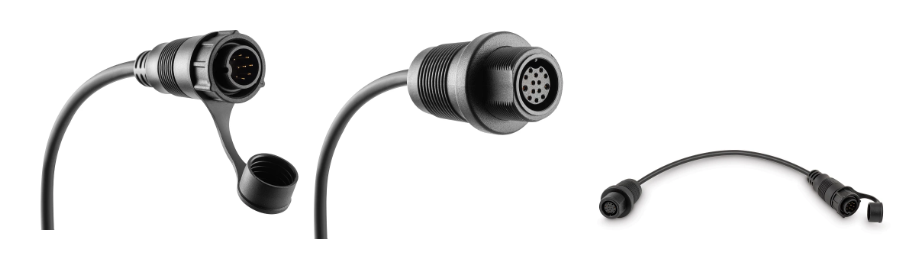

DSC Adapter Cable / MKR-DSC-10 LOWRANCE 7-PIN
- Item Number 1852077
MKR-DSC-10 – Lowrance 7-Pin Adapter Cable
- Connects select Lowrance 7-Pin transducer port model
- Select HDS and Hook models with 7-pin configurations

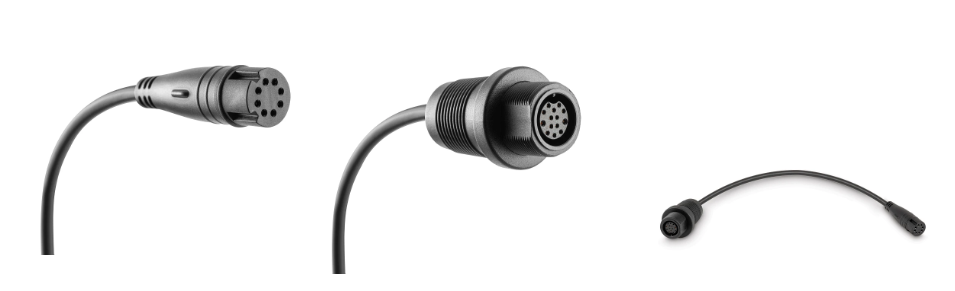

DSC Adapter Cable / MKR-DSC-15 LOWRANCE 8-PIN
- Item Number 1852078
MKR-DSC-15 – Lowrance 8-Pin Adapter Cable
- Connects select Lowrance 8-Pin Triple Shot transducer port models
- Select Hook 2, Hook Reveal models with 8-pin configurations
DSC Adapter Cable / MKR-DSC-16 LOWRANCE 9-PIN
- Item Number 1852079
MKR-DSC-16 – Lowrance 9-Pin Adapter Cable
- Connects select Lowrance 9-Pin Total Scan transducer port models
- Select HDS Live, Elite FS, Elite Ti models with 9-pin configurations
DSC Adapter Cable / MKR-DSC-12 GARMIN 4-PIN
- Item Number 1852081
MKR-DSC-12 – Garmin 4-Pin Adapter Cable
- Connects select Garmin 4-Pin transducer port models
- Select Echo, EchoMAP, EchoMAP CHIRP Striker, Striker Plus, Striker Vivid models with 4-pin configurations
DSC Adapter Cable / MKR-DSC-14 GARMIN 8-PIN
- Item Number 1852081
MKR-DSC-14 – Garmin 8-Pin Adapter Cable
- Connects select Garmin 8-Pin transducer port models
- Select EchoMAP, EchoMAP CHIRP, EchoMAP Ultra, GPSMAP models with 8-pin configurations
- Select Garmin head units also require Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID - Garmin part number 010-12122-10, sold separately
