This article provides an overview of Accessory, Networking with Humminbird, and GPS Technology Compatibility (includes :Spot-Lock, AutoPilot, Record Tracks). This includes resources for current and legacy GPS Technologies: Advanced GPS Navigation, i-Pilot BT, i-Pilot Link BT, Legacy i-Pilot, Legacy i-Pilot Link, and Spot-Lock.
The guide below will assist you in determining compatibility when purchasing products and accessories.
Jump to:
- Quick Release Bracket Compatibility
- Remote Compatibility
- Upgrade Kits for GPS Navigation and Remote Control and Compatibility

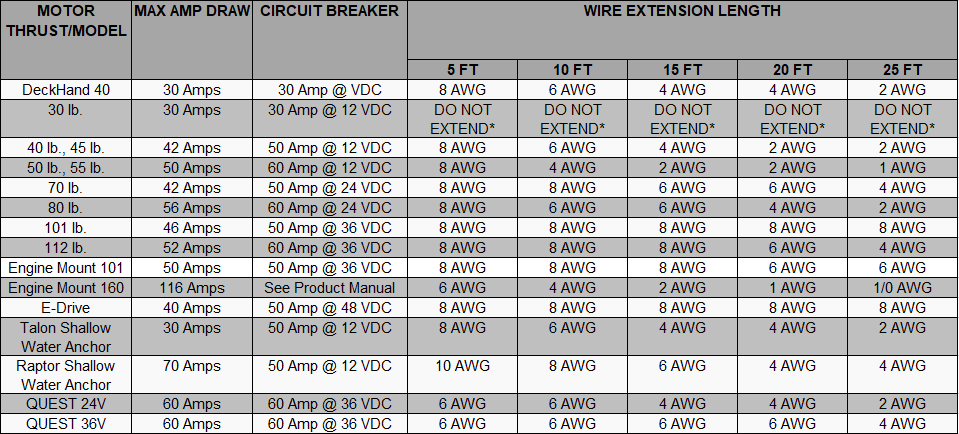

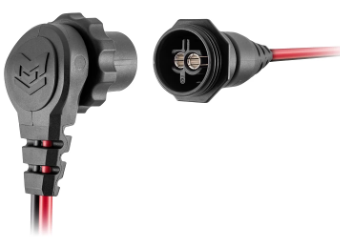

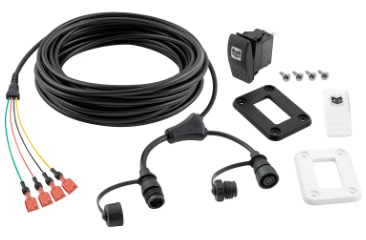

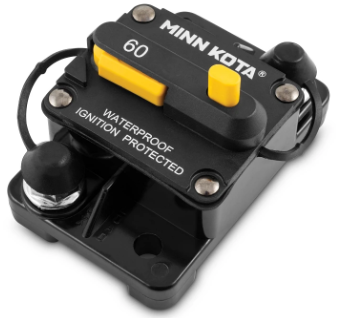

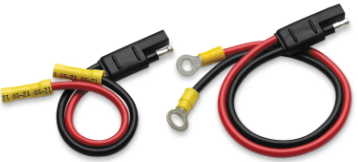

- Power Accessories Circuit Breaker, Quick Disconnect, and Plug and Receptacle

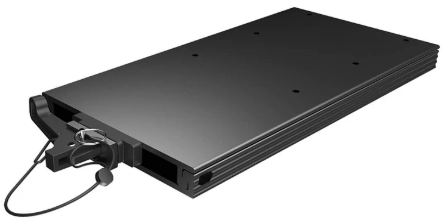

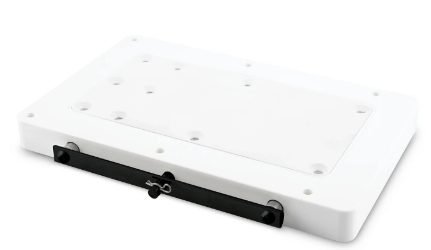

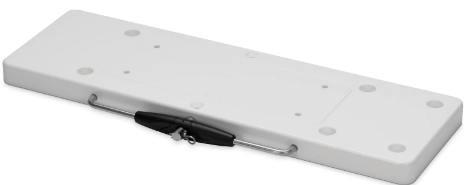

Quick Release Bracket Compatibility
QUEST Compatible Quick Release Brackets
Terrova QUEST and Riptide Terrova QUEST Compatible Quick Release Brackets |
||
|

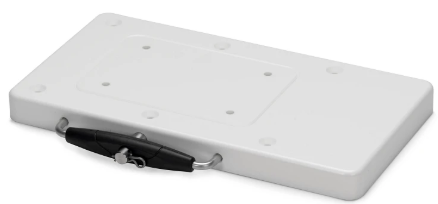

RTA-55 Bracket Material: Composite Use in Fresh or Saltwater |
MKA-56 Bracket Material: Composite Use in Fresh or Saltwater |

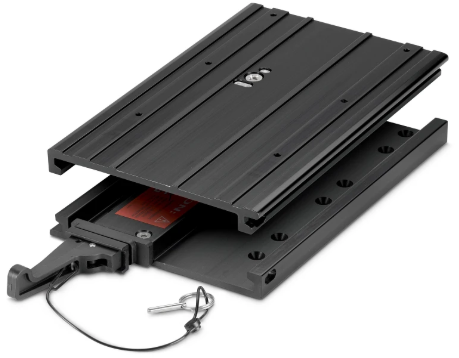

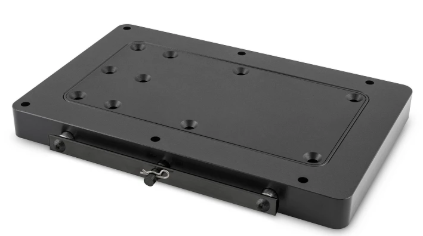

MKA-57 Bracket Material: Aluminum Use in Fresh or Saltwater MKA-57 top plate allows you to easily slide the motor inboard 10" |
|

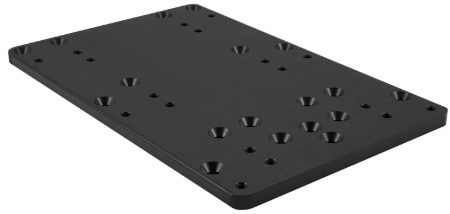

MKA-58 Deck Reinforcement Kit Use in Fresh or Saltwater MKA-58 Provides additional strength and stability for mounting Minn Kota QUEST series trolling motors in combination with MKA-56 / RTA-55 |
||
Ulterra QUEST and Riptide Instinct QUEST Compatible Quick Release Brackets |
||
|
RTA-55 Bracket Material: Composite Use in Fresh or Saltwater |
MKA-56 Bracket Material: Composite Use in Fresh or Saltwater |
MKA-57 Bracket Material: Aluminum Use in Fresh or Saltwater |
|
MKA-58 Deck Reinforcement Kit Use in Fresh or Saltwater MKA-58 Provides additional strength and stability for mounting Minn Kota QUEST series trolling motors in combination with MKA-56 / RTA-55 |
||
Ultrex and Ultrex QUEST Compatible Quick Release Brackets |
|
|
MKA-61
Fits foot control motors with up to 45" shaft and hand control motors with up to 52" shaft. Bracket Material: Solid, anodized aluminum construction MKA-61 and MKA-62 Installation Instructions
|
MKA-62
Fits 52" to 72" shaft, foot-control motors and 62" shaft, hand-control motors. Bracket Material: Solid, anodized aluminum construction |
Non-QUEST Freshwater Electric Steer Compatible Brackets
| Freshwater PowerDrive Compatible Composite Brackets | |||
|
MKA-21 Bracket Material: Composite Note: Not for motors with over 80 lbs or thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility PowerDrive All Thrust Sizes and Shaft Lengths |
MKA-64 Bracket Material: Composite Note: Designed for motors with over 80 lbs of thrust or shaft lengths 72" or longer not including QUEST Motor Compatibility PowerDrive All Thrust Sizes and Shaft Lengths |
RTA-17 Bracket Material: Composite Note: Not for motors with over 80 lbs or thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility PowerDrive All Thrust Sizes and Shaft Lengths |
RTA-62 Bracket Material: Composite Note: Designed for motors with over 80 lbs of thrust or shaft lengths 72" or longer not including QUEST Motor Compatibility PowerDrive All Thrust Sizes and Shaft Lengths |
| Freshwater PowerDrive Compatible Aluminum Brackets | ||
|

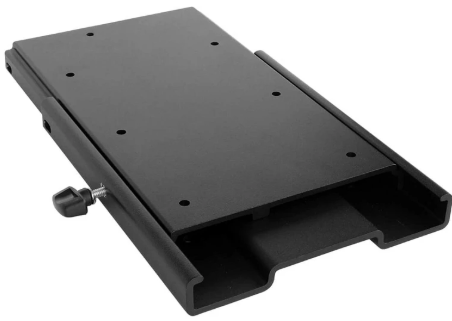

MKA-16-03 Bracket Material: Aluminum Motor Compatibility PowerDrive All Thrust Sizes and Shaft Lengths |
MKA-32 Bracket Material: Aluminum Motor Compatibility PowerDrive All Thrust Sizes and Shaft Lengths |
MKA-51 Bracket Material: Aluminum Motor Compatibility PowerDrive All Thrust Sizes and Shaft Lengths
|
| Freshwater Terrova Compatible Composite Brackets | |||
|
MKA-21 Bracket Material: Composite Note: Not for motors with over 80 lbs or thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility Terrova Freshwater 80 LB Thrust or Less and 60 inch shaft or less |
MKA-64 Bracket Material: Composite Note: Designed for motors with over 80 lbs of thrust or shaft lengths 72" or longer not including QUEST Motor Compatibility Terrova Freshwater models All Thrust Sizes and All Shaft Lengths |
RTA-17 Bracket Material: Composite Note: Not for motors with over 80 lbs or thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility Terrova and Riptide Terrova 80 LB Thrust or Less and 60 inch shaft or less |
RTA-62 Bracket Material: Composite Note: Designed for motors with over 80 lbs of thrust or shaft lengths 72" or longer not including QUEST Motor Compatibility Terrova, Riptide Terrova, or Riptide ST All Thrust Sizes and All Shaft Lengths |
| Freshwater Terrova Compatible Aluminum Brackets | ||
|
MKA-16-03 Bracket Material: Aluminum Motor Compatibility Terrova All Thrust Sizes and Shaft Lengths |
MKA-32 Bracket Material: Aluminum Motor Compatibility Terrova All Thrust Sizes and Shaft Lengths |
MKA-51 Bracket Material: Aluminum Motor Compatibility Terrova All Thrust Sizes and Shaft Lengths
|
| Freshwater Ulterra Compatible Composite Brackets | |||
|
MKA-21 Bracket Material: Composite Note: Not for motors with over 80 lbs or thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility Ulterra Freshwater 80 LB Thrust or Less and 60 inch shaft or less |
MKA-64 Bracket Material: Composite Note: Designed for motors with over 80 lbs of thrust or shaft lengths 72" or longer not including QUEST Motor Compatibility Ulterra Freshwater models All Thrust Sizes and All Shaft Lenghts |
RTA-17 Bracket Material: Composite Note: Not for motors with over 80 lbs or thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility Ulterra and Riptide Ulterra 80 LB Thrust or Less and 60 inch shaft or less |
RTA-62 Bracket Material: Composite Note: Designed for motors with over 80 lbs of thrust or shaft lengths 72" or longer not including QUEST Motor Compatibility Ulterra, Riptide Ulterra All Thrust Sizes and All Shaft Lenghts |
| Freshwater Ulterra Compatible Aluminum Brackets | ||
|
MKA-16-03 Bracket Material: Aluminum Motor Compatibility Ulterra All Thrust Sizes and Shaft Lengths |
MKA-32 Bracket Material: Aluminum Motor Compatibility Ulterra All Thrust Sizes and Shaft Lengths |
MKA-51 Bracket Material: Aluminum Motor Compatibility Ulterra All Thrust Sizes and Shaft Lengths |
Non-QUEST Saltwater Electric Steer Compatible Brackets
| Saltwater Riptide PowerDrive Compatible Composite Brackets | |
|
RTA-17 Bracket Material: Composite Note: Not for motors with over 80 lbs of thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility PowerDrive All Thrust Sizes and Shaft Lengths |
RTA-62 Bracket Material: Composite Note: Designed for motors with over 80 lbs of thrust or shaft lengths 72" or longer not including QUEST Motor Compatibility PowerDrive All Thrust Sizes and Shaft Lengths |
| Saltwater Riptide Terrova Compatible Composite Brackets | |
|
RTA-17 Bracket Material: Composite Note: Not for motors with over 80 lbs of thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility Terrova and Riptide Terrova 80 LB Thrust or Less and 60 inch shaft or less |
RTA-62 Bracket Material: Composite Note: Designed for motors with over 80 lbs of thrust or shaft lengths 72" or longer not including QUEST Motor Compatibility Terrova, Riptide Terrova, or Riptide ST All Thrust Sizes and All Shaft Lengths |
| Freshwater Ulterra Compatible Composite Brackets | |
|
RTA-17 Bracket Material: Composite Note: Not for motors with over 80 lbs of thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility Ulterra and Riptide Ulterra 80 LB Thrust or Less and 60 inch shaft or less |
RTA-62 Bracket Material: Composite Note: Designed for motors with over 80 lbs of thrust or shaft lengths 72" or longer not including QUEST Motor Compatibility Ulterra, Riptide Ulterra All Thrust Sizes and All Shaft Lengths
|
Freshwater Bow Mount Cable Steer Bow or Tiller Handle Quick Release Brackets | |
|
MKA-23 Bracket Material: Composite Note: Not for motors with over 80 lbs of thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility Edge All Thrust Sizes and Shaft Lenths Maxxum 80 LB Thrust or Less and 60 inch shaft or less Fortrex 80 LB Thrust or Less and 60 inch shaft or less Ultrex 80 LB Thrust or Less and 60 inch shaft or less |
RTA-19 Bracket Material: Composite Note: Not for motors with over 80 lbs of thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility Edge All Thrust Sizes and Shaft Lengths Maxxum 80 LB Thrust or Less and 60 inch shaft or less Fortrex 80 LB Thrust or Less and 60 inch shaft or less |
Saltwater Bow Mount Tiller Handle Compatible Quick Release Brackets
Saltwater Bow Mount Tiller Handle Quick Release Brackets |
|
RTA-19 Bracket Material: Composite Note: Not for motors with over 80 lbs of thrust or shaft lengths 72" or longer or QUEST. Motor Compatibility Edge All Thrust Sizes and Shaft Lengths Maxxum 80 LB Thrust or Less and 60 inch shaft or less Fortrex 80 LB Thrust or Less and 60 inch shaft or less |
Remote Compatibility

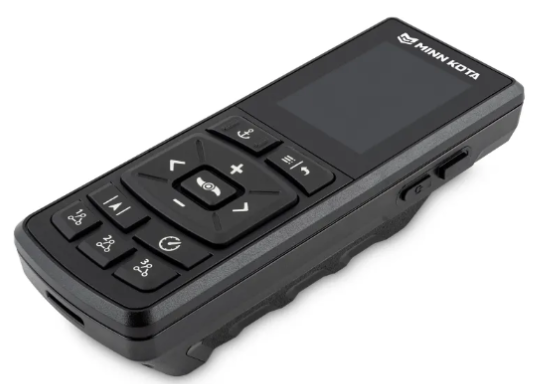

Advanced GPS Navigation Wireless Remote
Click the drop-down arrow to view compatibility with this remote:
Advanced GPS Navigation Wireless Remote
|
Advanced GPS Navigation Wireless Remote
Advanced GPS Navigation Wireless Remote Compatible with:
Advanced GPS Navigation Wireless Remote NOT Compatible with:
Advanced GPS Navigation Wireless Remote Features:
Manual |

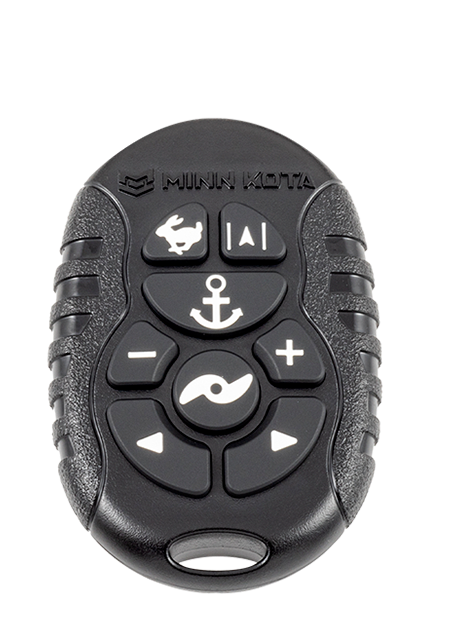

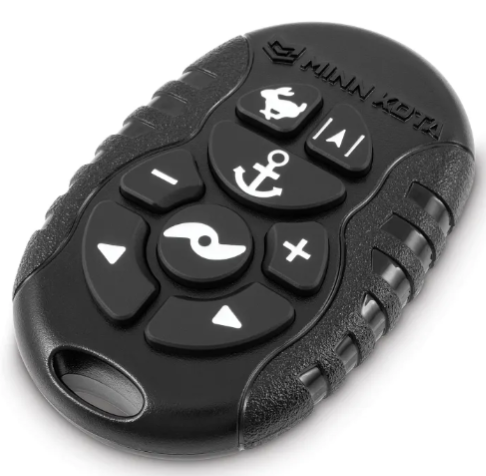

Micro Remote Bluetooth
Click the drop-down arrow to view compatibility with Micro Remote Bluetooth remote:
Micro Remote Bluetooth
|
Micro Remote Bluetooth Micro Remote Bluetooth Compatible with:
Micro Remote Bluetooth NOT Compatible with Compatible with:
Micro Remote Bluetooth Features:
Micro Remote Bluetooth Manual |

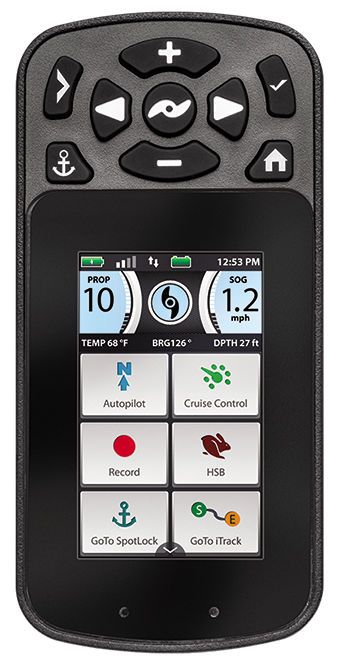

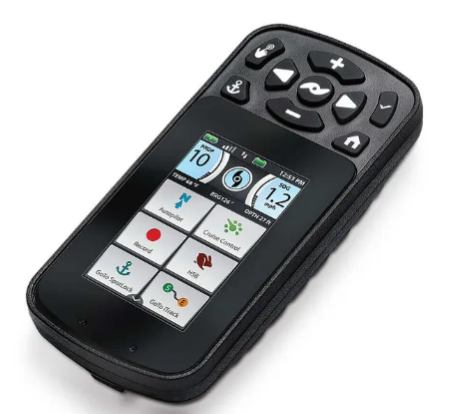

I-Pilot Link BT Remote
Click the drop-down arrow to view compatibility with i-Pilot Link BT remote:
I-Pilot Link BT Remote
|
i-Pilot Link BT Touch Screen / Rechargeable Remote
i-Pilot Link BT Remote Compatible with:
i-Pilot Link BT Remote NOT Compatible with:
i-Pilot Link BT Remote Features
i-Pilot Link BT Manual |

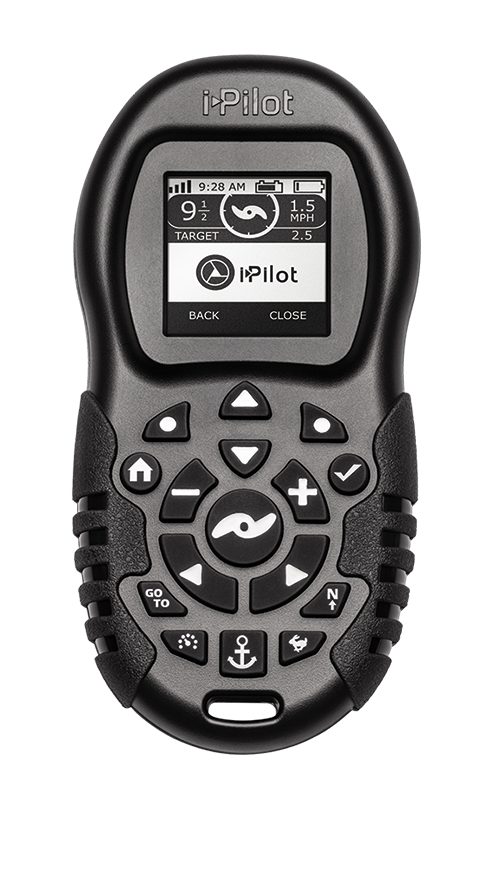

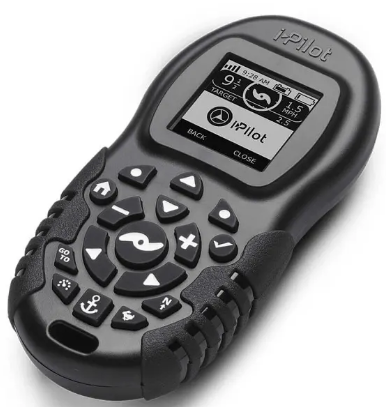

I-Pilot BT Remote
Click the drop-down arrow to view compatibility with i-Pilot BT remote:
I-Pilot BT Remote
|
i-Pilot BT
i-Pilot BT Remote Compatible with:
i-Pilot BT Remote NOT Compatible with:
i-Pilot BT Remote Features
i-Pilot BT Remote Manual |

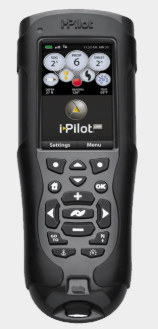

i-Pilot Link Non-Bluetooth Remote (Not Longer Manufactured)
Click the drop-down arrow to view compatibility with i-Pilot Link Non-Bluetooth remote:
i-Pilot Link Non-Bluetooth (No Longer Manufactured)
|
i-Pilot Link Non-Bluetooth Remote
i-Pilot Link Non-Bluetooth compatible with:
i-Pilot Link Non-Bluetooth NOT compatible with:
i-Pilot BT Remote Features
i-Pilot BT Remote Manual |

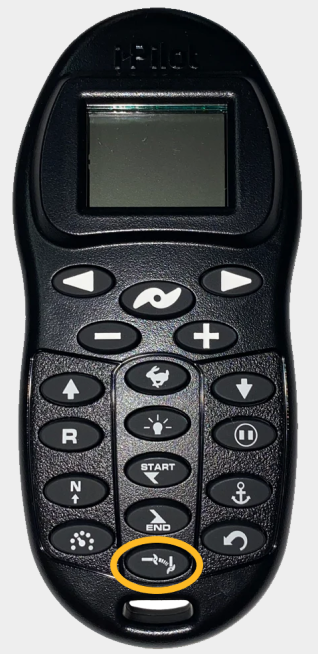

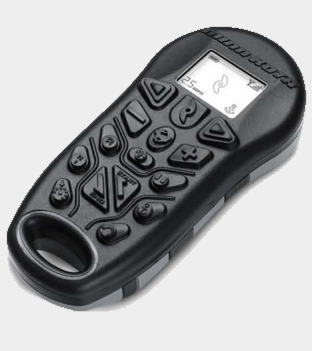

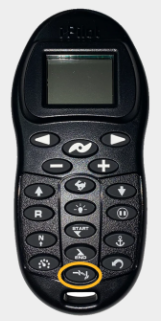

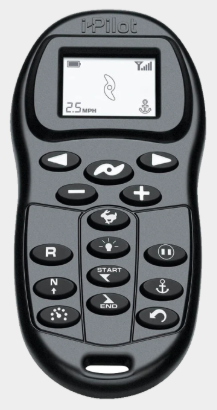

i-Pilot 1.5 Non-Bluetooth Remote (Not Longer Manufactured)
Click the drop-down arrow to view compatibility with i-Pilot Non-Bluetooth remote:
i-Pilot Non-Bluetooth (No Longer Manufactured)
|
i-Pilot Non-Bluetooth Remote
i-Pilot Non-Bluetooth compatible with:
i-Pilot Non-Bluetooth NOT compatible with:
i-Pilot Non-Bluetooth Features:
i-Pilot Non-Bluetooth Manual |
i-Pilot 1.5 Non-Bluetooth Uterra Remote (Not Longer Manufactured)
Click the drop-down arrow to view compatibility with i-Pilot Non-Bluetooth Ulterra remote:
i-Pilot Non-Bluetooth Ulterra Remote(No Longer Manufactured)
|
i-Pilot Non-Bluetooth Ulterra Remote
i-Pilot Non-Bluetooth Ulterra Remote compatible with:
i-Pilot Non-Bluetooth Ulterra Remote NOT compatible with:
i-Pilot Non-Bluetooth Ulterra Remote Features:
i-Pilot Non-Bluetooth Manual |

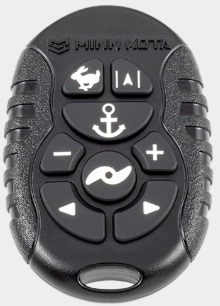

Micro Remote Non-Bluetooth (Not Longer Manufactured)
Click the drop-down arrow to view compatibility with Micro Remote Non-Bluetooth remote:
Micro Remote Non-Bluetooth (No Longer Manufactured)
|
Micro Remote Non-Bluetooth Remote
Micro Remote Non-Bluetooth Remote compatible with:
Micro Remote Non-Bluetooth Remote NOT compatible with:
Micro Remote Non-Bluetooth Remote Features:
|

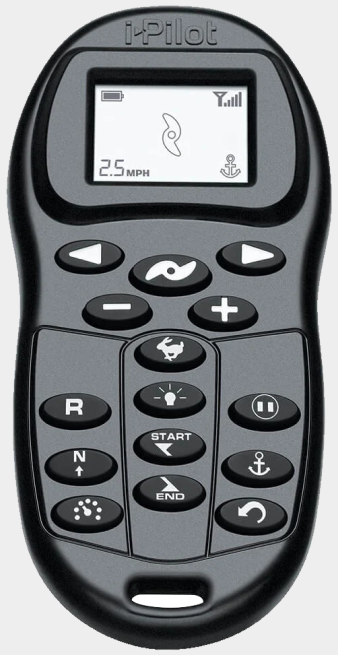

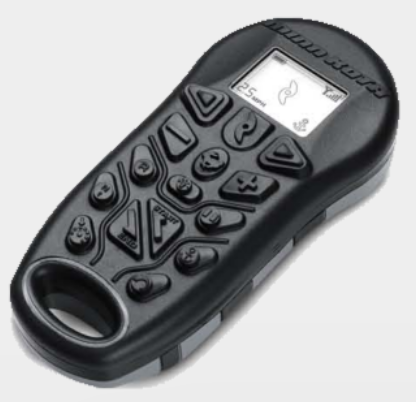

i-Pilot 1.0 Non-Bluetooth Remote (Replaced by i-Pilot 1.5 Non-Bluetooth remote)
Click the drop-down arrow to view compatibility with i-Pilot 1.0 Non-Bluetooth remote:
i-Pilot 1.0 Non-Bluetooth Remote (Replaced by i-Pilot 1.5 Non-Bluetooth remote)
|
i-Pilot 1.0 Non-Bluetooth Remote
i-Pilot 1.0 Non-Bluetooth Remote compatible with:
i-Pilot 1.0 Non-Bluetooth Remote NOT compatible with:
i-Pilot 1.0 Non-Bluetooth Remote Features:
|

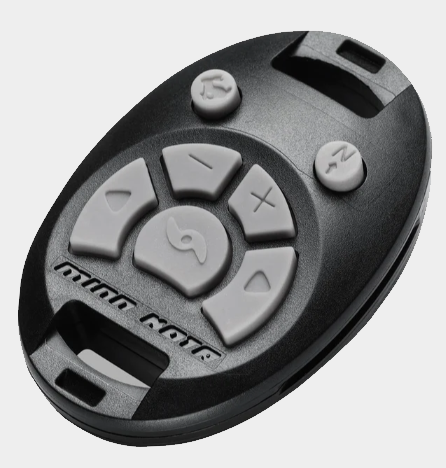

PowerDrive Co-Pilot Remote
Click the drop-down arrow to view compatibility with PowerDrive Co-Pilot remote:
PowerDrive Co-Pilot Remote
|
PowerDrive Co-Pilot Remote
PowerDrive Co-Pilot Remote compatible with:
PowerDrive Co-Pilot Remote NOT compatible with:
PowerDrive Co-Pilot Features
|

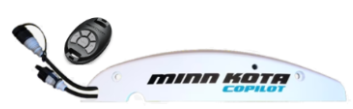

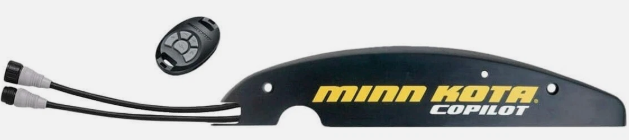

Terrova Co-Pilot Remote
Click the drop-down arrow to view compatibility with Terrova Co-Pilot remote:
Terrova Co-Pilot Remote
|
Terrova Co-Pilot Remote
Terrova Co-Pilot Remote Compatible only with Co-Pilot equipped Terrova motors:
Terrova Co-Pilot Remote NOT compatible with:
Terrova Co-Pilot Features
Terrova Co-Pilot Manual |
Upgrade Kits for GPS Navigation and Remote Control and Compatibility
Advanced GPS Navigation 2023-Present
Freshwater and Riptide Saltwater Advanced GPS Navigation (2023-Present) |
|
The Advanced GPS Navigation technology only comes preinstalled and there are not any Advanced GPS Navigation upgrade kits to upgrade non-Advanced GPS Navigation. |
Bluetooth (BT) i-Pilot and i-Pilot Link Upgrade Kits (2017-2023)
Freshwater PowerDrive BT Upgrade Kits 2017-2023 |
|
i-Pilot BT for PowerDrive Note: PowerDrives with i-Pilot installed will not operate with a foot pedal Compatible with: PowerDrive BT Motors 2017-2023 |
|
Riptide Saltwater PowerDrive BT Upgrade Kits 2017-2023 |
|
Riptide i-Pilot BT for Riptide PowerDrive Note: PowerDrives with i-Pilot installed will not operate with a foot pedal Compatible with: Riptide PowerDrive BT Motor 2017-2023 |
|
| Freshwater Terrova BT Upgrade Kits 2017-2023 | ||
|
i-Pilot BT for Terrova BT Compatible with: Terrova BT Motors 2017-2023 |
i-Pilot Link BT for Terrova BT Compatible with: Terrova BT Motors 2017-2023 |
|
|
Terrova BT Upgrade Kits Not Compatible with:
| ||
|
Manuals
| ||
Riptide Terrova BT Saltwater Upgrade Kits 2017-2023 | |
|
Riptide i-Pilot BT for Terrova BT Compatible with: Riptide Terrova BT Motor 2017-2023 |
Riptide i-Pilot Link BT for Terrova BT Compatible with: Riptide Terrova BT Motor 2017-2023 |
|
Riptide Terrova BT Saltwater Upgrade Kits Not Compatible with:
| |
|
Manuals: | |
Freshwater Ulterra BT Upgrade Kits 2015-2023 | |
|
i-Pilot BT for Ulterra Compatible With: Ulterra BT Motors 2015-2023 |
i-Pilot Link BT for Ulterra Compatible with: Ulterra BT Motors 2015-2023 |
|
Ulterra BT Upgrade Kits Not Compatible with:
| |
|
Manuals: | |
Riptide Saltwater Ulterra BT Upgrade Kits 2015-2023 | |
|
Riptide i-Pilot BT for Ulterra Compatible with: Riptide Ulterra BT Motors 2015-2023 |
Riptide i-Pilot Link BT for Ulterra Compatible with: Riptide Ulterra BT Motors 2015-2023 |
|
Riptide Ulterra BT Saltwater Upgrade Kits Not Compatible with:
| |
|
Manuals: | |
Ultrex BT Upgrade Kits | |
|
i-Pilot BT for Ultrex Compatible with: Ultrex BT Motors 2017-2023 |
i-Pilot Link BT for Ultrex Compatible with: Ultrex BT Motors 2017-2023 |
|
Ultrex BT Upgrade Kits Not Compatible with:
| |
|
Manuals: | |

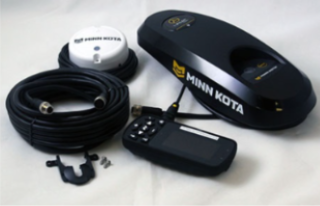

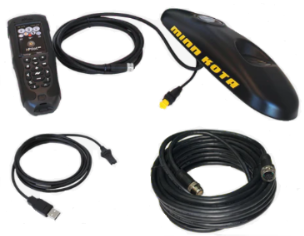

Legacy Non-Bluetooth i-Pilot and i-Pilot Link Upgrade Kits
| Legacy Freshwater Non-Bluetooth PowerDrive Update Kits | |
|
i-Pilot Non-Bluetooth for PowerDrive V2 Item #1866310 Obsolete Note: PowerDrive V2 with i-Pilot installed will not operate with a foot pedal Compatible with: Freshwater PowerDrive V2 Non-Bluetooth 2007-2016 |
i-Pilot Link Non-Bluetooth for PowerDrive V2 Item #1866410 Obsolete Note: PowerDrive V2s with i-Pilot Link installed will not operate with a foot pedal Compatible with: Freshwater PowerDrive V2 Non-Bluetooth 2007-2016 |
|
Legacy PowerDrive V2 Kits Not Compatible with:
| |
|
Manuals: | |
| Legacy Riptide Saltwater Non-Bluetooth PowerDrive Update Kits | |
|
Legacy Non-Bluetooth i-Pilot for Riptide PowerDrive / Riptide SP (Obsolete) Item #1866215 (Obsolete) Note: PowerDrive/Riptide SP with i-Pilot installed will not operate with a foot pedal Compatible with: Riptide PowerDrive/Riptide SP Non-Bluetooth 2007-2016
|
Legacy Non-Bluetooth i-Pilot Link for Riptide PowerDrive / Riptide SP (Obsolete) Item #1866415 (Obsolete) Note: PowerDrive/Riptide SP with i-Pilot Link installed will not operate with a foot pedal Compatible with: Riptide PowerDrive/Riptide SP Non-Bluetooth 2007-2016 |
|
Legacy Riptide PowerDrive for Riptide SP Kits Not Compatible with:
| |
|
Manuals: | |
Legacy Freshwater Non-Bluetooth Terrova Update Kits | |
|
i-Pilot Non-Bluetooth for Terrova Item #1866300 Obsolete Compatible with: Freshwater Terrova Non-Bluetooth 2007-2016 |
i-Pilot Link Non-Bluetooth for Terrova Item #1866400 Obsolete Compatible with: Freshwater Terrova Non-Bluetooth 2007-2016
|
|
Legacy Terrova Kits Not Compatible with:
| |
|
Manuals: | |
Legacy Riptide Saltwater Non-Bluetooth Terrova Update Kits | |
|
i-Pilot Non-Bluetooth for Riptide Terrova/ Riptide ST Item #1866405 Obsolete Compatible with: Riptide Saltwater Terrova Non-Bluetooth 2007-2016 |
i-Pilot Link Non-Bluetooth for Riptide Terrova/ Riptide ST Item # 1866305 Obsolete Compatible with: Riptide Saltwater Terrova Non-Bluetooth 2007-2016 |
|
Legacy Riptide Terrova or Riptide ST Kits Not Compatible with:
| |
|
Manuals: | |
Freshwater Ulterra Upgrade Kits 2015-2016 | |
|
i-Pilot BT for Ulterra Note: This Kit does upgrade Non-Bluetooth Ulterra to Bluetooth Compatible With: Ulterra BT Motors 2015-2023 |
i-Pilot Link BT for Ulterra Note: This Kit does upgrade Non-Bluetooth Ulterra to Bluetooth Compatible with: Ulterra BT Motors 2015-2023 |
|
Ulterra BT Upgrade Kits Not Compatible with:
| |
|
Manuals: | |
Riptide Saltwater Ulterra BT Upgrade Kits 2015-2016 | |
|
Riptide i-Pilot BT for Ulterra Note: This Kit does upgrade Non-Bluetooth Ulterra to Bluetooth Compatible with: Riptide Ulterra BT Motors 2015-2023 |
Riptide i-Pilot Link BT for Ulterra Note: This Kit does upgrade Non-Bluetooth Ulterra to Bluetooth Compatible with: Riptide Ulterra BT Motors 2015-2023 |
|
Riptide Ulterra BT Saltwater Upgrade Kits Not Compatible with:
| |
|
Manuals: | |
Co-Pilot Upgrade Kits
| Freshwater and Riptide Saltwater PowerDrive BT Co-Pilot Kit |
|
Co-Pilot for PowerDrive BT Item #1866155 Compatible with: PowerDrive BT Motors 2017-2023 Riptide PowerDrive/Riptide SP BT 2017-2023 |
|
Co-Pilot for PowerDrive Upgrade Kits Not Compatible with:
|
|
Manual: |
| Legacy Freshwater Non-Bluetooth PowerDrive Co-Pilot Kit |
|
Co-Pilot for PowerDrive Non-Bluetooth
Item #1866150 Obsolete Compatible With: PowerDrive V2 2007-2016
|
|
Co-Pilot for PowerDrive Upgrade Kits Not Compatible with:
|
|
Manual: |
| Legacy Riptide Saltwater Non-Bluetooth PowerDrive or Riptide SP Co-Pilot Kit |
|
Co-Pilot for PowerDrive Non-Bluetooth
Item #1866151 Obsolete Compatible With: Riptide PowerDrive/Riptide SP 2007-2016
|
|
Co-Pilot for Riptide PowerDrive/ Riptide SP Upgrade Kits Not Compatible with:
|
|
Manual: |
| Legacy Freshwater Non-Bluetooth (Flat Plug) PowerDrive Co-Pilot Kit |
|
Co-Pilot for PowerDrive Non-Bluetooth Flat Plug 2006-Older Item # 1866100 Obsolete Compatible With: PowerDrive 2006 and Older
|
|
Co-Pilot for Riptide PowerDrive/ Riptide SP Upgrade Kits Not Compatible with:
|
| Legacy Riptide Saltwater Non-Bluetooth (Flat Plug) PowerDrive Co-Pilot Kit |
|
Co-Pilot for Riptide PowerDrive/Riptide SP Non-Bluetooth Flat Plug 2006-Older Item #1866101 Obsolete Compatible With: Riptide PowerDrive/ Riptide SP 2006 and Older
|
|
Co-Pilot for Riptide PowerDrive/ Riptide SP Upgrade Kits Not Compatible with:
|
Power Accessories: Circuit Breaker, Quick Disconnect, and Plug and Receptacle
CONDUCTOR GAUGE AND CIRCUIT BREAKER SIZING TABLE
-
This conductor and circuit breaker sizing table are only valid for the following assumptions:
- No more than 2 conductors are bundled together inside of a sheath or conduit outside of engine spaces.
- Each conductor has 105° C temp-rated insulation
- No more than 3% voltage drop allowed at full motor power based on published product power requirements.
-
The 30lb thrust motor has been optimized to perform as a portable trolling motor. We therefore do not recommend altering the wire length as it can adversely affect its performance.
- NOTICE: Wire Extension Length refers to the distance from the batteries to the trolling motor leads. Consult website for available thrust options. Maximum Amp Draw values only occur intermittently during select conditions and should not be used as continuous amp load ratings.
- Reference United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment ABYC E-11: AC and DC Electrical Systems on Boats
|
Circuit Breaker |
|
MKR-27 Circuit Breaker
Compatible with: Freshwater and Saltwater motors requiring a 60 AMP Breaker see chart above. Features and Specs:
|
|
Not Compatible with: Motors that require any size except for 60 AMP: see chart above. |
| Plug and Receptacle |
|
MKR-28
Compatibility Compatible with 6-10 AWG wire sizes. The MKR-28 trolling Motor Plug and Receptacle provides continuous power and is rated to 60 amps up to 48V. Designed for freshwater and saltwater applications, silver plated terminals provide reliable use in the harshest conditions. This plug is the recommended replacement for the MKR-18 Plug & Receptacle (part number 1865102) and MKR-26 (part number 1865128). Package includes: trolling motor plug with 18” wire lead, receptacle with 24” wire lead, mounting faceplate, dust cap, (2) 0-14 AWG splicer, 1 AWG ferrule, 2 AWG ferrule, 4 AWG ferrule, heat shrink, hex wrench and installation. Features and Specs:
|
| MKR-28 Installation Instructions |
| Remote Power Switch |
|
MKR-30
Compatible With: QUEST series Ulterra and Riptide Instinct motors Features and Specs:
|
|
Installation and Dimensions |
| Quick Disconnect Plugs |
|
MKR-20
Features
Instructions:
|
|
MKR-12
For wiring where a plug and socket cannot be used. Heavy-duty 10-gauge connectors Features and Specs:
Motor Side Cable Length – 6.66” Battery Side Cable Length – 11.66” Length overall when Connected – 18.32” Instructions:
|
Resources
