i-Pilot is available for fresh and saltwater Terrovas and fresh and saltwater PowerDrives (2017-2023). If your motor did not come with i-Pilot preinstalled, you can add it as an upgrade kit. The kit includes everything needed to add i-Pilot to your motor. i-Pilot is not available for cable-steer (except the Ultrex) or hand-controlled motors as they do not have a steering motor built-in for the i-Pilot to connect to and steer the motor.
Bluetooth i-Pilot is also available for Ultrex and fresh and saltwater Ulterras. Ultrex and Ulterras come with either i-Pilot or i-Pilot Link. If your Ulterra is from 2015-2016, you can upgrade the motor to Bluetooth i-Pilot or Bluetooth i-Pilot Link with an upgrade kit. Click here for the upgrade and conversion kit information.
Jump to:
- Upgrade Kits and Compatibility
- Terrova Upgrade Kit Installation
- PowerDrive Upgrade Kit Installation
- Manuals
Upgrade Kits and Compatibility
-
Freshwater Motors
- Terrova i-Pilot Upgrade Kit, item number 2774157 (compatible with all Terrovas (2017-2023)
- PowerDrive i-Pilot Upgrade Kit, item number 2774155 (compatible with all PowerDrives (2017-2023))
-
Saltwater Motors (Riptides)
- Riptide Terrova i-Pilot Upgrade Kit, item number 2774150 (compatible with all Riptide Terrovas (2017-2023))
- Riptide PowerDrive i-Pilot Upgrade Kit, item number 2774156 (compatible with all Riptide PowerDrives (2017-2023))
NOTE: These instructions cover accessory installation only.
Terrova Upgrade Kit Installation
Tools and Resources Required
- #2 Phillips Screwdriver
- 30-45 Minutes
Installation

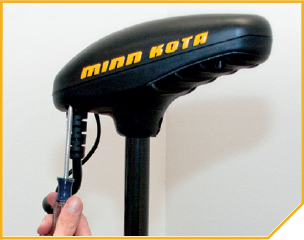

- Use the #2 Phillips Screwdriver to remove the 4 screws that secure the control box cover and remove the control box cover.
- If AutoPilot was installed disconnect the Network Accessory Plug from the AutoPilot Board and remove the AutoPilot Board and Compass Assembly.
- Connect the i-Pilot Controller Accessory Plug to the motor Network Accessory Plug.
- Place the i-Pilot Controller/Cover Assembly on the Control Box.
- Install the 4 Screws that secure the i-Pilot Controller/Cover Assembly to the Control Box.
PowerDrive Upgrade Kit Installation
*Note - When upgrading the PowerDrive to i-Pilot, the foot pedal will no longer work. Motor control for the motor will be done with the Remote or i-Pilot App (for Android or iOS).
Tools and Resources Required
- #2 Phillips Screwdriver
- Heat gun
- 30-45 Minutes
Instructions
- Use the #2 Phillips Screwdriver to remove the 4 screws that secure the control box cover and remove the control box cover.
- If AutoPilot was installed remove all six (6) wires connected to the AutoPilot Board, then remove the Autopilot Board. Cover the exposed end of each wire with one of the included heat shrinks and then use the heat gun to seal the heat shrink onto the connector end.

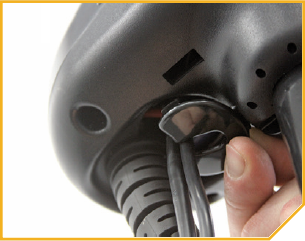

- Remove the Insert Plug. Push from the inside, down on the edge closest to the coil cord, the plug will “pop” out.
- Use the #2 Screwdriver to remove both sideplates, then remove the Center Cover exposing the main control board. If CoPilot is installed disconnect its plug connection from the main control board.
- Route the i-Pilot Controller Cable that is attached to the i-Pilot Controller down through the opening that the Insert Plug was removed from.
- Continue feeding the i-Pilot Controller Cable down the interior of the coil cord.
- Install the Insert plug that was included with this kit. Position the Tab that is opposite the opening in the Insert Plug in the Slot closest to the the Motor Shaft, guide the US2 Cable, if installed, and the Ethernet cable into the opening in the Insert Plug then push up on the Insert Plug until the other two tabs snap into place.
- If AutoPilot was removed position the wires at the base of the control box next to the Insert Plug. Verify the Motor Wires and US2 cable (if equipped) are routed as low as possible in the control box and do not cross any of the raised ribs.
- Place the i-Pilot Controller on the control box, use the #2 Phillips Screwdriver to install the four screws that secure the Controller/Control Box Cover.
- Use the #2 Phillips Screwdriver to remove the Strain Relief that holds the foot Pedal cable and power lead near the control board.
- If CoPilot was installed complete the removal by using the #2 Phillips screwdriver to remove the two screws retaining the CoPilot Control Board in the Sideplate.
- Place the Power Leadwire in the large cavity in the strain relief, the plug connection from the Control Board in the smaller cavity closest to the hole the screw passes through, and the small lead with the black and wires in the final cavity in the strain relief. Install the screw that retains the Strain Relief.
- Locate the Black and White Wires going to the steering housing. On Riptide Motors cut the heatshrinks off of these connections. Separate the Bullet Terminals.
- Slide two of the included heat shrinks onto the wire leads coming from the steering motor.
- Connect the Bullet Terminals from the Small Controller Lead to the Terminals coming from the Steering Housing, the wires should be Black to Black, White to White and the Terminals should Match. Position the heat shrinks that were installed in step J so they cover the connection and then use the heat gun to seal them.
- Place two of the included heat shrinks on the exposed white and black leads that were connected to the leads from the Steering Housing then use the heat gun to seal those connections.
- Reinstall the Center Cover and Sideplates. Complete the Installation by connecting the Plug Connection from the Control Board to the Plug Connection from i-Pilot Controller.
