SOLIX G3 Series Family Software Update 7.400

Updated

Minn Kota and Humminbird have been fishing partners for decades. Now, Minn Kota brings the power of Humminbird Imaging™ into one integrated fishing system, bringing trolling motors, fish finders, sonar, mapping, shallow water anchors and more together in a single, seamless experience - all under the Minn Kota brand.

The integrated Minn Kota System connects what your fish finder sees with what your trolling motor does, using sonar and mapping information to enable compatible auto-navigation and precise boat positioning so you can stay focused on fishing.

This update is a performance, reliability, and new feature update that is recommended for Humminbird SOLIX G3 owners.

CURRENT VERSION - 7.400

RELEASED DATE - October 6, 2026

Affected Models:

SOLIX G3 Series:

  • (411570-1) SOLIX 15 CHIRP MEGA SI+G3
  • (411570-1CHO) SOLIX 15 CHIRP MEGA SI+G3 CHO
  • (411550-1) SOLIX 12 CHIRP MEGA SI+G3
  • (411550-1CHO) SOLIX 12 CHIRP MEGA SI+G3 CHO
  • (411530-1) SOLIX 10 CHIRP MEGA SI+G3
  • (411530-1CHO) SOLIX 10 CHIRP MEGA SI+G3 CHO

JUMP TO:  New and Updated Features Introduced with Version 7.400 |  7.400 General Update Notes | Important Notes and Prerequisites | Download and Update Instructions | Software Update



New and Updated Features Introduced with Version 7.400

Wirelessly Connect Minn Kota and Humminbird Fish Finders to Minn Kota Trolling Motors:

  • Wireless networking connects your fish finder and trolling motor controls without an Ethernet cable, giving you command and control of your entire boat through one connected experience.  Your fishing setup is dependable and cleaner with less cables.

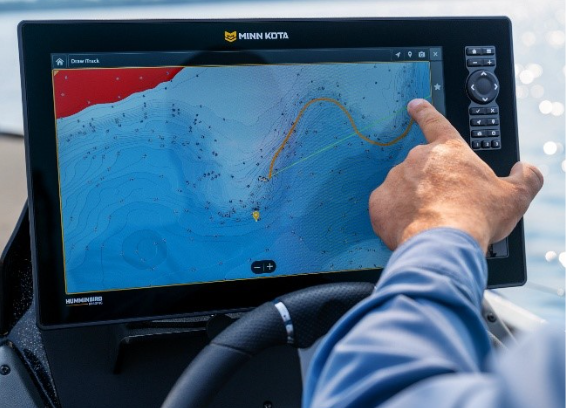

Draw & Navigate

  • Get to your spots more simply than ever!  Just draw a course with your finger right on your fish finder and the motor takes over navigating along the path with your Minn Kota trolling motor.



    Intelligent Depth Control

    • Navigate new and unfamiliar waters with confidence, avoiding shallow water and protecting your equipment.​ Intelligent Depth Control detects depth changes, alerts you to shallow water, and if necessary, automatically engages Spot-Lock® and deploys your shallow water anchors.

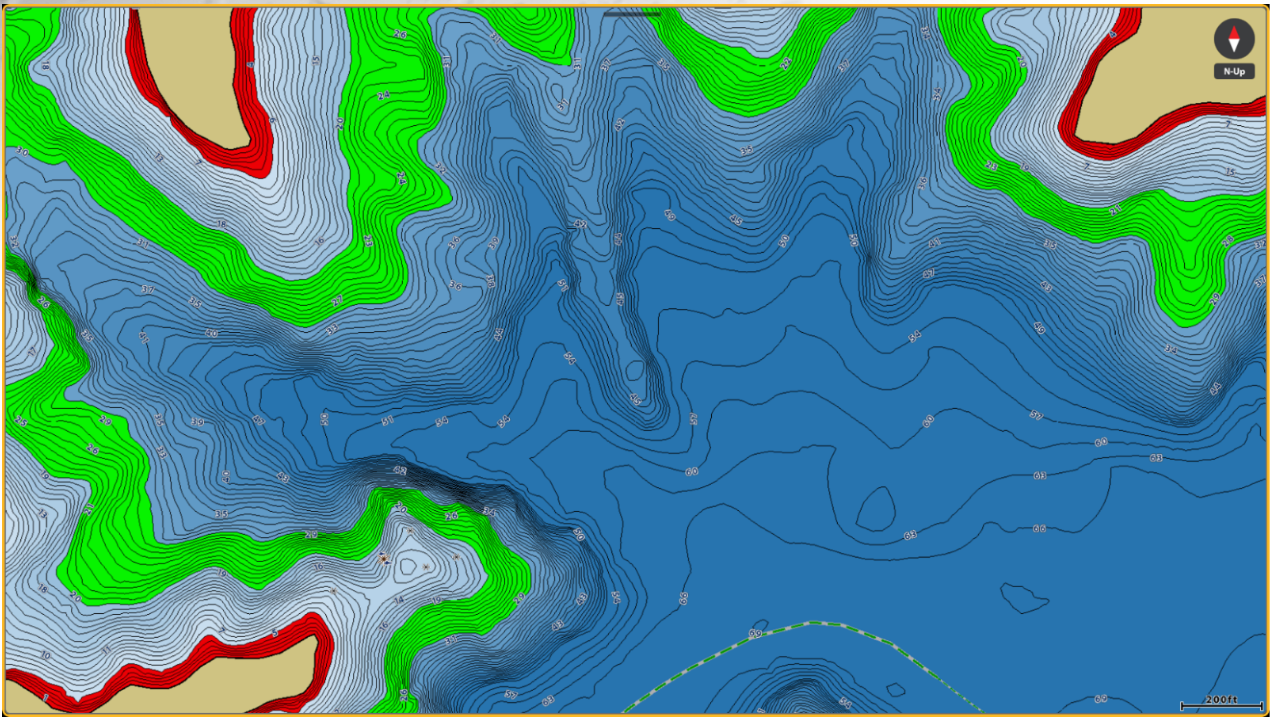

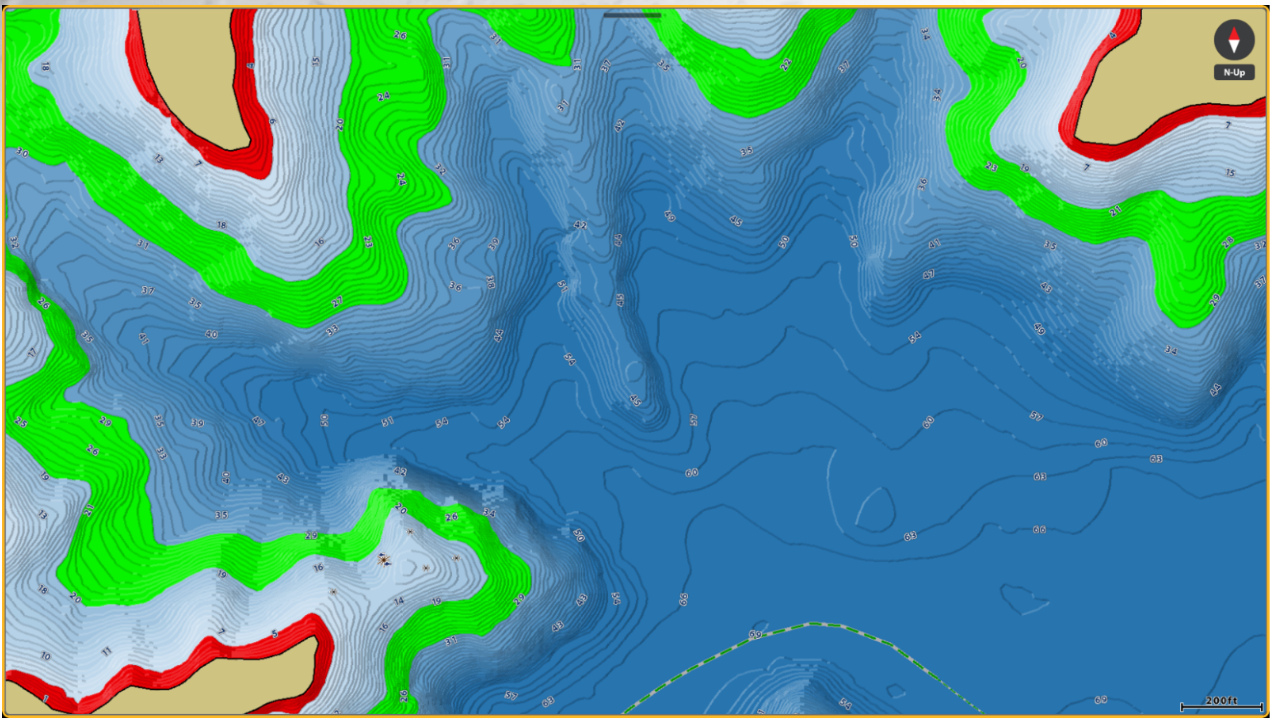

    3D Contours

    • Creates a 3D-like view of the bottom with contours for a clearer read of the terrain.​ Added detail helps quickly identify break lines, river channels, mid-lake structure, and points—more context to find fish.​

    3D CONTOURS OFF


    3D CONTOURS OFF

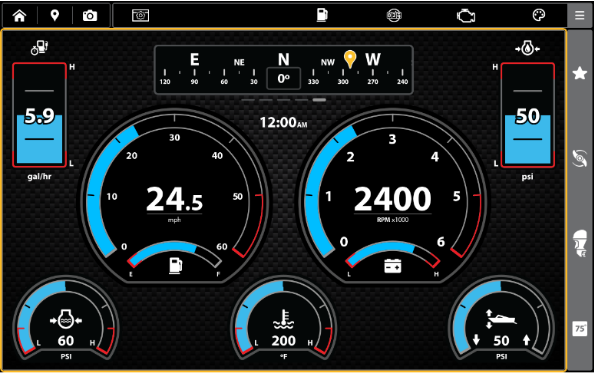

Engine Gauges

  • The previous Instrument Views have been completely redesigned and upgraded to all-new Engine Views. These new views deliver a modern appearance, enhanced functionality, and improved responsiveness to data inputs compared to previous engine and instrument views. Additionally, NMEA 2000 support has been expanded and improved for a wider range of engines and devices. Engine Views are available in both full- and half-pane layouts. Each gauge and indicator can be customized to display the information most important to you, and the color palette can be tailored to match your boat's aesthetic.

Sonar Syncing

  • Easily use more than one Live Sonar transducer at the same time without interference.  Also requires an update to your MEGA Live 2 transducer.

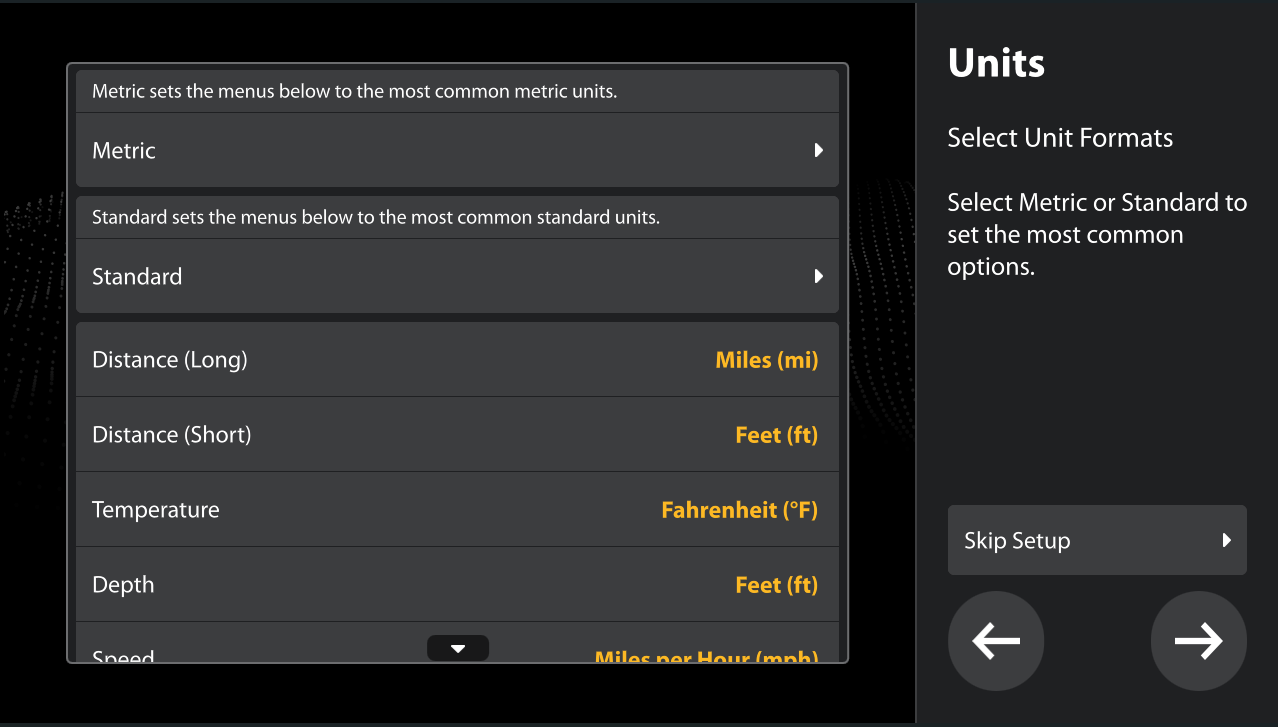

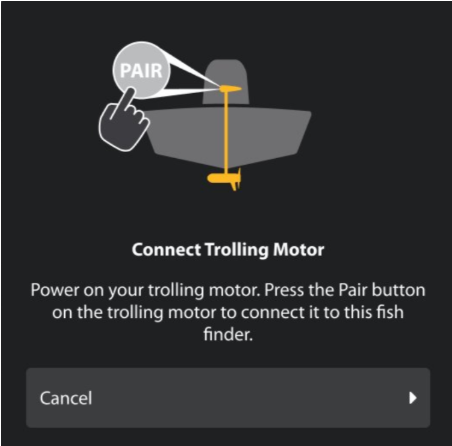

On Boarding / First Time Setup

  • When setting up Minn Kota and Humminbird fish finders after updating to 7.400, setting up the Minn Kota Integrated System to ensure you're getting the most out of your equipment is now easier than ever.  You will be guided through updating software, selecting preferences, configuring settings, connecting trolling motors & shallow water anchors, and setting up features like Intelligent Depth Control and Battery Monitoring.

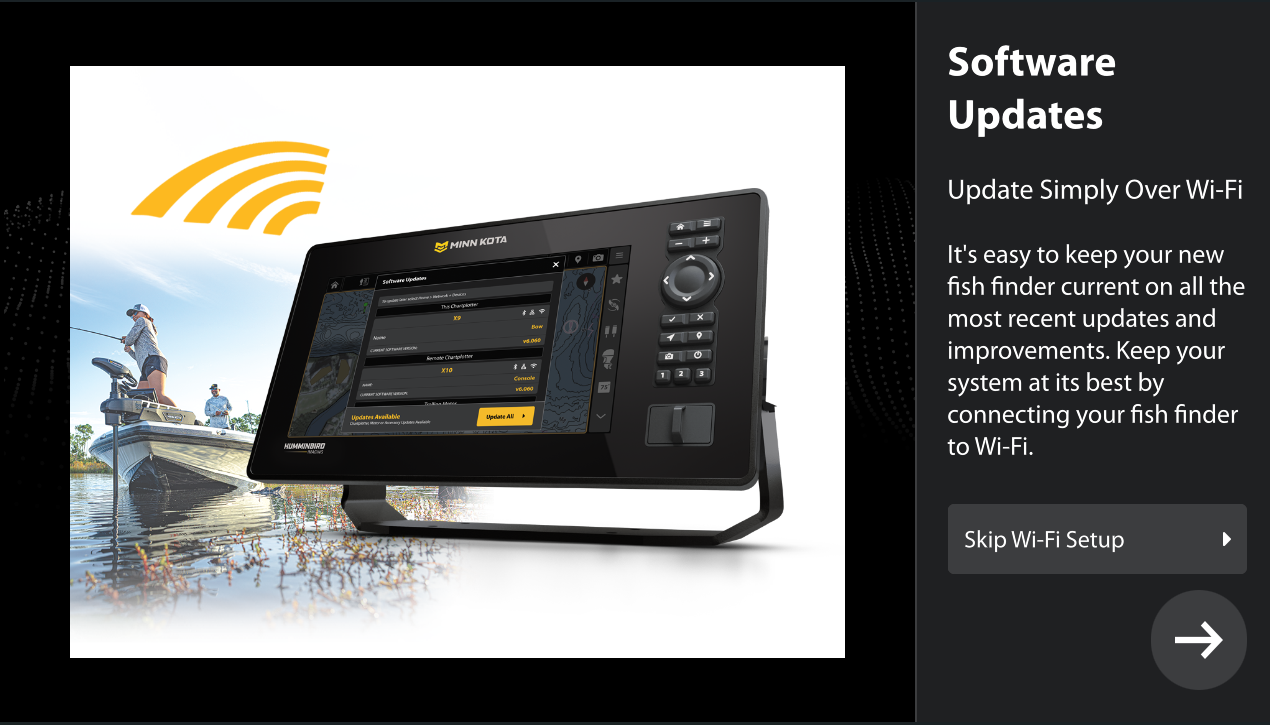

    Update Software Updates Over Wifi

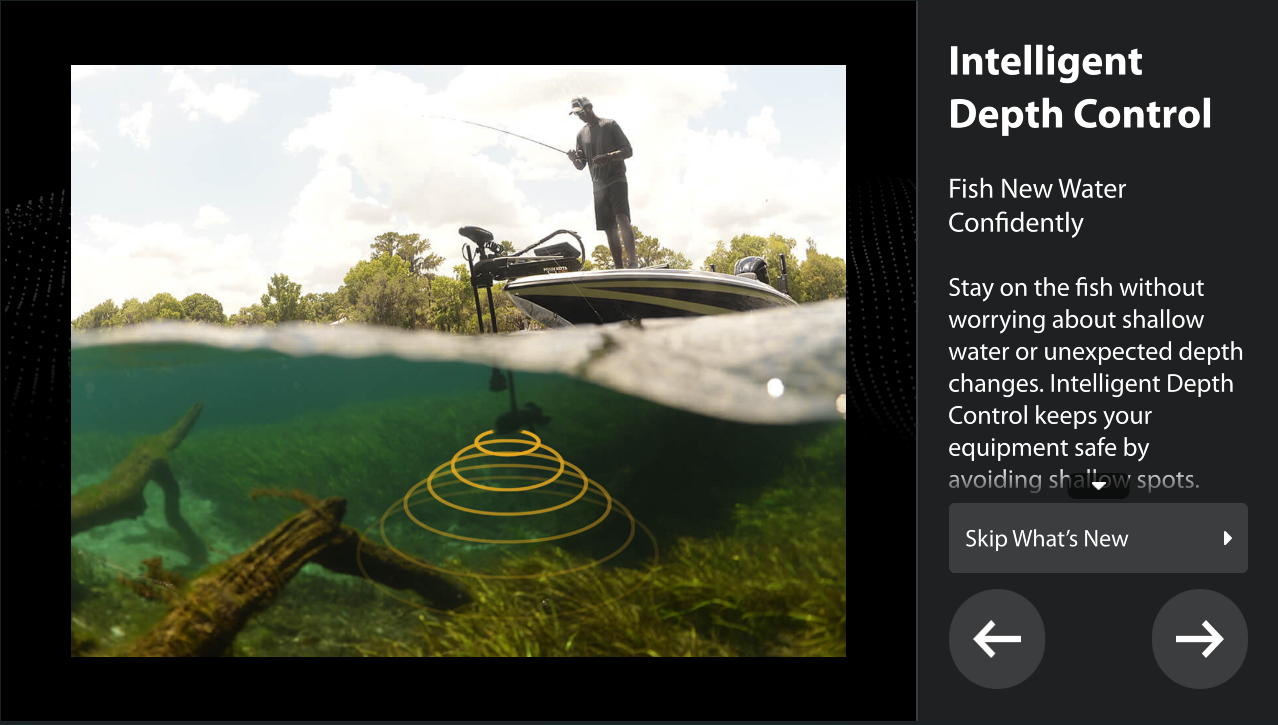

    Intelligent Depth Control

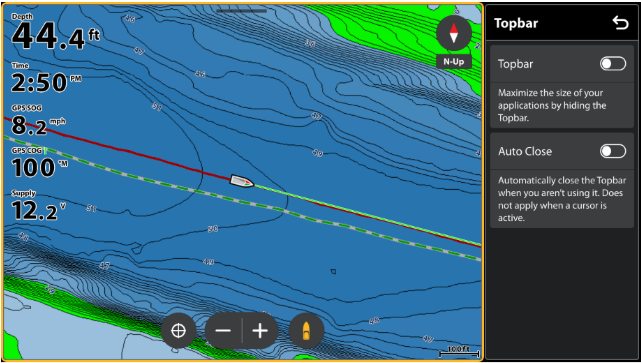

Updated Top Bar – On/Off/Auto Close Support

  • The top bar can now be turned off, left on, or set to Auto Close.  This allows the usable space of each Minn Kota and Humminbird fish finder to be maximized.



NMEA 2000 XTE Output – PGN 129283

  • Support for Cross Track Error (XTE) PGN 129283.  This PGN, in conjunction with PGN 129284 and 129285 are intended to support NMEA 2000 autopilot systems connected to Minn Kota and Humminbird fish finders.

7.400 General Update Notes

The overall performance and functionality of SOLIX units has been improved.

CHART/NAVIGATION

  • Fixed an issue with trolling motor i-Track line styles on the Chart View.
  • Improved the performance of Navionics Plotter Sync.
  • Updated the functionality of filtering the Targets Tool.

WAYPOINT, ROUTES, and TRACK MANAGEMENT

  • Improved the functionality of filtering in the My Data Tool
  • Updated Mark Favorites to include eight favorite options

TROLLING MOTORS

  • Updated settings menu availability while the trolling motor is stowed.
  • Improved several trolling motor navigation features and settings.
  • Fixed an issue with reversing a Follow the Contour event.
  • Improved the functionality of Follow the Contour offset and Circle Mode radius.

LIVE SONAR

  • Updated the functionality of the Landscape mode in-pane pinging range buttons.
  • Fixed several issues with MEGA Live 2 digital depth readings.

360 SONAR

  • Fixed an issue with MEGA 360 Side Imaging Mode message boxes.

SONAR 2D | DI | SI

  • Updated the functionality of lost sonar source message boxes.

SYSTEM

  • Added access to systems and settings for various integrated devices from the side bar menu.
  • Changed the side bar user interface from tabs to scrolling tiles.
  • Updated the reliability and performance of software updates.
  • Improved the functionality of the rear connector device offset menus and values.
  • Updated NMEA 2000 Device and PGN Support
  • Improved the reliability of input to the keypad buttons.
  • Added support for the Romanian language.
  • Updated support for the Hungarian language.
  • Add unit hours back to system information.

Important Notes and Prerequisites

NOTICE! Keep the unit powered on until the update is complete to avoid instability or data loss.

Please Note:

  • Software revisions 6.090 and earlier will require 2 Install steps to complete the 7.400 installation
    • Software version 6.090 must be installed first before 6.120 can be installed.
    • Software version 6.120 must be installed first before 7.400 can be installed.
  • Between updating from 6.090, 6.120, and 7.400 you must reconnect to Wi-Fi to download the next update.
  • The following Humminbird or Minn Kota accessory software or newer should be installed on applicable accessories to be compatible with version 7.400.
  • These updates are included with 7.400 and can be installed from the Network+Updates Tool on the Home Screen.
    • MEGA Live 1: v1.320
    • MEGA Live 2: v2.270
    • MEGA Live Target Lock: v1.210
    • i-Pilot Link 3.0: v1.440
    • 4.0 Controller/Advanced GPS Navigation Systems/Quest:
    • 4.0 Package: v2.780
    • 4.0 Controller: v2.750
    • 4.0 “Handheld” Remote: 2.130
    • RAPTOR: v2.040
    • TALON: v2.020
    • The defaults will be restored when 7.400 is installed.
    • Settings cannot be imported from old software into 7.400 or newer software.

Download and Update Instructions

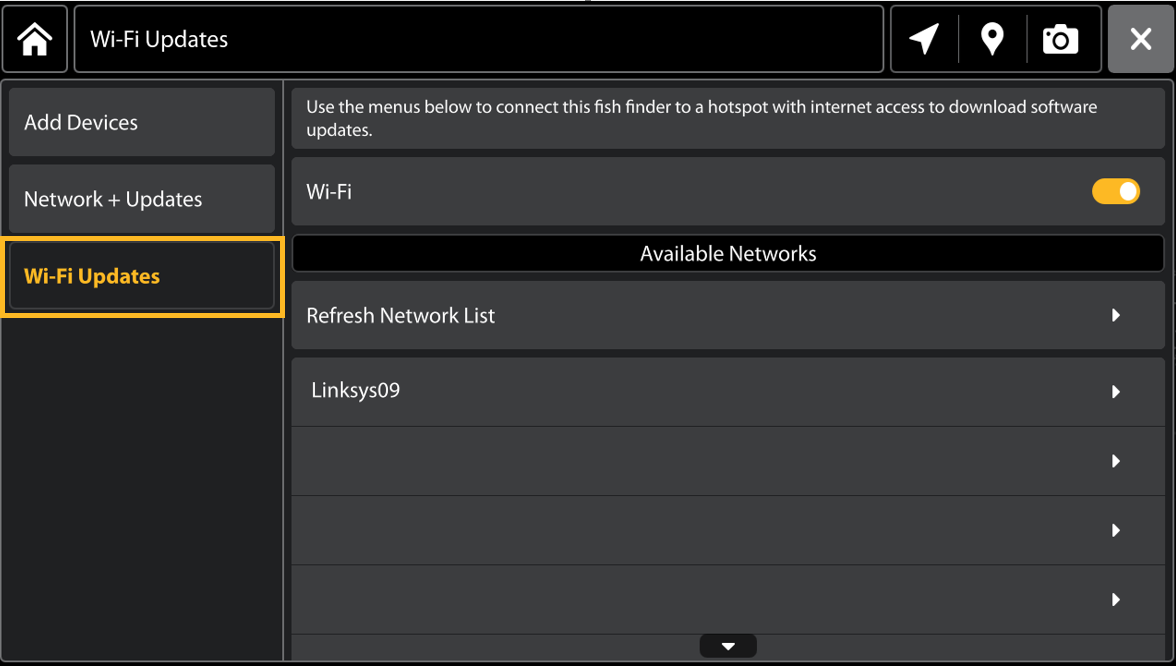

Download and Update with fish finder using WiFi:

  1. Power on you fish finder Unit.
  2. Select Home.

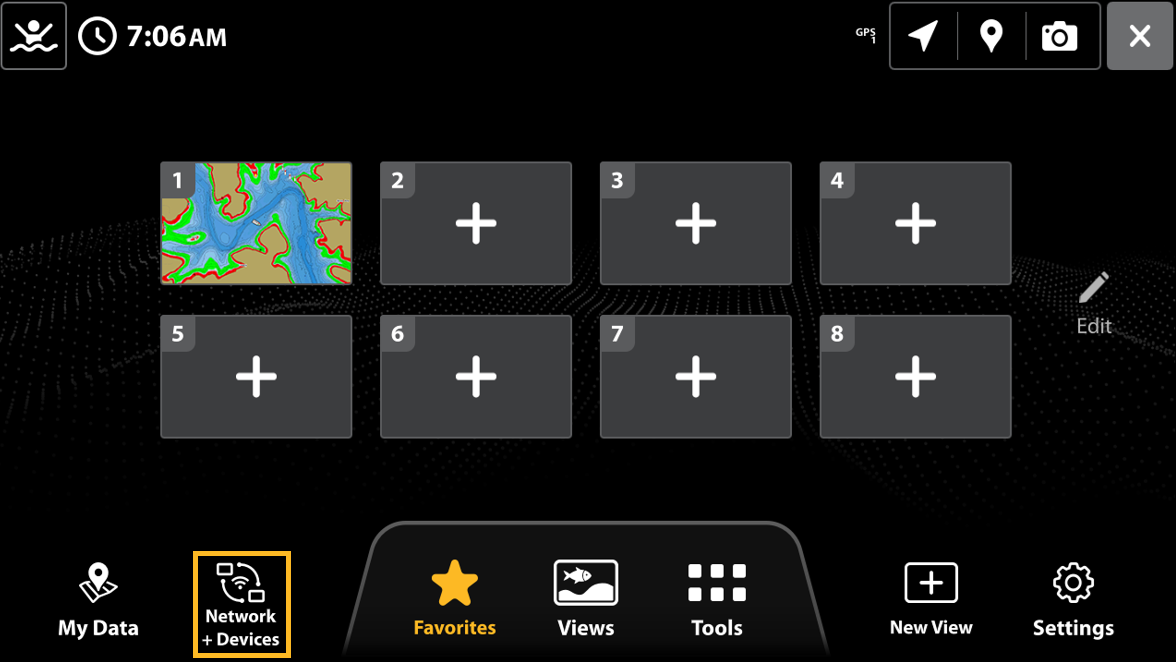

  3. Select Network + Devices
  4. Select Wi-Fi Updates, enable Wi-Fi, and choose your wireless network. Enter the network password if required, then connect to proceed with software updates.
  5. Select Network + Updates and then select Check for Updates.

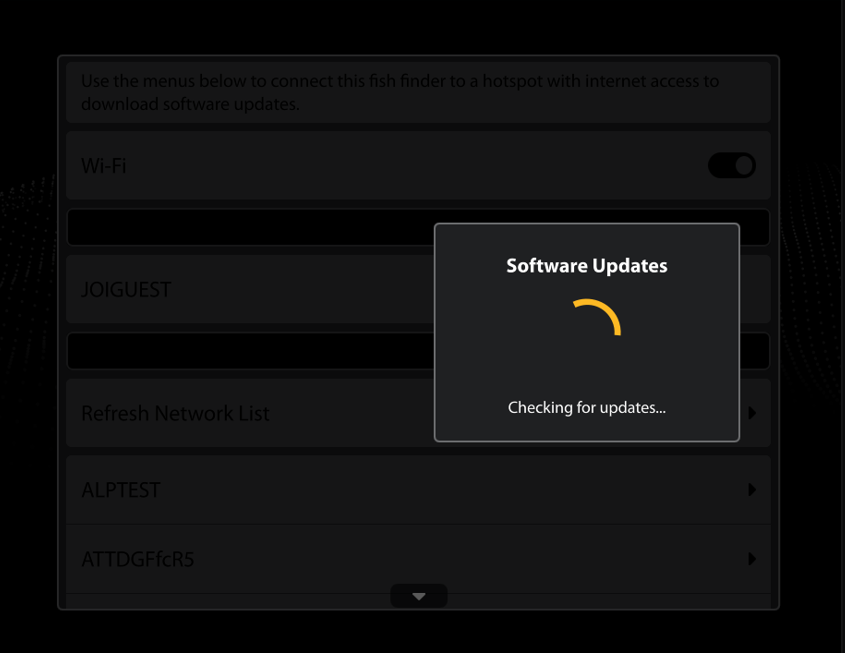

  6. Your unit will then check for updates.
  7. You will now have the option to select Update All Now to update all networked devices or choose the devices you want to update. Note: We recommend keeping the software on all of your products up to date to ensure optimal performance and access to the latest features.

Update Software Using the Minn Kota Fishing App

  • Preparing for the Update
  • The smartphone has Bluetooth enabled.
  • The smartphone is paired with the trolling motor.  Follow these instructions to pair the smartphone to the trolling motor.
    • Enable Bluetooth on the smartphone.
      • For Apple iOS - Open the “Settings” menu. Select “Bluetooth”, then select “On”. Keep the Bluetooth menu open and continue to the next procedure.
      • For Google Android - Open the “Settings” menu. Select “Bluetooth”, then select “On”. Keep the Bluetooth menu open and continue to the next procedure. NOTICE: Android devices must press Scan to locate the device in the Bluetooth list.
  1. Open the Minn Kota Fishing app on the smartphone.

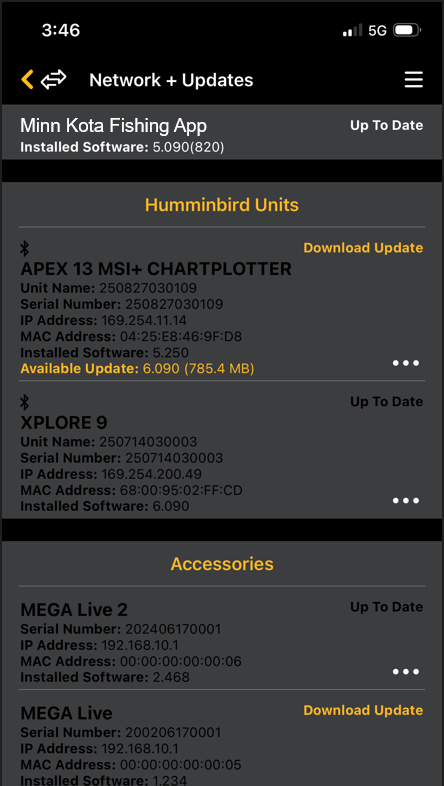

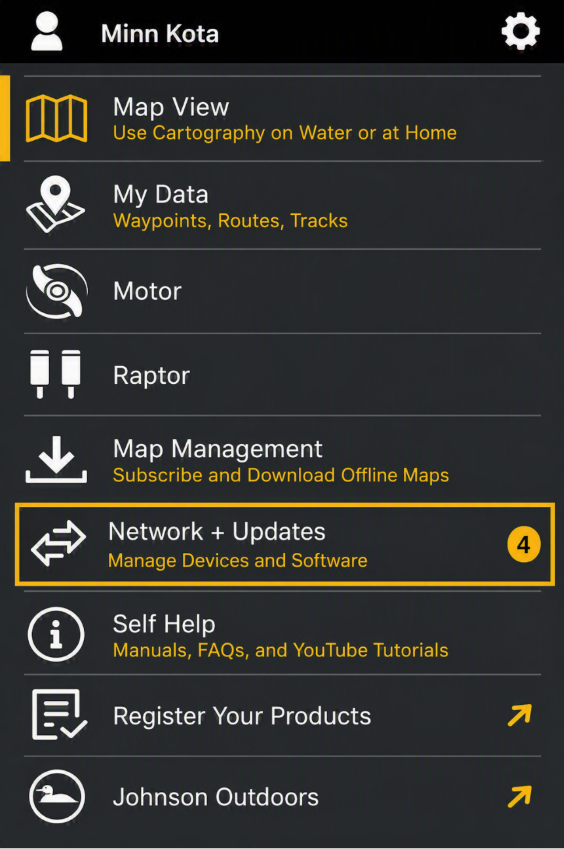

  2. Open “Network + Updates” window
  3. Once in Network + Updates window, the current “SOLIX 6.090 Package” version will display as “Installed Package” in white text.  New Package version will display as “Available Package” for any integrated fish finders or accessories with available updates with the option to Download Update to the right.
  4. Select “Download Update” to the right of Minn Kota Motor 4.0 Package.  This will download the available Package File that includes updated software for all connected trolling motor components to the mobile device.  This process will happen quickly.
  5. To complete the Software Update click transfer update. Note: This process can take several minutes to complete.
  6. Once the transfer is complete you will see Network + Updates on the fish finder.

Update Software Using an SD Card:

  1. Save the .up2 file to your PC (this will most likely be saved in your Downloads folder) and move the .up2 file to your SD card.
    • Connect the SD card to your computer and ensure it is detected.
    • Open File Explorer
    • Locate the update file in your Downloads section (see example below)
      Example:
    • Cut/copy and paste the desired files from your computer to your SD card. You can also drag and drop items.
      • Tip: If you use the “Cut and Paste” method, the files will only be saved on your SD card, freeing up space on your local disk.
      • If you use the “Copy and Paste” method, you’ll get a duplicate of the chosen files, keeping a backup on your computer.
    • Once the file has successfully saved on your card, safely disconnect your SD card.

Software Update Instructions

NOTICE! Keep the unit powered on until the update is complete to avoid instability or data loss.

  • Before you begin: make sure to remove any other card that may be present, such as a LakeMaster, Zero Lines, Navionics, etc., from the unit before initializing the new update.

Two Methods to Update with an SD Card:

Software Update Instructions

NOTICE! Keep the unit powered on until the update is complete to avoid instability or data loss.

Before you begin: make sure to remove any other card that may be present, such as a LakeMaster, Zero Lines, Navionics, etc., from the unit before initializing the new update.

Update with an SD Card Instructions:

Note: If software is prior to 6.090 see below for Updating Software prior to 6.090

  1. With software update card already in the unit, power on and follow the on-screen prompts to start in Normal Mode.
  2. Press the HOME key
  3. Tap the Network and Devices icon.

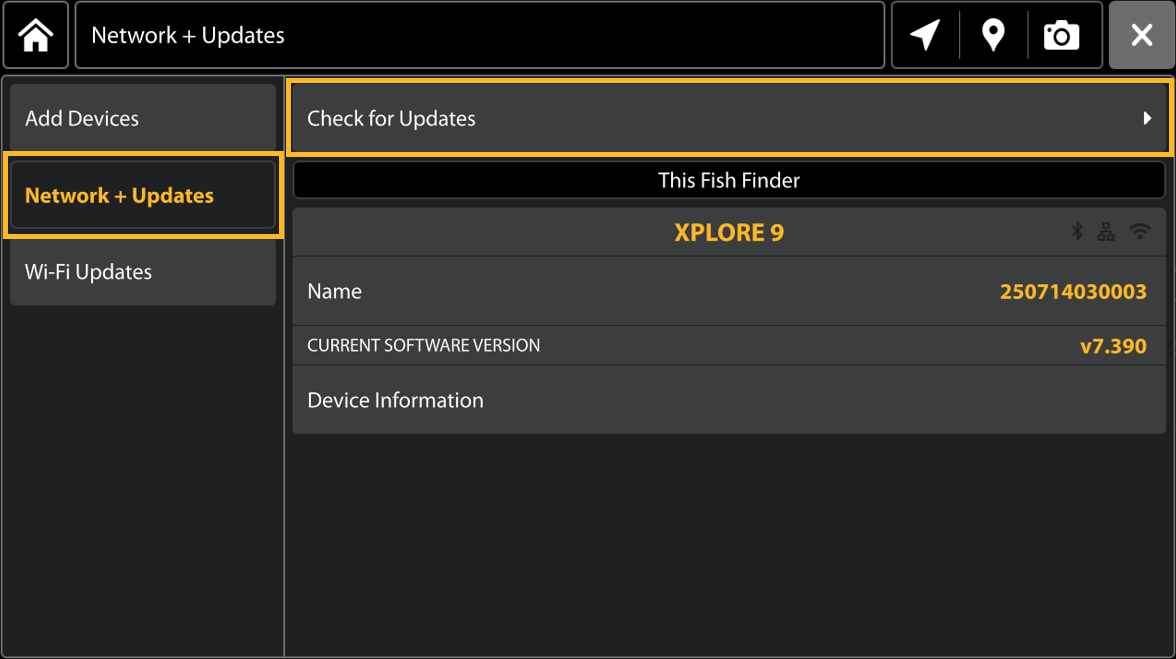

  4. Tap Network + Updates.
  5. Confirm that the most current version of software is selected from the list. Select Check for Updates
  6. Any available updated will be displayed.
    • Important! Do NOT remove the SD card or power off your fish finder until the software update is complete.

Software Update

Updating Software prior to 6.090

Before you proceed with Software version 6.090! Software version 5.060 MUST be installed prior to 6.090. Please check your unit's current software. A link to version 5.060 is provided below.

New and Updated features introduced by version 5.060 can be referenced here.

NOTE: The 5.060 update is necessary to network with XPLORE and MEGA Live 2. However, your network cannot contain SOLIX G1, SOLIX G2, HELIX, i-Pilot Link (non-Bluetooth, 2016 and prior), AS 360 or any Legacy models produced prior to 2017.

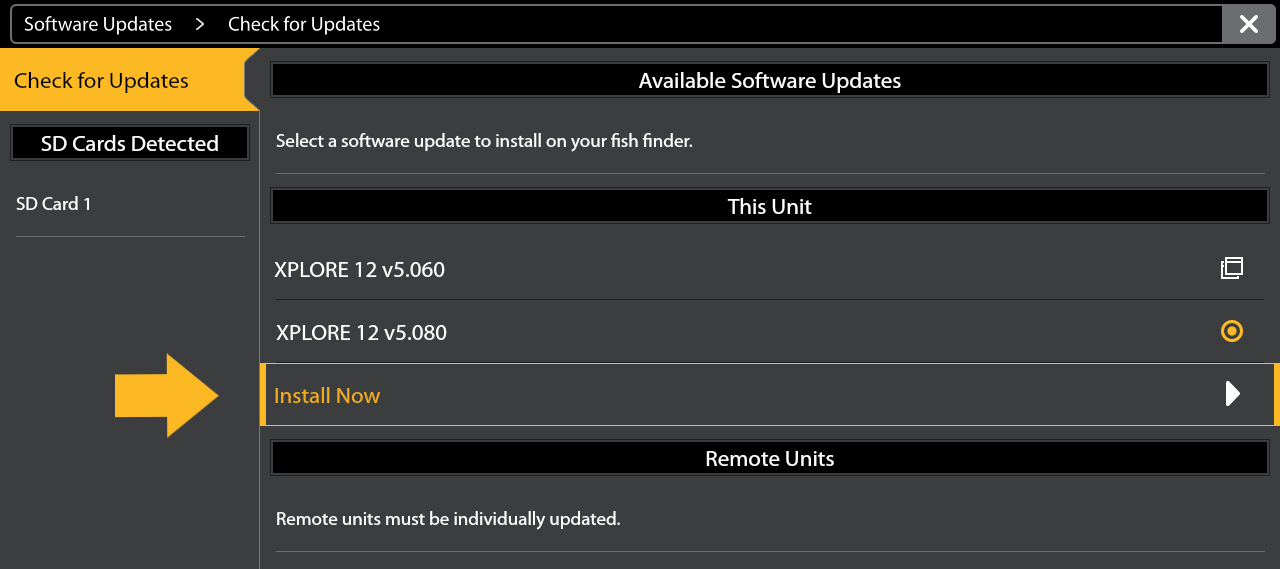

Update Method Using and SD Card:
  1. With software update card already in the unit, power on and follow the on-screen prompts to start in Normal Mode.
  2. Press the HOME key

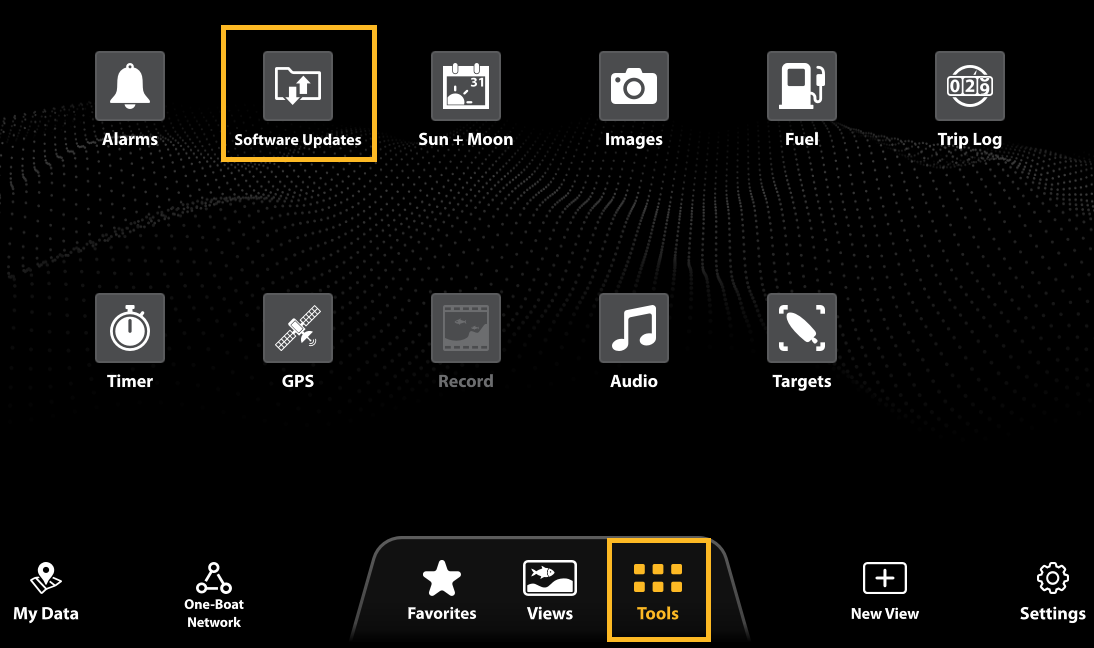

  3. Select the Tools widget from the Home Screen.
  4. Tap the Software Updates icon.
  5. From the Software Update tab, scroll to This Unit
  6. Confirm that the most current version of software is selected from the list. Select Install Now
    • Important! Do NOT remove the SD card or power off your fish finder until the software update is complete.

Software Prior to 6.090
