Requirements
Wireless Connectivity will be standard on Advanced GPS Trolling Motors (2027-present) and available via software updates on 2024-present trolling motors equipped with Advanced GPS. To use Wireless Connectivity, you will need:
- Compatible Trolling Motor:
- Ultrex QUEST
- Ulterra QUEST
- Riptide Instinct QUEST
- Terrova QUEST and Riptide Terrova QUEST
- Ultrex
- Ulterra
- Terrova and Riptide Terrova
- PowerDrive and Riptide PowerDrive (equipped with Advanced GPS Navigation)
- Compatible Fish Finder: (with updated software)
- A Series
- X Series
- APEX
- XPLORE
- SOLIX G3
Pairing a Trolling Motor to a Fish Finder
Note: If you have an Ethernet cable connected to the short cable beneath the trolling motor head, disconnect to use wireless connectivity.
Note: The Fish Finder paired to the trolling motor will share trolling motor control with all other Integrated Fish Finder.
- Minn Kota Trolling Motor with Advanced GPS Navigation
- Minn Kota Fishing App
- Shallow Water Anchors - One wireless connection per pair (one connection if using a single Shallow Water Anchor)
- Cannon Optimum Downriggers - One wireless connection for up to 4 linked downriggers
Note: If the connection cable for the trolling motor Ethernet cable is missing, part number 2390230 (MSV), contact technical support to order a replacement.
Wireless Connection
- Update all Fish Finder, trolling motor and accessories to current software, Finding Software Updates.
- Press Home.
-

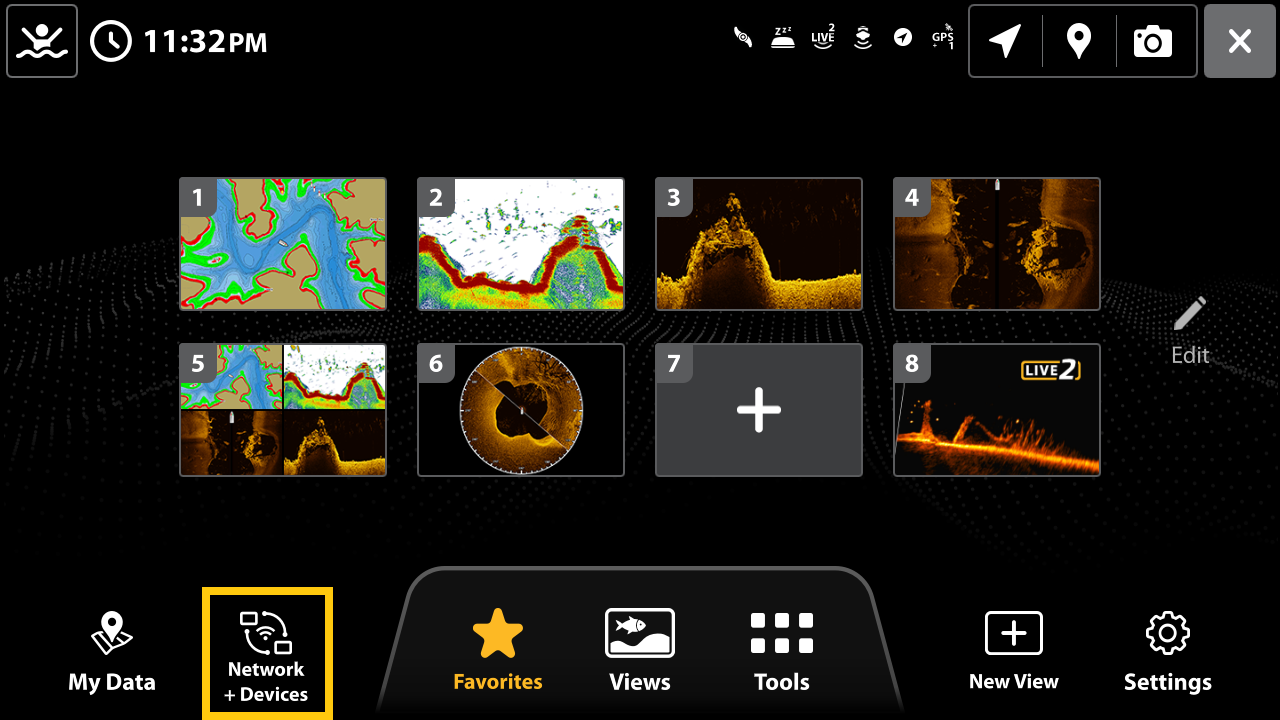

Tap on Network + Devices.
-

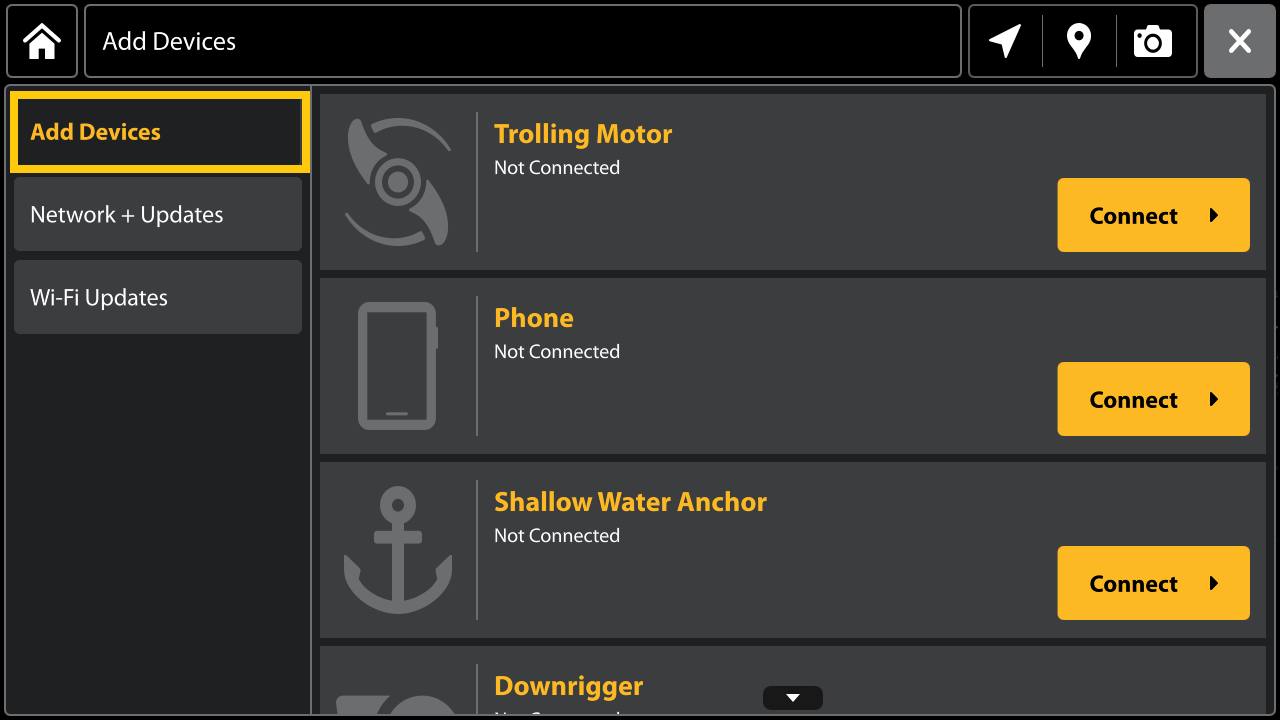

Select Add Devices.
-

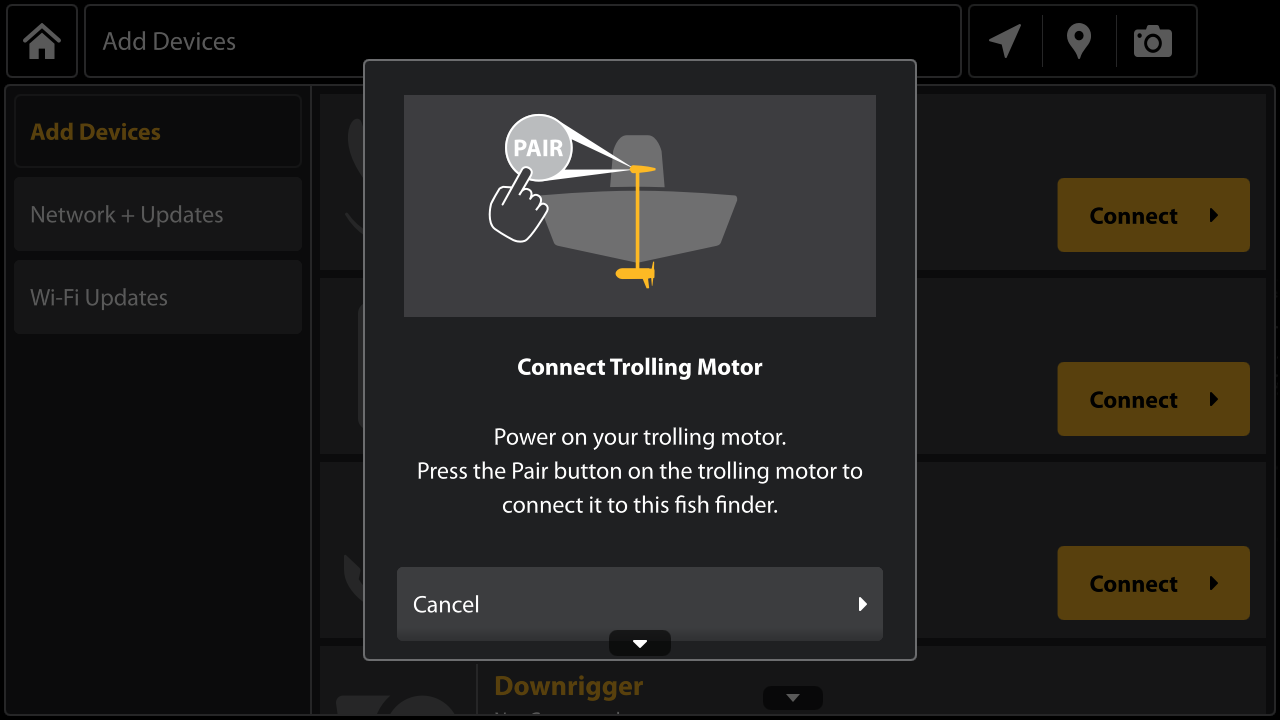

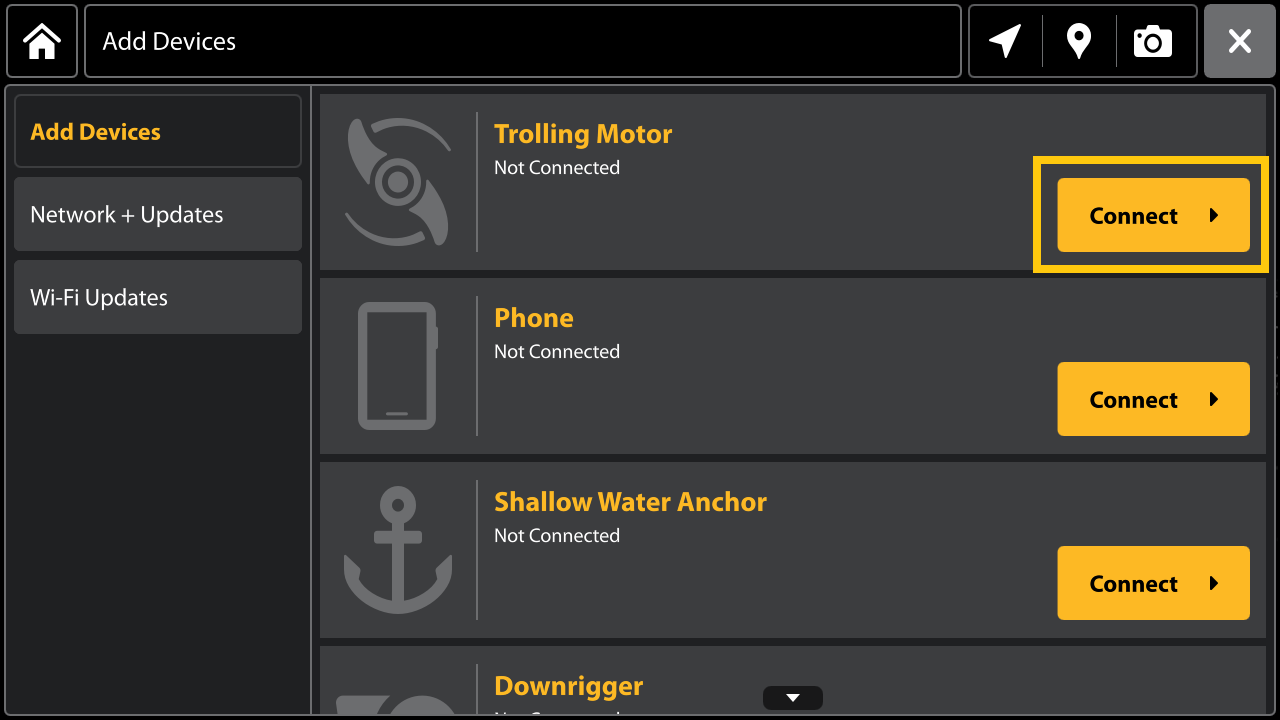

Under Trolling Motor, choose Connect.
-

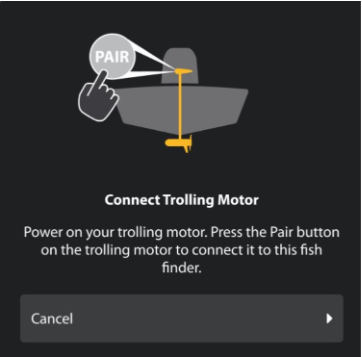

Follow the onscreen prompts to pair the trolling motor to the Fish Finder. While in pairing mode, the trolling motor will emit a steady tone. The trolling motor will emit a steady tone when Pair is pressed. Three long beeps will be heard from the trolling motor when pairing is successful.
- If Trolling Motor or Intelligent Depth Control setup appears, complete them.
Moving a Wireless Connection
- Press Home.
-
Select Network + Devices.
-
On the left, tap Add Devices.
-

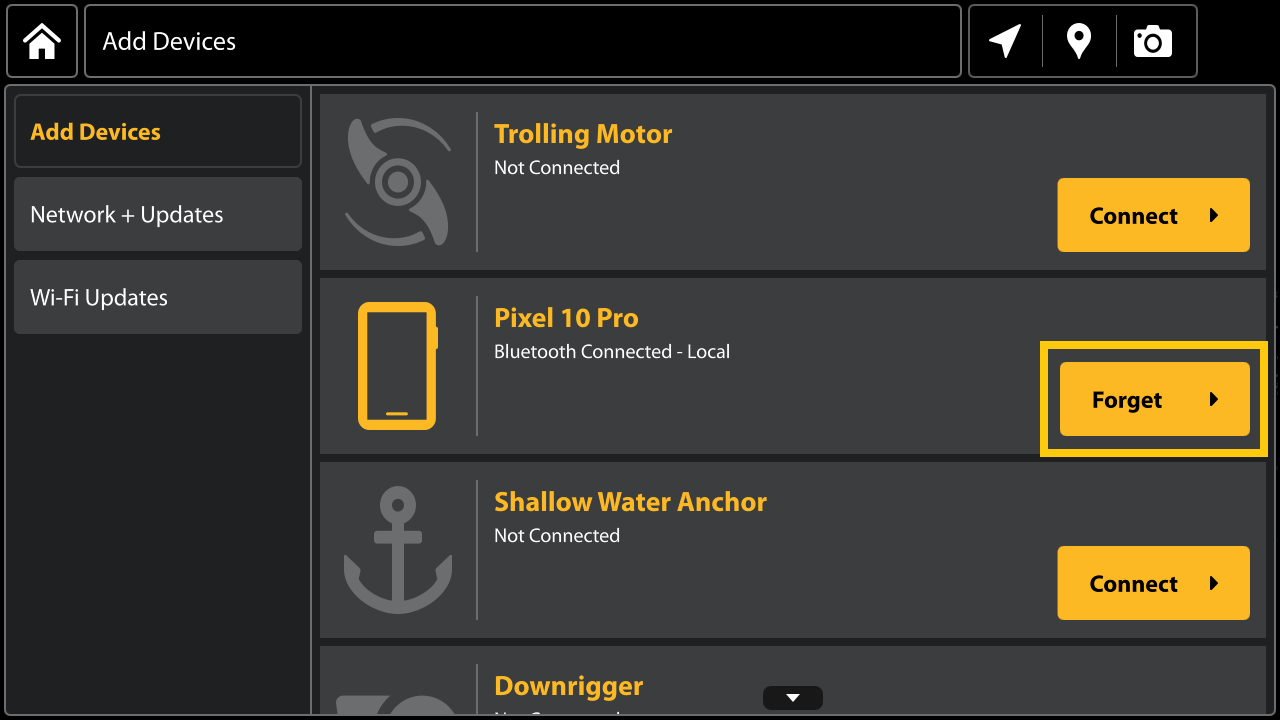

On the right, choose Forget for the desired device.
-

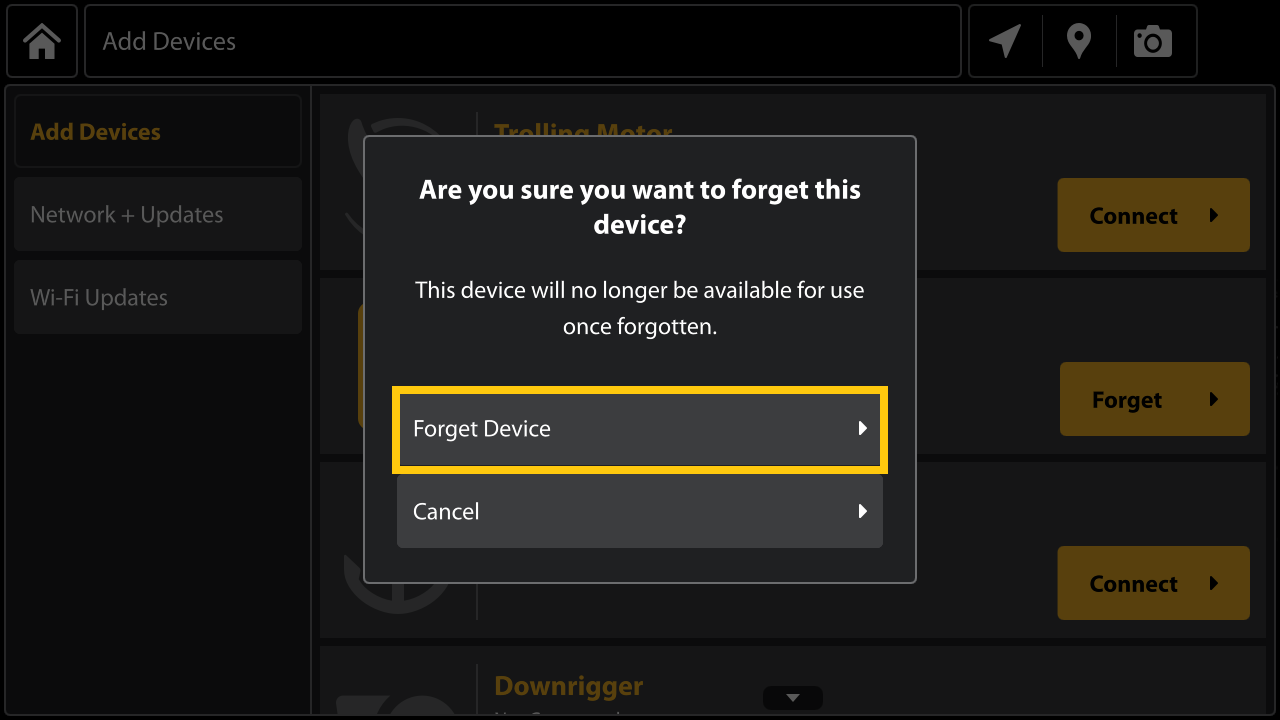

Tap Forget Device.
- Pair the trolling motor to the Fish Finder, Pairing Trolling Motor to a Fish Finder.

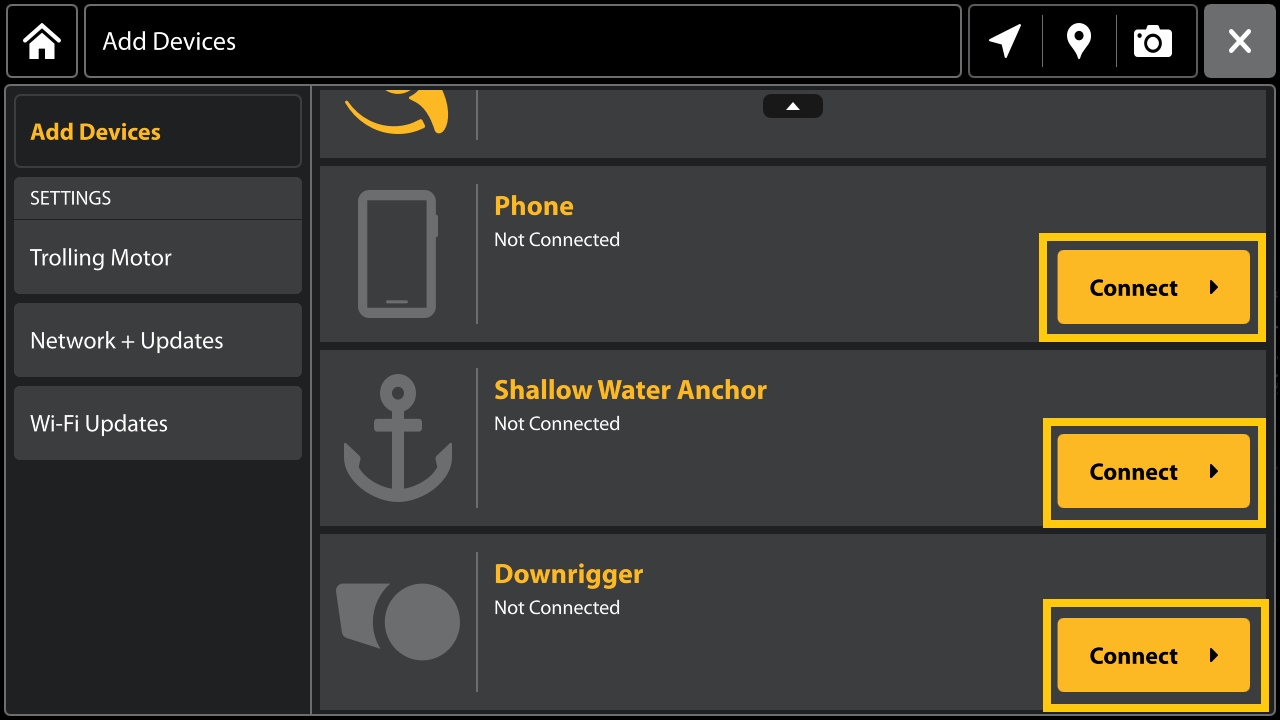

- Add the Shallow Water Anchor(s), Minn Kota Fishing App or Downrigger(s) to another Integrated Fish Finder by selecting the appropriate connect option.
- Press Home.
-
Select Network + Devices.
-
On the left, tap Add Devices.
-
Click Connect on desired device and follow the onscreen instructions. A Fish Finder can be paired with only one non-trolling motor device or app. If you connect one non-trolling motor device to your Fish Finder, and want to add another device, you must use another Fish Finder on the Integrated System.
Troubleshooting Wireless Connectivity
- If pairing between the trolling motor and Fish Finder is unsuccessful, restore factory defaults on the Fish Finder.

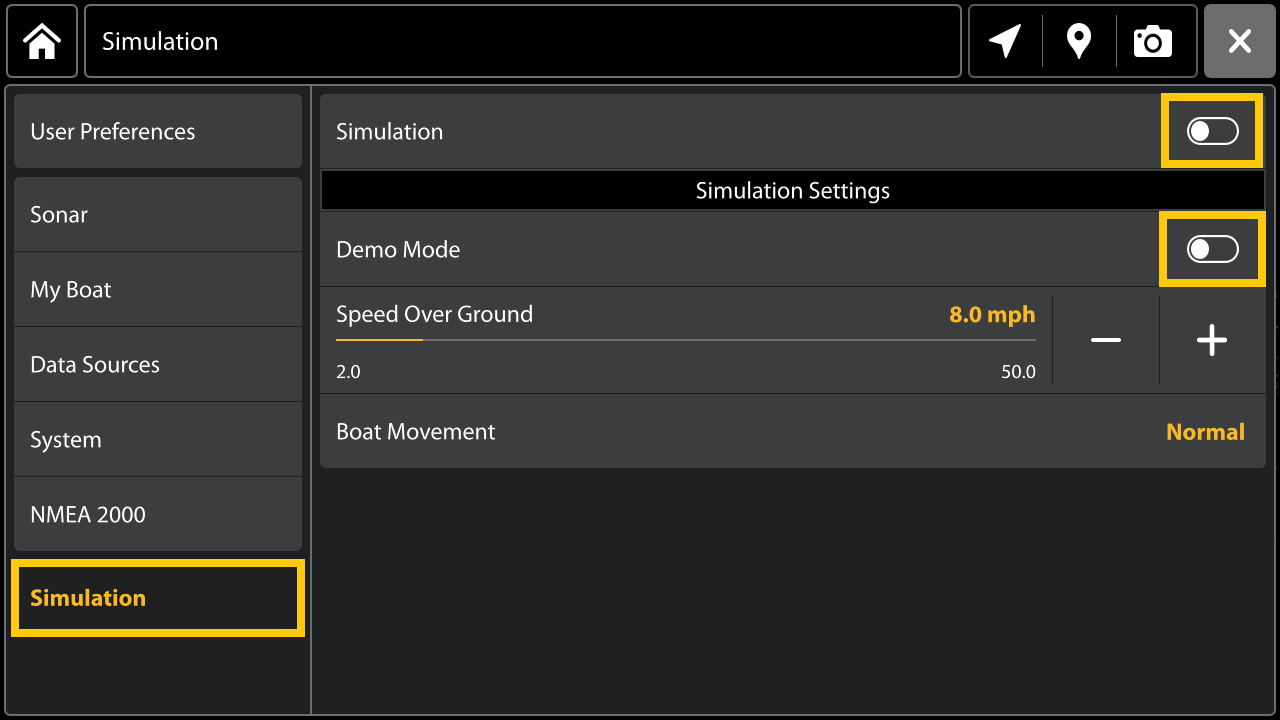

- Verify Simulation and Demo Mode are turned off.
- Press Home.
-

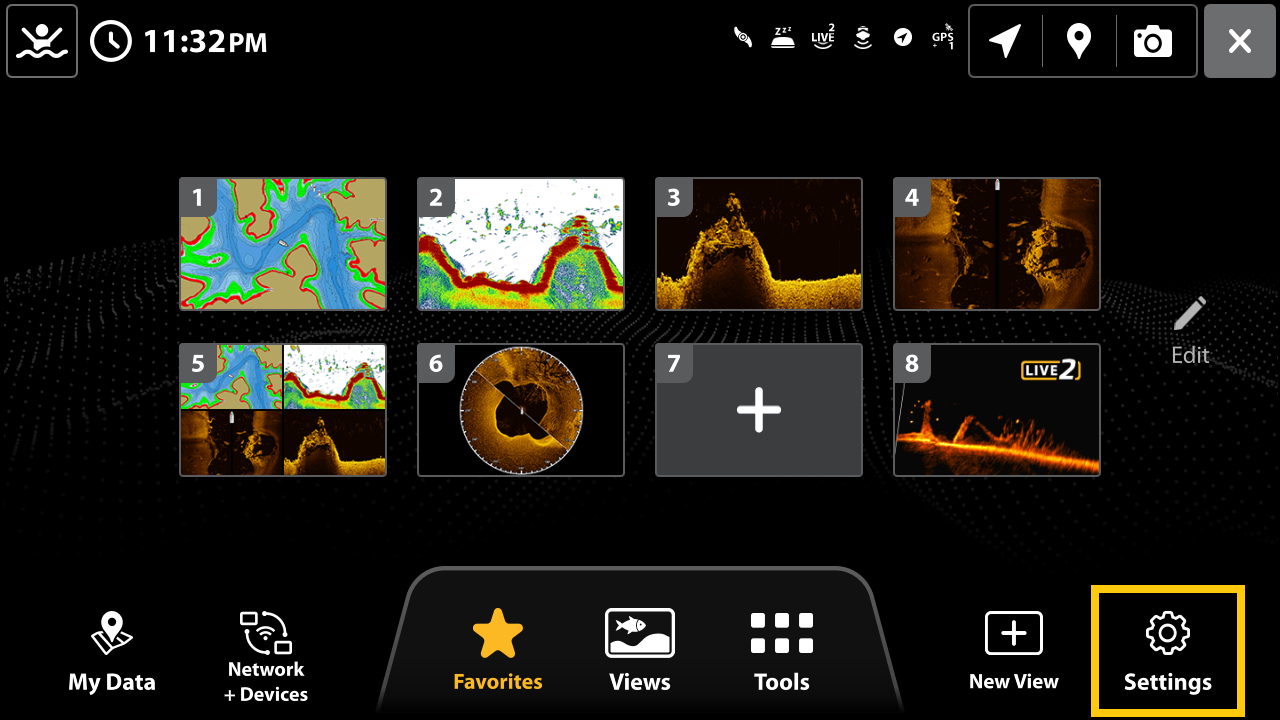

In the lower right corner, select Settings.
- On the left, choose Simulation. Verify Simulation and Demo Mode are turned off.
- Reset the trolling motor by turning it off for 5 seconds and then powering the motor back on.
-
Pair Shallow Water Anchor(s), Minn Kota Fishing App or Downrigger(s) to the Fish Finder.
Pairing a non-Trolling Motor Device
- Press Home.
-
Select Network + Devices.
-

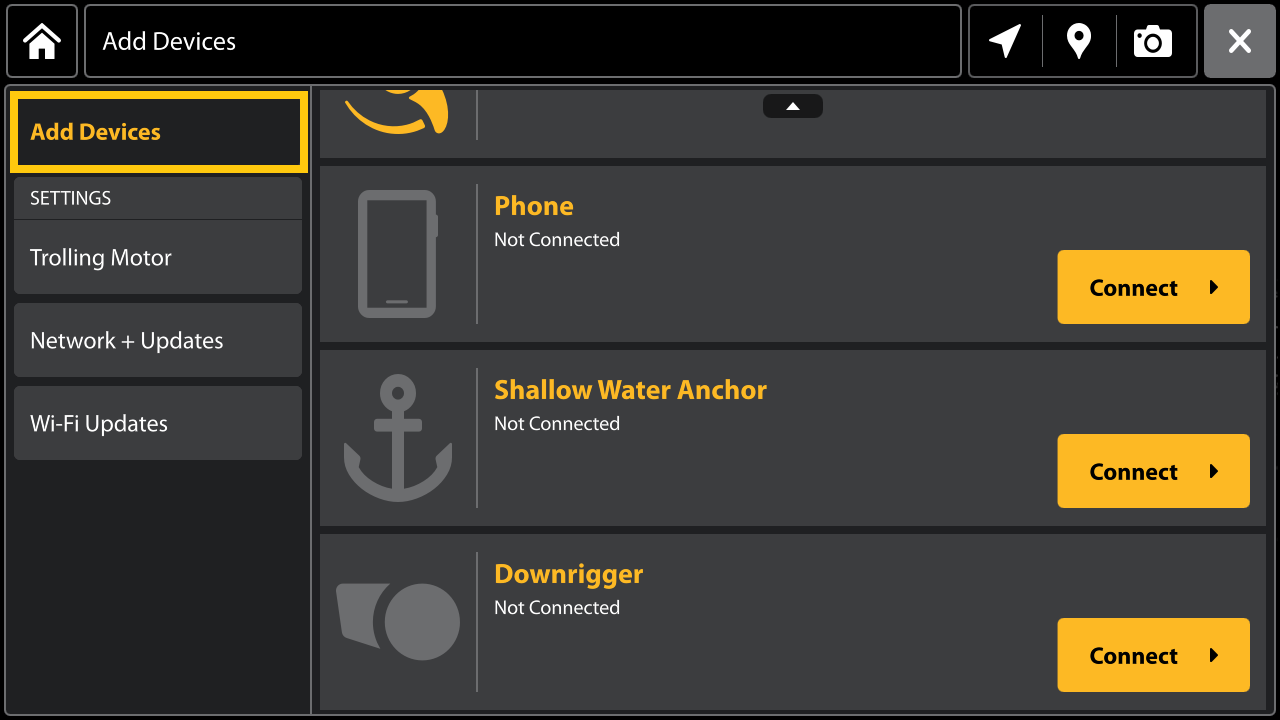

On the left, tap Add Devices.
-
Click Connect on desired device and follow the onscreen instructions. A Fish Finder can be paired with only one non-trolling motor device or app.
- Pair the trolling motor.
-
If pairing is unsuccessful, restore network settings on the Advance GPS Navigation wireless remote.

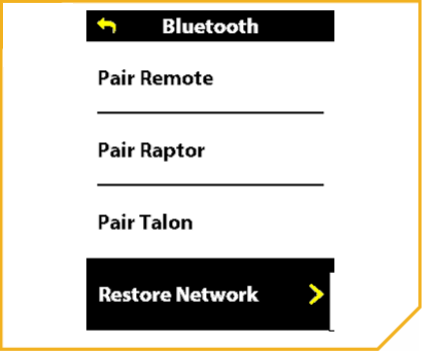

Restore Network Settings
-
On the Advance GPS Navigation wireless remote, press Menu.
-
Use the Speed Up or Speed Down button to find Bluetooth. Use the Steer Right button to select Bluetooth.
-
Use the Speed Up or Speed Down button to highlight Restore Network. Use the Steer Right button to select Restore Network.
- Re-pair devices:
-
- Pair the trolling motor.
- If the trolling motor will not pair, connect the trolling motor to the Ethernet network or Fish Finder by using the Ethernet cable included with your trolling motor.
