Products that are compatible with Humminbird AIS include:
X Series, APEX, XPLORE and SOLIX
- All X Series
- All APEX
- All XPLORE
- All SOLIX

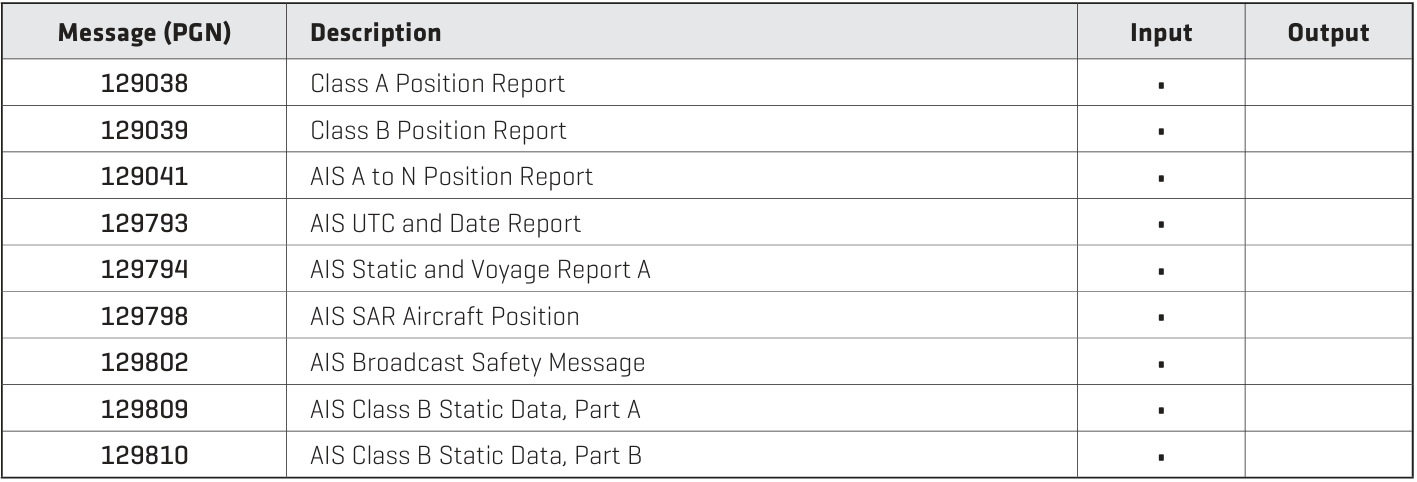

NMEA 2000 AIS Messages (PGN) for X Series, APEX, XPLORE and SOLIX Series
The following NMEA 2000 input/output messages are available when NMEA 2000 is turned on and an AIS is detected and Selected as a source on the NMEA 2000 Network.
HELIX Series Networking Models:
- All HELIX 15
- All HELIX 12
- All HELIX 10
- All HELIX 9
- All HELIX 8
- HELIX 7 G4N series, HELIX 7 G3N series, HELIX 7 G2N series
ION Series
- ION 10 Series
- ION 12 series
ONIX Series
- ONIX 10 Series: ONIX 10 ci SI NT combo, ONIX 10 ci NT combo, ONIX 10 ci SI Combo, ONIX 10ci Combo
- ONIX 8 Series: ONIX 8 ci SI NT combo, ONIX 8 ci NT combo, ONIX 8 ci SI Combo, ONIX 8ci Combo
Numbered Series networking models:
- 700 Series Models: 788ci HD, 788ci HD DI, 798ci HD SI
- 800 Series: 858c, 858c HD, 858c DI, 858c HD DI, 859ci HD, 859ci HD DI, 859ci HD XD, 898c SI, 898c HD SI, 899ci SI
- 900 Series: 958c, 958c HD, 958c DI, 958c HD DI, 959ci HD, 959ci HD DI, 959ci HD XD, 998c SI, 998c HD SI, 999ci HD SI
- 1100 Series: 1157, 1158, 1159ci HD, 1159ci HD DI, 1197c SI, 1198c SI, 1199ci HD SI
To connect an AIS to a Minn Kota fish finder, please follow the instructions in the AIS Connection Guide
