On the Traxxis, Endura Max, Endura, and Riptide Transom, you can rotate the head or control box of the motor to use it on the bow of the boat.
Adjusting a Transom Mount on the Bow

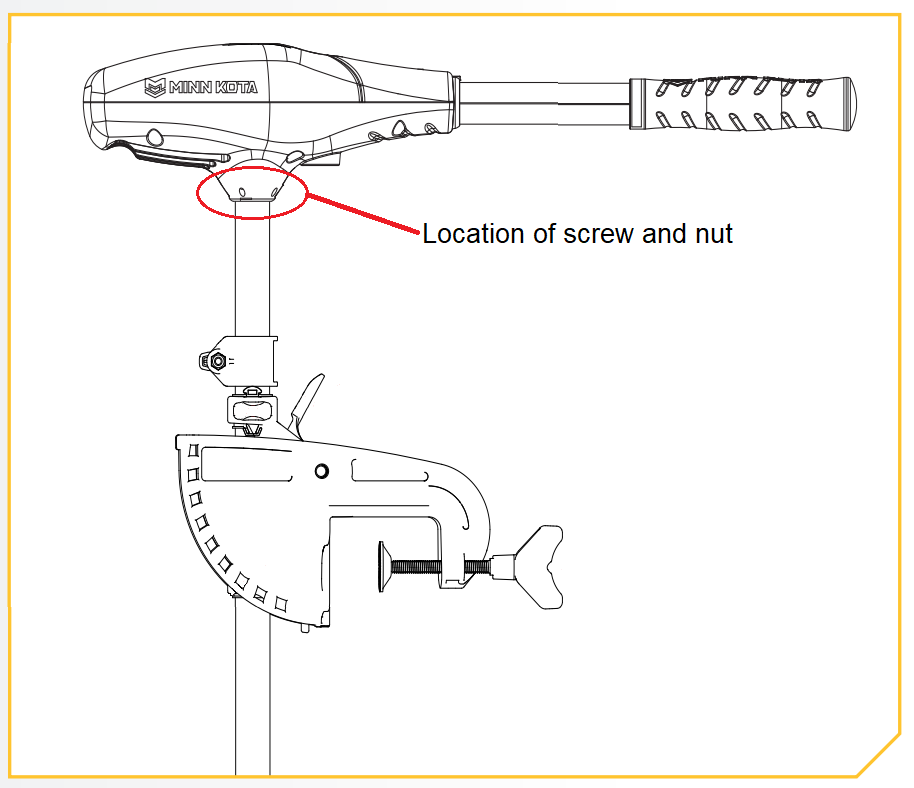

- To rotate the head or control box, remove the screw and nut at the base of the control box.
- Rotate the control box 180 degrees on the motor tube.
- Reinstall the locating screw and nut (being careful not to pinch or damage the motor wires inside the tube), tighten the screw and nut as required, and the job is complete.
