If your Bluetooth i-Pilot Remote shows "Motor Not Found" the i-Pilot remote is not able to communicate with the i-Pilot Controller built into the trolling motor.
Jump to:
- Troubleshooting "Motor Not Found"
- Pair your Remote
- Manual and Quick Reference Guide
Troubleshooting "Motor Not Found"
- Verify the i-Pilot Controller has power.
- For PowerDrive Motors press the “Push-to-Test” battery meter to verify voltage to the motor and check the connection to the foot pedal plug is secure.
- For all other motors verify the motor is turned on, a system ready or power light will be illuminated (on the base of the motor on all Terrova/Ulterra Models, on the foot pedal on Ultrex).
- Re-pair/re-learn the remote to the Controller.
- Turn the system OFF and then back ON (for PowerDrive models, disconnect then reconnect power).
Pair your Remote
- Power on your motor
- Ultrex- Press the power button on the foot pedal.
- Ulterra and Riptide Ulterra- Press the power button on the base of the motor.
- Terrova and Riptide Terrova- Press the power button on the base of the motor.
- PowerDrive and Riptide PowerDrive- Deploy the motor.

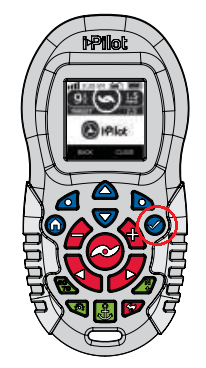

- Power on the remote by pressing the OK button in the top right corner of the keypad.
- Press the Home button.
- Use the Menu Up and Menu Down buttons to find the System menu at the bottom of the display screen.
- Use the Right Softkey to select the System menu.
- Use the Menu Up and Menu Down buttons to find the Pair option.
- Before selecting the Pair Option, locate the Pair Button on the top of the Control Head. Press and hold the Pair button. A consistent tone will be emitted from the Control Head.
- On the remote, use the Ok button to select the Pair option from the System menu. The Remote will scan for the motor.
- Once successfully paired, 3 longer beeps will be emitted from the Control Head and the remote will be paired.
