This convenient adapter allows quick thru-hull connections to an AC extension cord – with no cutting or splicing required – using the male AC plug from any of our chargers. The watertight cover and gasket prevent corrosion on the AC plug when it isn’t in use. Available in black and white.
Jump to:
- MKR-21 On-Board Power Port
- MKR-23 On-Board Power Port
- MKR-21 & MKR-23 On-Board Power Port Installation
- Manual
MKR-21 On-Board Power Port, item number 1865108
- Convenient adapter that allows quick thru-hull connections to an AC extension cord – with no cutting or splicing of wires required – using the AC plug from any Minn Kota charger. The splash resistant cover and gasket prevent corrosion on the AC plug when not in use.
- Color: black`
- Click here for purchase options
- MKR-21 Instructions
MKR-23 On-Board Power Port, item number 18651010
- Convenient adapter that allows quick thru-hull connections to an AC extension cord – with no cutting or splicing of wires required – using the AC plug from any Minn Kota charger. The splash resistant cover and gasket prevent corrosion on the AC plug when not in use.
- Color: white
- Click here for purchase options
- MKR-23 AC Power Port Instructions
MKR-21 & MKR-23 On-Board Power Port Instructions
Tools and Resources Required
- Drill
- Pen or similar marking tool
- 1/8” drill bit
- 9/64” drill bit
- 1-7/8” hole saw
- Screwdriver
Instructions
- Select a location on the boat that is at least 21” away from all batteries and fuel fill lines.
- Drill a 1/8” pilot hole in the center of the selected location.
- Using the pilot hole, align a 1-7/8” hole saw to cut the mounting hole.

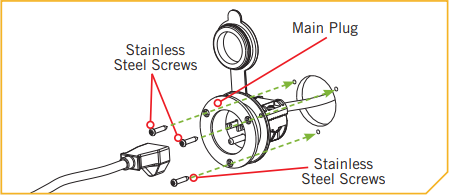

- Place the AC Power Port in the 1-7/8” hole to mark and drill holes for the 3 mounting screws.
- Put the AC cord through the 1-7/8” hole from the inside the boat and place the AC plug into the AC Power Port and tighten the 2 screws.
- Mount the AC Power Port in place with the 3 Stainless Screws provided.
- Your new AC Power Port is now ready for use
