Trolling Motor Plug and Quick Connect Options

There are several options for quickly plugging in your trolling motor and then disconnecting your motor when you are done using it.

Jump to:

• Trolling Motor Plug
  • Trolling Motor Plug and Receptacle / MKR-28, item number 1865120
• Quick Connect Options
  • Trolling Motor Quick Connect Plug / MKR-20, item number 1865107
  • Quick Connect Plug / MKR-12, item number 1865101
• Instruction Sheets
  • Click here for the MKR-28 Installation Instructions
  • Click here for the MKR-20 Instruction Sheet
  • Click here for the MKR-12 Instructions

Trolling Motor Plug

Trolling Motor Plug and Receptacle / MKR-28, item number 1865120

• The MKR-28 trolling Motor Plug and Receptacle provides continuous power and is rated to 60 amps up to 48V.
• Designed for freshwater and saltwater applications, silver plated terminals provide reliable use in the harshest conditions.
• This plug is a recommended replacement for the MKR-18 Plug & Receptacle (part number 1865102) and MKR-26 (part number 1865128).
• Package includes: trolling motor plug with 18” wire lead, receptacle with 24” wire lead, mounting faceplate, dust cap, 1-10 AWG splicer, 1 AWG ferrule, 2 AWG ferrule, 4 AWG ferrule, heat shrink, hex wrench and installation manual.
• Trolling Motor Plug and Receptacle provides continuous power rated to 60 amps up to 48V.
• Sealed waterproof design.
• Secure threaded electrical connection.
• Adjustable mounting orientations.
• Continuous power rated to 60 amps up to 48v.
• 8 AWG wire leads.
• Compatible with 1 - 10 AWG wire sizes.
• Purchasing a spare trolling motor plug end for an additional trolling motor
  You can purchase the individual trolling motor plug end for the MKR-26 through our Parts Portal. The part number for the trolling motor plug end assembly kit is 2776707. Click here for purchase options.
• Purchasing a spare receptacle end for an additional boat
  You can purchase the individual trolling motor plug end for the MKR-26 through our Parts Portal. The part number for the receptacle is 2776708. Click here for purchase options.
• Click here for the MKR-28 Installation Instructions
• Click here for purchase options for the MKR-28

Quick Connect Options

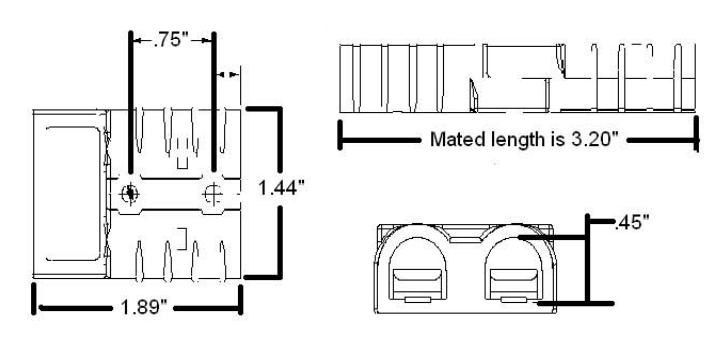

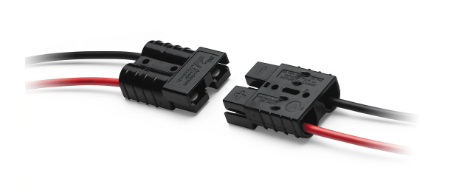

Trolling Motor Quick Connect Plug / MKR-20, item number 1865107

• This heavy-duty trolling motor connector uses a snap-lock design for 6- to 12-guage wire.
• The kit includes two plug halves, four contacts, and four solder plugs for securing wire leads into the contacts (wire not included).
• Click here for the MKR-20 Instruction Sheet
• Click here for purchase options for the MKR-20

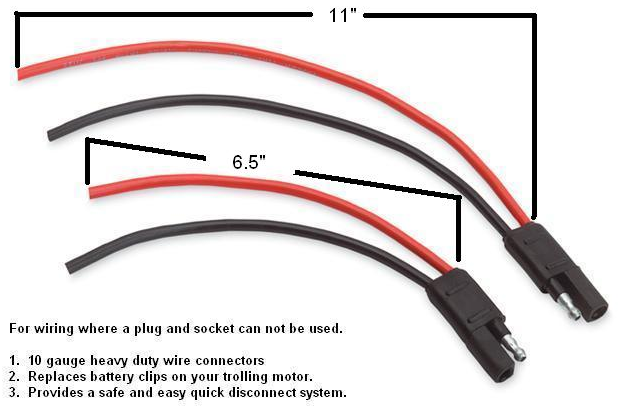

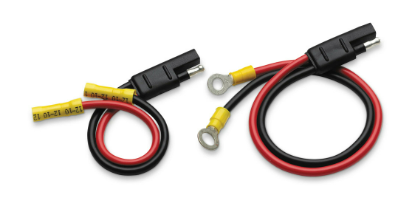

Quick Connect Plug / MKR-12, item number 1865101

• Heavy-duty 10-gauge connectors.
• Provides a safe, easy and quick disconnect system for wiring where a plug and socket cannot be used.

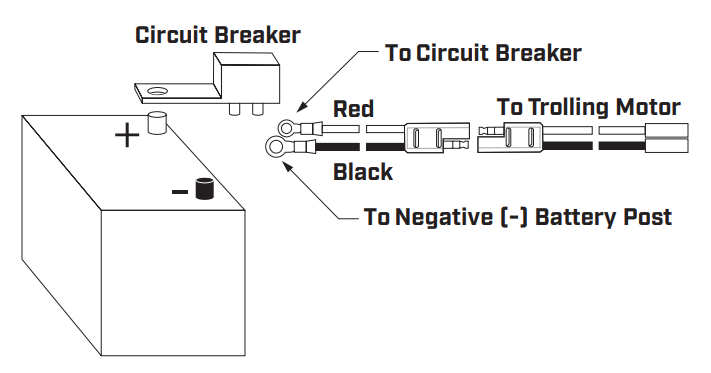

• Click here for the MKR-12 Instructions
• Click here for purchase options for the MKR-12
