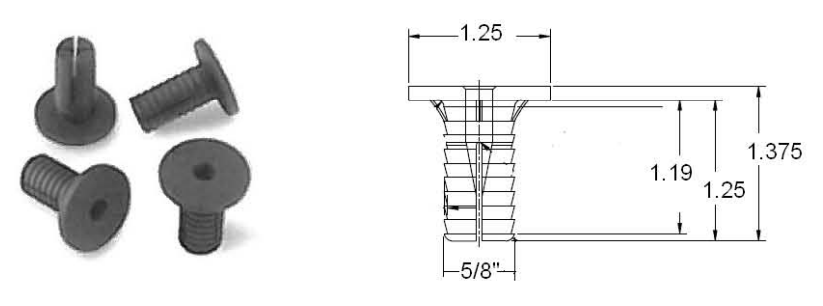

MKA-8 Quick Nuts, item number 1865100 (Obsolete)
Mount motors and accessories here there is limited space or when there's no access from below (as required by standard nuts and bolts).
Installation of Quick Nuts
- Determine a suitable, level mounting surface on your boat.
- Using the motor mount base as a template, mark and drill four 5/8" holes.
- Insert the Quick Nuts into the holes.
- Align motor mount on top of Quick Nuts.
- Place the flat washers in the mounting counterbores of scissors mount or on the flat surface of the PowerDrive.
- Turn the supplied, self-threading Phillips head screws into the Quick Nuts. Make sure to apply sufficient downward force to prevent the Quick Nuts from rotating in the hole.
Click here for the installation instructions for the MKA-8 Quick Nuts, item number 1865100.
