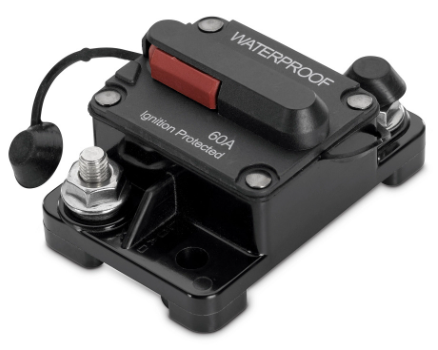

The Circuit Breaker MKR-19, item number 1865106, is a 60 amp circuit breakers designed to work with Minn Kota trolling motors. It protects boat trolling motor wiring from electrical damage and feature a 60 amp rating with manual reset. The MKR-19 is fully waterproof and compatible with all 12-, 24- and 36-volt systems.
The Circuit Breaker MKR-19 is no longer available. It has been replaced by the Circuit Breaker MKR-27, item number 1865115. Click here for MKR-27 purchase options.
- Installation
- Diagrams
- Instruction Sheet
Installation
The circuit breaker is installed on the positive battery lead wire coming from the trolling motor to the battery(ies).
- Determine a suitable mounting location for the Circuit Breaker in your boat. (We recommend installing the breaker as close as possible to the battery / batteries.)
- Mount the Circuit Breaker using the two holes in the breaker base. (Mounting hardware not included.)
- Connect the trolling motors positive (+) power cable to the terminal marked “AUX” on the Circuit Breaker.
- Connect the Circuit Breaker terminal marked “BAT” to the positive (+) battery post.

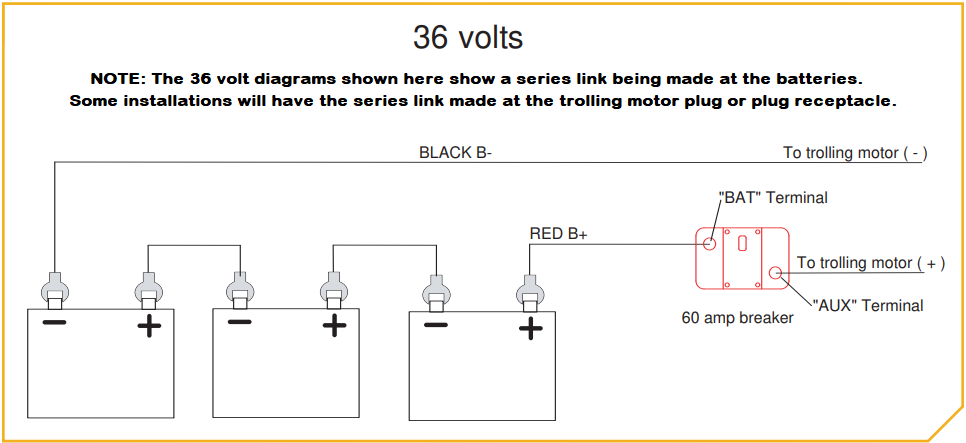

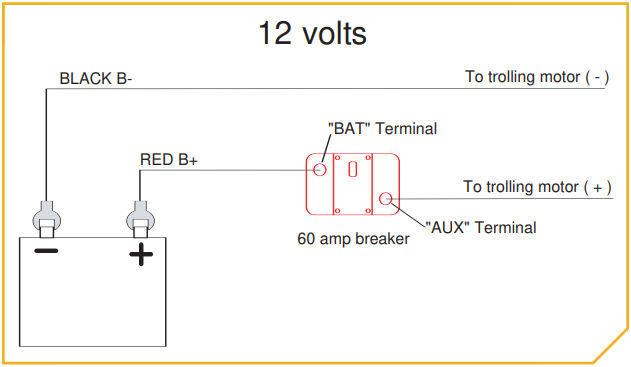

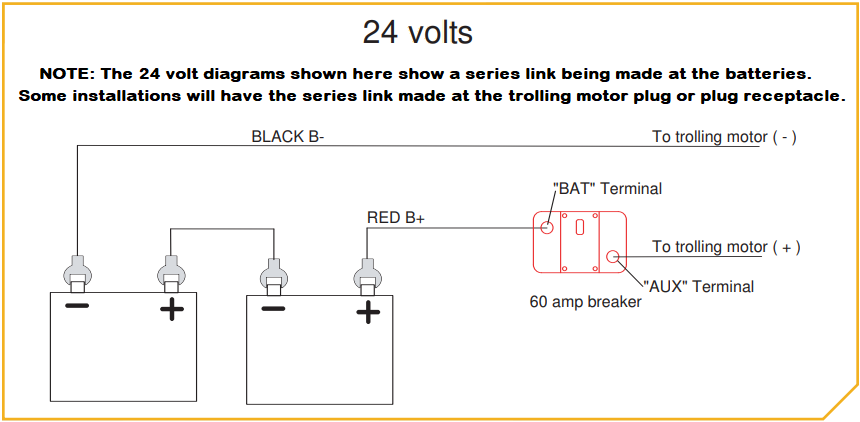

(See diagrams below for 12, 24 and 36v use.)
