CoPilot is a wireless remote control system designed for Minn Kota trolling motors. It allows users to control speed, steering, and on/off functions remotely, offering convenience and flexibility. CoPilot is compatible with select Minn Kota trolling motors, including models equipped with PowerDrive, PowerDrive V2, and Riptide PowerDrive systems. Compatibility may vary depending on the specific motor model and year of manufacture.
Jump to:
Compatibility | Features | PowerDrive Remote Functions | Terrova Remote Functions | Installation | Learn a Remote | Range of the Remote | Manuals
Compatibility
CoPilot is compatible with select Minn Kota trolling motors, including select PowerDrive, PowerDrive V2, Riptide PowerDrive, Terrova, and Riptide Terrovas. Compatibility may vary depending on the specific motor model and year of manufacture. Note
- PowerDrive (2006 and prior)
- PowerDrive V2 (2007-2016)*
- Riptide PowerDrive V2 (2007-2016)*
- PowerDrive (2017-2023)*
- Riptide PowerDrive (2017-2022) *
- Terrova (2007-2023)
- Riptide Terrova (2007-2022)
*Note: CoPilot stopped being manufactured at the end of 2022, however you may be able to find the upgrade kit Item #1866155 receiver and remote through other sources.
Features
CoPilot offers a range of features designed to enhance the functionality and convenience of Minn Kota trolling motors. Here are some key features:
- Wireless Remote Control: CoPilot allows you to control your trolling motor wirelessly, providing freedom of movement on your boat.
- Speed Control: Adjust the speed of your trolling motor with precision using the remote.
- Steering Control: Easily steer your boat with the remote, offering smooth and responsive navigation.
- On/Off Control: Turn your prop on or off remotely for added convenience.
These features make CoPilot a valuable tool for anglers and boaters seeking greater control and flexibility on the water.
PowerDrive Remote Functions
-
Part Number: 2774023 (Obsolete)
- You can use the item number to locate this remote through other sources.
- Battery size: CR2032
The PowerDrive CoPilot Remote is compatible with all PowerDrive CoPilot Systems.
-
Prop On/Off
Turns the Prop on and off. -
Steer Left/ Steer Right
Causes motor to turn left or right as long as the button is held down. -
Increase/ Decrease Speed
Pressing and releasing these buttons causes the speed to increase or decrease by one level. It is adjustable from level 0-10. (0 is off)
Terrova Remote Functions
-
Part Number: 2774095 (Obsolete)
- You can use the item number to locate this remote through other sources.
- Battery size: CR2032
The Terrova CoPilot Remote is compatible with all Terrova CoPilot Systems. Click here for Terrova Remote purchase options.
-
Prop On/Off
Turns the Prop on and off. -
Steer Left/ Steer Right
Causes motor to turn left or right as long as the button is held down. -
Increase/ Decrease Speed
Pressing and releasing these buttons causes the speed to increase or decrease by one level. It is adjustable from level 0-10. (0 is off) -
AutoPilot On/Off
Used to turn the AutoPilot function on and off (if equipped) -
High-Speed Bypass (HSB)
It toggles the speed between the current speed and the maximum speed (level 10) Terrova models 2017 and newer, this requires a double button press to activate.
Installation

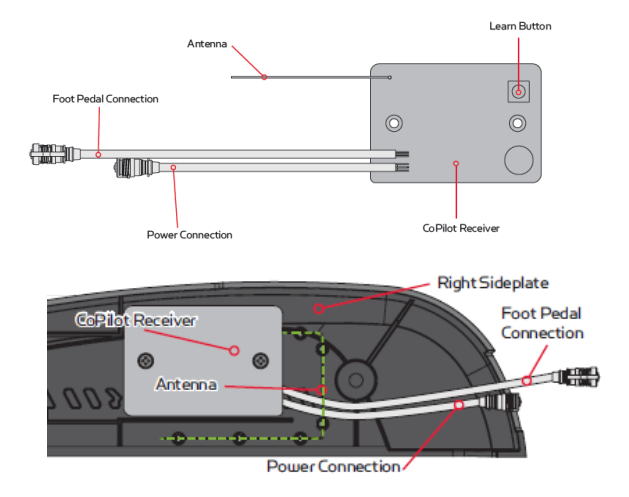

Installation for PowerDrive and Riptide PowerDrive (2017-2023)
-
Item #1866155 Obsolete
- You can use the item number to locate this kit through other sources.

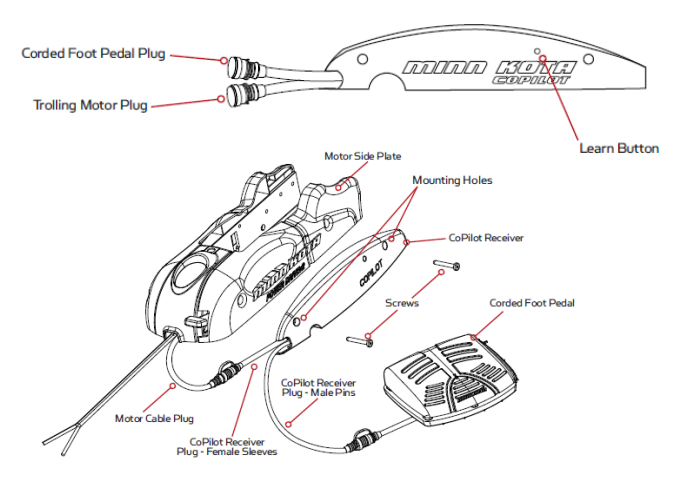

Installation for PowerDrive V2 and Riptide PowerDrive V2 (2007-2016)
- Freshwater Item #1866150 (Obsolete)
- You can use the item number to locate this kit through other sources.
- Saltwater Riptide Item #1866151 (Obsolete)
- You can use the item number to locate this kit through other sources.

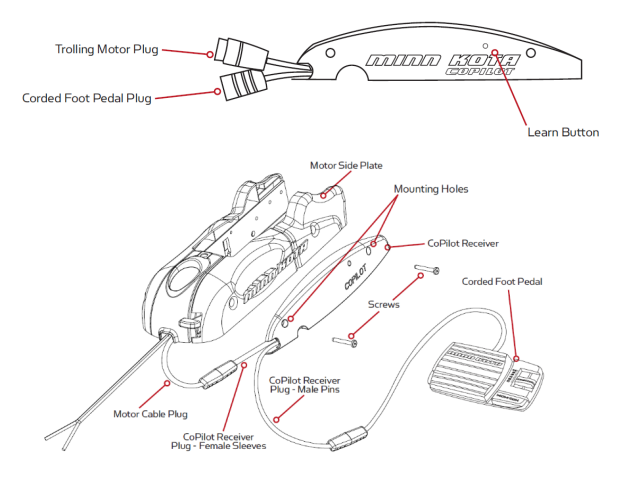

Installation for PowerDrive (2006 and older)
- Freshwater Item #1866100 (obsolete)
- You can use the item number to locate this kit through other sources.
-
Riptide Saltwater Item #1866101
- You can use the item number to locate this kit through other sources.
Installation for Terrova and Riptide Terrova (2007-2023)
- Item #1866160 (Obsolete)
- You can use the item number to locate this kit through other sources.

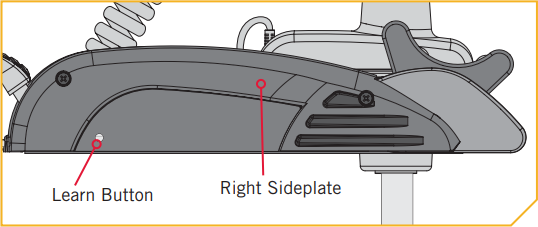

This will mount on the inside of the Right Sideplate and will be held in place with 2 screws.
Learn a New CoPilot Remote
Your receiver may learn up to ten remotes. Any additional remotes can be "Learned" using the following steps. This will also work to "Learn" any remote if all remotes are erased from the receiver.
Add Remotes
- Using a small blunt object such as a pen or screwdriver, press and hold the Learn Button located on the side of the receiver. The receiver will emit a continuous tone.
- Press any button on the remote. The receiver will beep 4 times confirming that it has “Learned” the remote successfully.
Remove Remotes
- Remove power from the CoPilot receiver by disconnecting the Power Cables, or by making sure that the breaker, if equipped, is "off."
- Press and hold the Learn Button and power up the CoPilot receiver by reconnecting the Power Cables, or by making sure that the breaker, if equipped, is "on."
- Continue to hold the Learn Button down for 10 seconds. During this time the receiver audio will emit a warble sound, slowly transition to a constant beep and then shut off.
- Release the Learn Button and the receiver will reboot. The receiver will emit a 2 second long beep indicating memory is empty. This audio pattern will occur each time the receiver powers up until a
remote is "Learned."
Range of the Remote
The range of the CoPilot Remote is 30 feet. The range of the remote will be greatly reduced if it is used near or mounted to any metal object including aluminum or steel. It is also recommended that the front end of the remote not be obstructed during use.
