Raptor Shallow Water Anchor Remotes

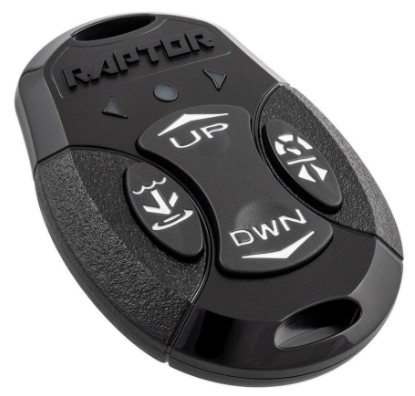

Raptors are able to be controlled by handheld remotes. The basic information for using the remote is listed below. Click on the links at the bottom of this page for additional information on using the Raptor, using the foot switch (optional accessory purchased separately) or wireless stomp switches (optional accessory purchased separately).


Pairing the Raptor Remote

Pairing a Remote to One Raptor

  1. Press and hold the Up button and the Down button on the Remote at the same time until the Anchor Selection LEDs and the Mode LED on the Remote begin to scroll red, green, red and red. Then release them.
  2. Immediately press the Pair button on the Indicator Panel located on the Raptor Pump Assembly. The PAIR/Maintenance LED will begin to flash blue. The Raptor and Remote will go into Pairing Mode for 30 seconds. If a signal with three fast beeps occurs, the Raptor and Remote have successfully paired. If 30 seconds pass while in Pairing Mode and they do not successfully pair, a chirp will sound from the Pump Assembly, signaling that the Pairing has timed out.
  3. If the Pair is unsuccessful, repeat the process.

Pairing a Remote to Two Raptors

  1. Press and hold the Up button and the Down button on the Remote at the same time until the Anchor Selection LEDs and the Mode LED on the Remote begin to scroll red, green, red and red. Then release them.
  2. Immediately press the Pair button on the Indicator Panel located on the Pump Assembly of one of the Raptors. The PAIR/Maintenance LED on both Raptors will begin to flash blue. The Raptor and Remote will go into Pairing Mode for 30 seconds.
  3. If a signal with three fast beeps occurs, the Raptor and Remote have successfully paired. If 30 seconds pass while in Pairing Mode and they do not successfully pair, a chirp will sound from the Pump Assembly signaling that the Pairing has timed out.
  4. If the Pair is unsuccessful, repeat the process.

Clearing Paired Remotes or Devices from the Raptor

  1. Retract the anchor on the Raptor by pressing the Up button located on the Indicator Panel on the Pump Assembly
  2. Turn the power to the Raptor "off" by removing the resettable Fuse located on the Raptor Power Cable.
  3. While holding in the Up button on the Indicator Panel, restore power to the Raptor. You will hear a long steady tone.
  4. After the steady tone stops, release the Up button. Wait a full 30 seconds. Remove the fuse to power cycle the Raptor again and then replace the fuse.
  5. The Raptor memory is now clear of all previously paired devices.

Clearing Paired Raptors from the Remote

  1. Press and hold the Up button and the Down button on the Remote at the same time until the Anchor Selection LEDs and the Mode LED on the Remote begin to scroll red, green, red and red. Then release them. The Remote will go into Pairing Mode for 30 seconds.
  2. Once Pairing times out the paired Raptor will be cleared.

Battery

You will need a CR2450 battery for the Raptor Remote.

How to Change the Battery


  1. With the back of the Remote facing you, use a large coin to rotate the Battery Cover counterclockwise until either of the Unlock Icons align with the Arrow.
  2. Remove the Battery Cover and old battery and replace with a new CR2450 coin cell battery. Note the proper polarity of the battery.
  3. Ensure the rubber O-ring is properly seated in the underside of the Battery Cover. Replace battery cover by aligning either of the Unlock icons with the arrow, and pressing the cover down.
  4. Rotate the Battery Cover clockwise using the large coin until the Lock Icon aligns with the Arrow.

Using the Raptor Remote


  • Auto Up Button
    Single press to auto retract the anchor. Press and hold to continually retract the anchor. The anchor will continue to retract when the button is held until the button is released. Also used to pair the Remote to a Raptor.

  • Auto Down Button
    Double press to auto deploy the anchor. Double press and hold the second press to continually deploy the anchor. The anchor will continue to deploy when the button is held until it reaches its full range of operation or until the button is released. Also used to pair the Remote to a Raptor.

  • Anchor Mode Button
    Single press to display the current Anchor Mode. While the mode is displayed, continue to single press through the Anchor Modes to change them. This will toggle through the Anchor Modes of Standard, Rough Water, Soft Bottom and Auto Bottom. Standard Mode is identified when the Mode LED flashes between red and green. Rough Water mode is identified when the Mode LED flashes red and Soft Bottom when the Mode LED flashes green. Auto Bottom Mode is only available on the Active Anchoring Model and is identified by a Mode LED that flashes slowly from green to green and then red to red. On the Active Anchoring Model, the Anchor Mode button will also enable and disable Active Anchoring. Active Anchoring is engaged and disengaged by a single press and hold. When the Mode LED displays green it is enabled and when the Mode LED displays red it is disabled.

  • Speed Button / Anchor Selection Button
    Single press to display the current operating speed. While the speed is displayed, continue to single press through the operating speed to toggle between slow, medium and fast. The Mode LED will flash red three consecutive times at the speed that corresponds with the selected speed. Pressing and holding the button will toggle the remote to control either the Port, Starboard or both anchors (when two anchors are paired in the system). The Raptor Selection LEDs will illuminate to correspond to the anchor(s) selected. The right LED will illuminate when the Starboard anchor is selected and the left LED will illuminate when the Port anchor is selected. Both the right and left LEDs illuminate when both anchors are selected.

Deploy the Raptor from the Remote

  1. To auto deploy the Raptor, double press and then release the Down button on the Remote. To continually deploy the Raptor, double press the Down button and hold the second press.
  2. While auto deploying, the action can be paused by pressing the Down button again. While the anchor is continually deploying, the action can be paused on the Remote by releasing the Down Button.
  3. The paused deployment can be resumed by pressing the Down button again in the same manner.
  4. If continuing to deploy the Raptor, and the anchor gets to its full length of travel, it will stop. If auto deploying the anchor, once the deploying anchor gets to its full length of travel or comes in contact with the bottom, it will go through an anchoring sequence determined by the current Mode and then stop.

Retracting the Raptor from the Remote

  1. To auto retract the Raptor, press and then release the Up button on the Remote. To continually retract the Raptor, press the Up button and hold.
  2. While auto retracting, the action can be paused by either pressing the Up button again, or by pressing the Down button. While the anchor is continually retracting, the action can be paused on the Remote by releasing the Up button.
  3. The paused retraction can be resumed by pressing the Up button again in the same manner.
  4. If auto retracting, the anchor will stop when the anchor is fully retracted. If continually retracting the button should be released when the anchor is fully retracted.

Toggle the Mode from the Remote

  1. Single press the Anchor Mode button to display the current Mode.
  2. While the Mode is displayed via the Mode LED, continue to single press through the Modes to toggle between Standard, Rough Water, Soft Water and Auto Bottom. Standard Mode is identified when the Mode LED flashes between red and green. Rough Water mode is identified when the Mode LED flashes red and Soft Bottom when the Mode LED flashes green. Auto Bottom Mode is only available on the Pro Model and is identified by a Mode LED that flashes slowly from green to green and then red to red.

Toggle Active Anchoring

Active Anchoring is engaged and disengaged by a single pressing and holding of the Anchor Mode button. When the Mode LED displays three short flashes and then one longer flash of green it is enabled and when the Mode LED displays three short flashes and then one longer flash of red it is disabled.

Select Anchor Operating Speed

  1. Single press the Speed/Anchor Selection button to display the current operating speed.
  2. While the speed is displayed via the Mode LED, continue to single press through the operating speed to toggle between slow, medium and fast. The Mode LED will flash red three consecutive times at the speed that corresponds with the selected speed.

Selecting a Raptor to Operate with the Remote

  1. To toggle the Raptor selected, press and hold the Speed/Anchor Selection button.
  2. When the button is pressed, one or both of the Anchor Selection LEDs will be lit. The Anchor Selection LEDs will illuminate to correspond to the anchor(s) selected. The right LED will illuminate when the Starboard anchor is selected and the left LED will illuminate when the Port anchor is selected. Both the right and left LEDs illuminate when both anchors are selected. Release the Speed/Anchor Selection button when the desired Raptor(s) is/are selected.

Range of the Remote

The range of the Raptor Shallow Water Anchor Remote is 30 feet. The range of the remote will be greatly reduced if it is used near or mounted to any metal object including aluminum or  steel. It is also recommended that the front end of the remote not be obstructed during use.
