Raptor Bracket Instructions and Dimensions

With unparalleled strength and an innovative modular design, Raptor Mounts keep your Raptor locked on your boat in any condition.

Jump to:

• 3 inch Setback
• Direct Mount Angle Offset
• Determine the Setback and Rise Dimensions for Jack Plate Adapter Brackets
• Raptor Starboard Jack Plate Bracket
• Raptor Port Jack Plate Bracket
• Sandwich Adapter
• Download Resources
  • 3 inch Setback.pdf
  • RAPTOR 3IN SETBACK BRKT.pdf
  • Direct Mount Angle Offset.pdf
  • RAPTOR DIRECT MOUNT ANGLE BRKT.pdf
  • Raptor Starboard Jack Plate Bracket.pdf
  • RAPTOR STBD 4IN JACK PLATE BRKT.pdf
  • RAPTOR STBD 6IN JACK PLATE BRKT.pdf
  • Raptor Port Jack Plate Bracket.pdf
  • RAPTOR PORT 4IN JACK PLATE BRKT.pdf
  • RAPTOR PORT 6IN JACK PLATE BRKT.pdf
  • Sandwich Adapter.pdf
  • RAPTOR UNIVERSAL SANDWICH ADPT.pdf

3 inch Setback Instructions and Dimensions

• Click here for the 3 inch Setback Instructions
  • 3 inch Setback.pdf

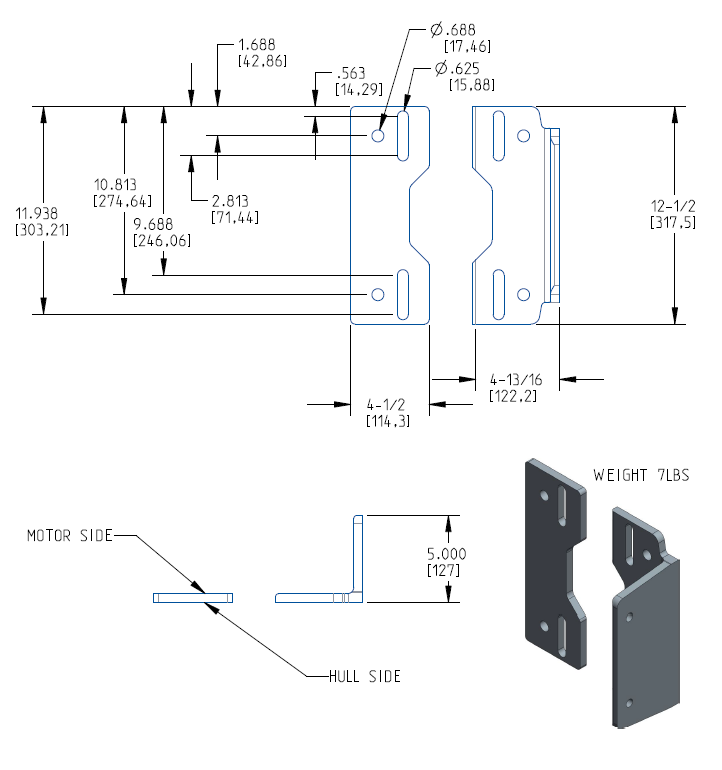

• 3 inch Setback Dimensions
  • RAPTOR 3IN SETBACK BRKT.pdf


Direct Mount Angle Offset Instructions and Dimensions

• Click here for the Direct Mount Angle Offset Instructions
  • Direct Mount Angle Offset.pdf

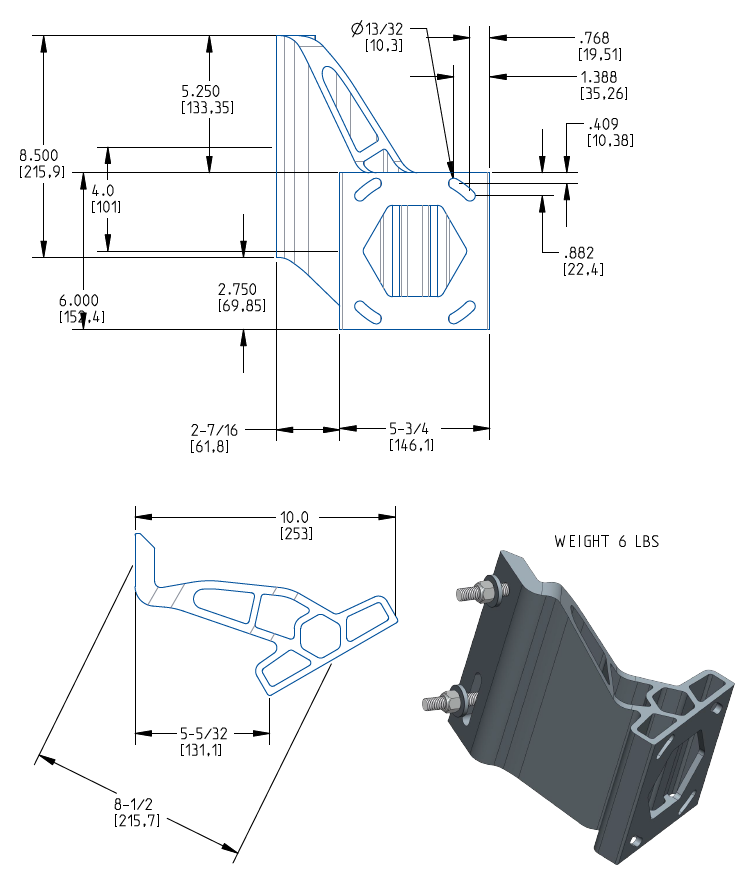

• Direct Mount Angle Offset Dimensions
  • RAPTOR DIRECT MOUNT ANGLE BRKT.pdf


Determine the Setback and Rise Dimensions for Jack Plate Adapter Brackets

Raptor jack plate adapter brackets feature single piece extruded aluminum construction with a fixed setback and rise dimension and are available in a number of different configurations.

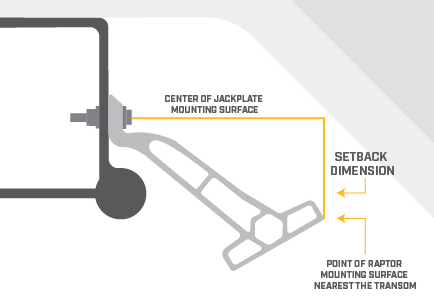

Setback
The setback dimension is the distance from the center of the jack plate mounting surface to the point of the Raptor mounting surface nearest the transom.

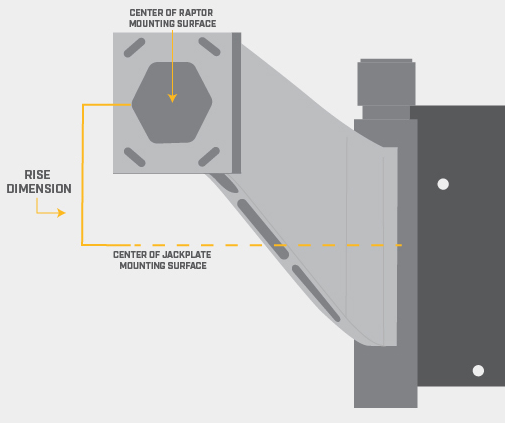

Rise
The rise dimension is the distance from the vertical center of the jack plate mounting surface to the vertical center of the Raptor mounting surface. Be sure to consider outboard engine, transom and accessory clearance when determining which bracket is right for your application.

Raptor Starboard Jack Plate Bracket Instructions and Dimensions

• Click here for the Starboard Jack Plate Bracket Instructions
  • Raptor Starboard Jack Plate Bracket.pdf

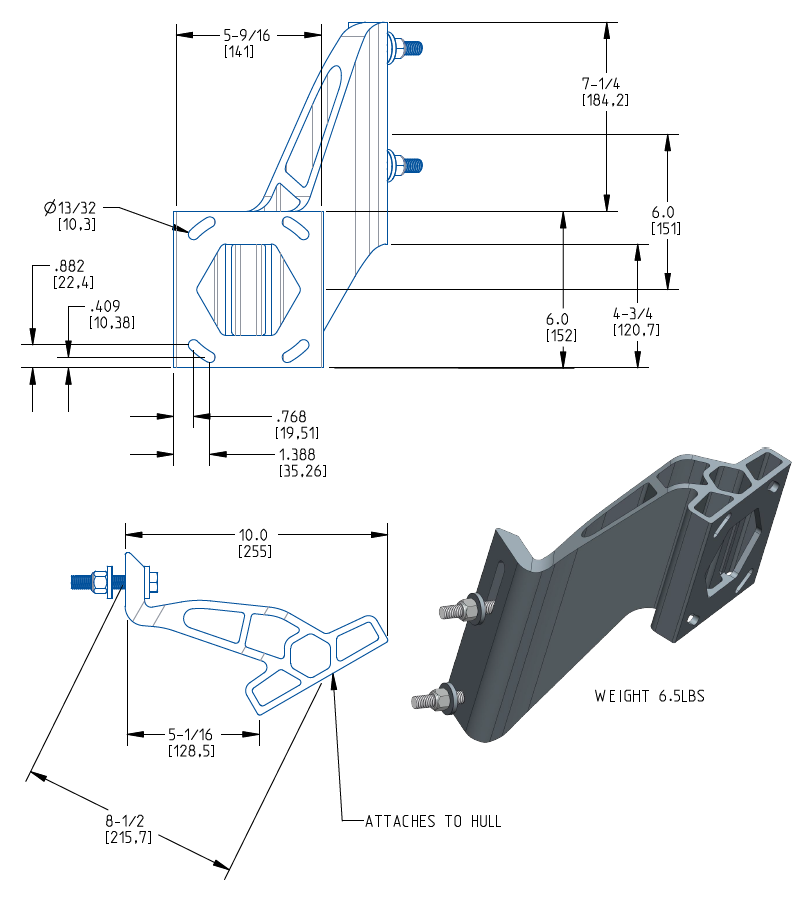

• Starboard 4 inch Dimensions
  • RAPTOR STBD 4IN JACK PLATE BRKT.pdf

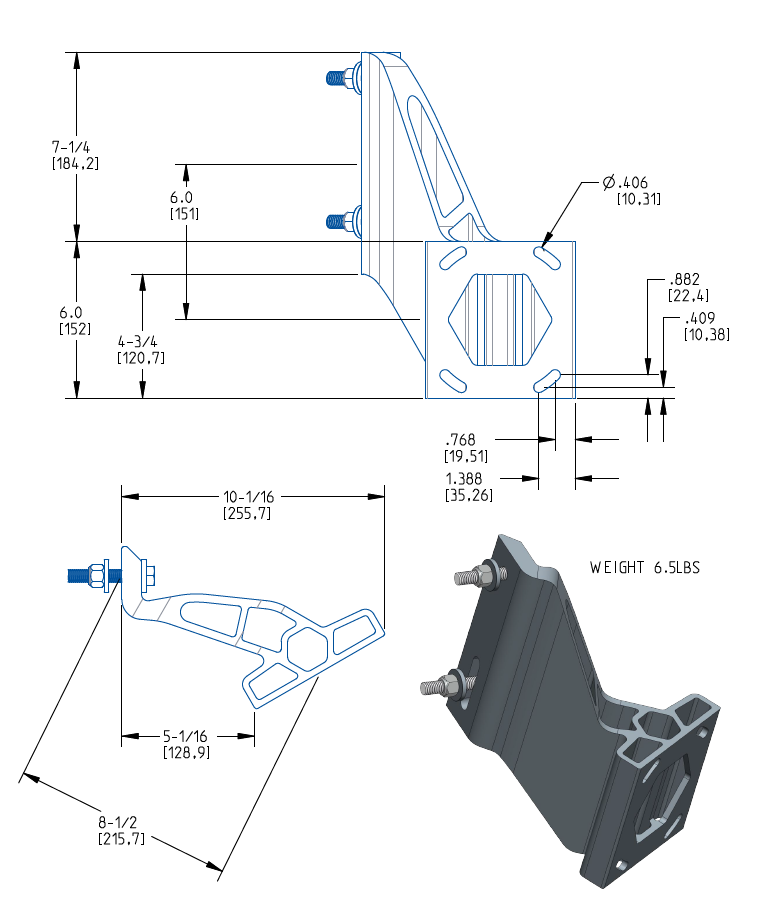

• Starboard 6 inch Dimensions
  • RAPTOR STBD 6IN JACK PLATE BRKT.pdf


Raptor Port Jack Plate Bracket Instructions and Dimensions

• Click here for the Raptor Port Jack Plate Bracket Instructions
  • Raptor Port Jack Plate Bracket.pdf

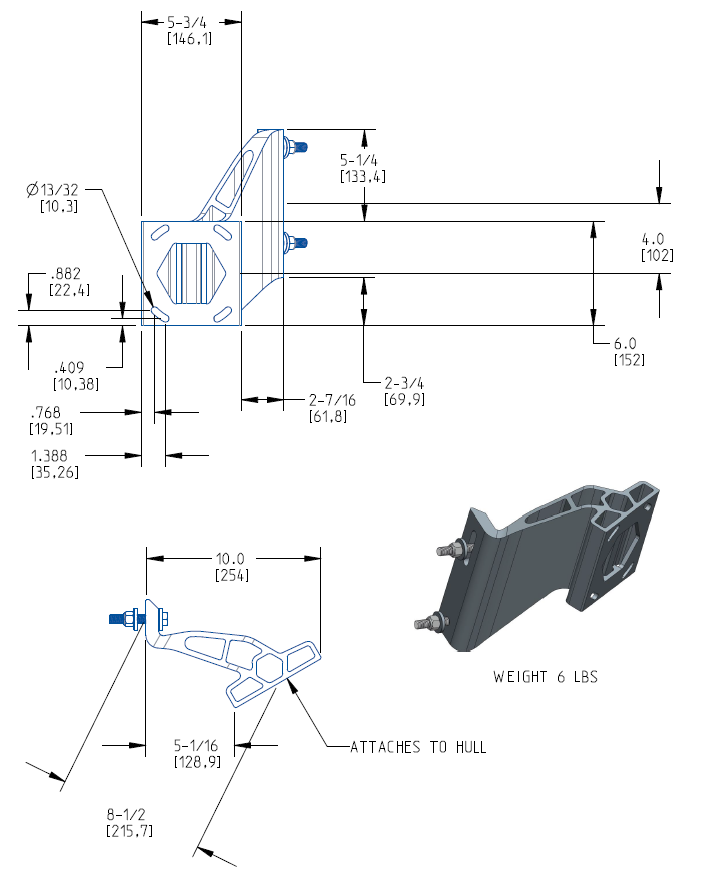

• Port 4 inch Dimensions
  • RAPTOR PORT 4IN JACK PLATE BRKT.pdf

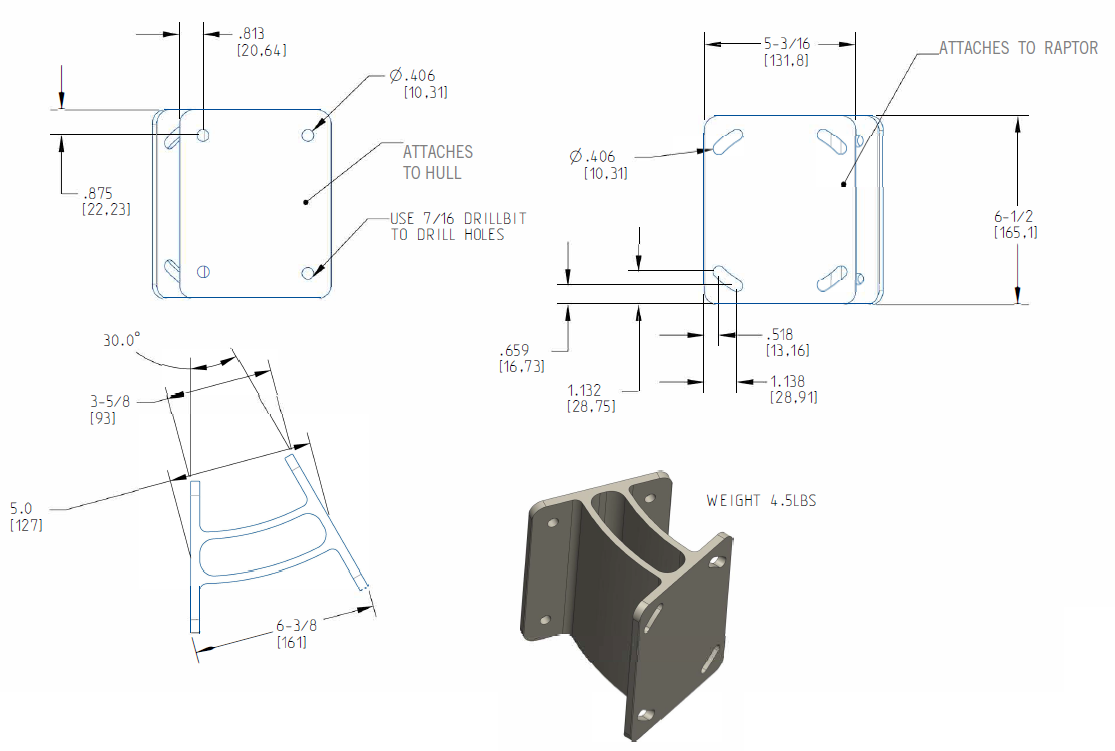

• Port 6 inch Dimensions
  • RAPTOR PORT 6IN JACK PLATE BRKT.pdf


Sandwich Adapter Instructions and Dimensions

• Click here for the Sandwich Adapter Instructions
  • Sandwich Adapter.pdf

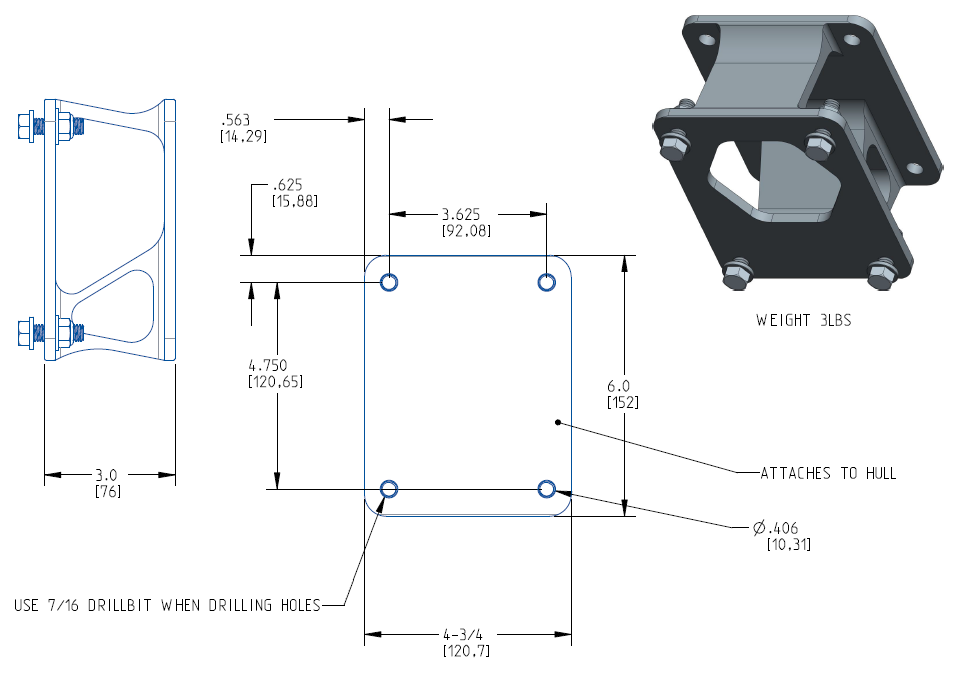

• Sandwich Adapter Dimensions

  • RAPTOR UNIVERSAL SANDWICH ADPT.pdf
