This article provides a guide to determine compatible foot pedals for Freshwater and Riptide Saltwater bow-mount trolling motors.

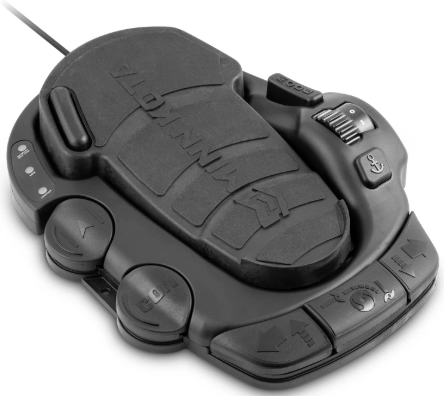

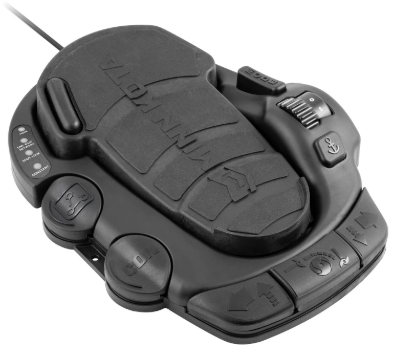

Riptide Instinct QUEST and Ulterra QUEST Foot Pedal
Click the drop-down arrow
to view compatibility with this foot pedal:
Riptide Instinct QUEST and Ulterra QUEST Foot Pedal
|
Riptide Instinct QUEST and Ulterra QUEST Foot Pedal
Riptide Instinct QUEST and Ulterra QUEST Foot Pedal Compatible with:
- Riptide Instinct QUEST
- Ulterra QUEST
Riptide Instinct QUEST and Ulterra QUEST Foot Pedal NOT Compatible with:
- Non-QUEST Ulterra (2015-Present)
- Riptide Ulterra (2015-2023)
- All Terrova QUEST and Riptide Terrova QUEST Motors (2023-Present)
- All Non-QUEST Terrova, Riptide Terrova, and Riptide ST Motors (2007-Present)
- All PowerDrive Motors (2001-Present)
- All Riptide PowerDrive Motors (2002-Present)
Riptide Instinct QUEST and Ulterra QUEST Foot Pedal Features:
- One-Boat Network programable button with LED indicator
- Low-profile, waterproof design
- Heel/toe pedal and left/right steering options
- Spot-Lock ON/OFF button with LED indicator
- Momentary/Constant ON button with LED indicator
- Rotary speed control dial
- 18' cable with waterproof connector plug
- Works in conjunction with Advanced GPS Navigation remote control and Remote Power Switch / MKA-30

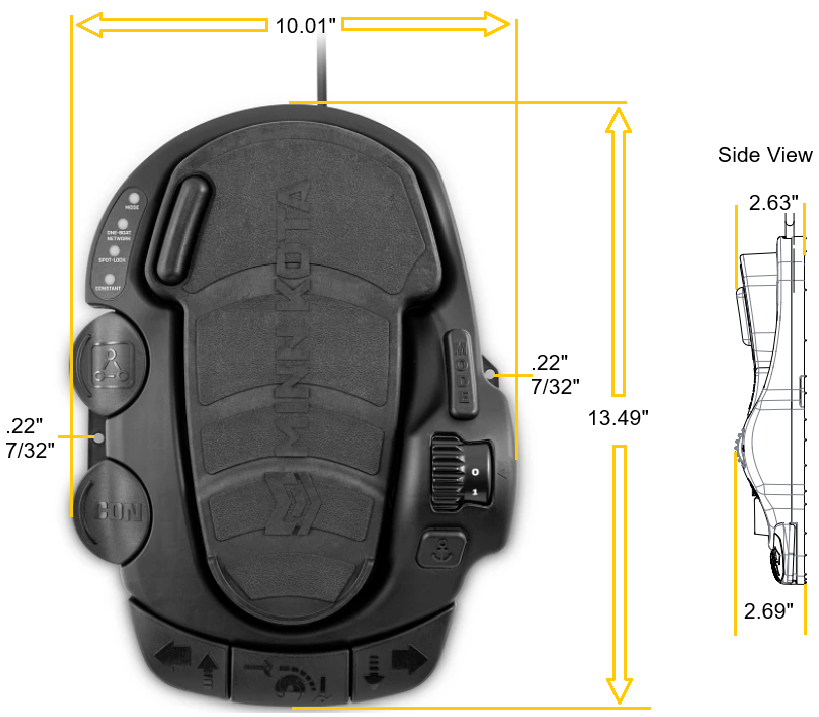

Riptide Instinct QUEST and Ulterra QUEST Foot Pedal Dimensions:
Manual
|

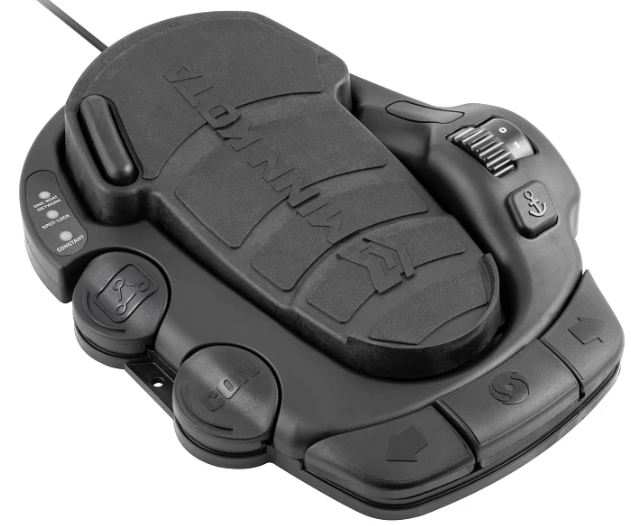

Terrova QUEST and Riptide Terrova QUEST Foot Pedal (2023-Present)
Click the drop-down arrow to view compatibility with this foot pedal:
Terrova QUEST and Riptide Terrova QUEST Foot Pedal
|
Terrova QUEST and Riptide Terrova QUEST Foot Pedal Compatible with:
- Terrova QUEST
- Riptide Terrova QUEST
Terrova QUEST and Riptide Terrova QUEST Foot Pedal NOT Compatible with:
- Non-QUEST Ulterra (2015-Present)
- Riptide Ulterra (2023-Present)
- Riptide Instinct QUEST (2023-Present)
- Ulterra QUEST (2023-Present)
- Non-QUEST Riptide Terrova and Riptide Terrova Motors (2007-Present)
- All PowerDrive Motors (2001-Present)
- All Riptide PowerDrive Motors (2002 Present)
Terrova QUEST and Riptide Terrova QUEST Foot Pedal Features:
- Spot-Lock ON/OFF button with LED indicator
- Low-profile, waterproof design
- Heel/toe pedal and left/right steering options
- One-Boat Network programmable ON/OFF button with LED indicator to stow and deploy shallow water anchors, mark a waypoint or engage autopilot
- Momentary/Constant ON button with LED indicator
- Rotary speed control dial
- 18' cable with waterproof connector plug

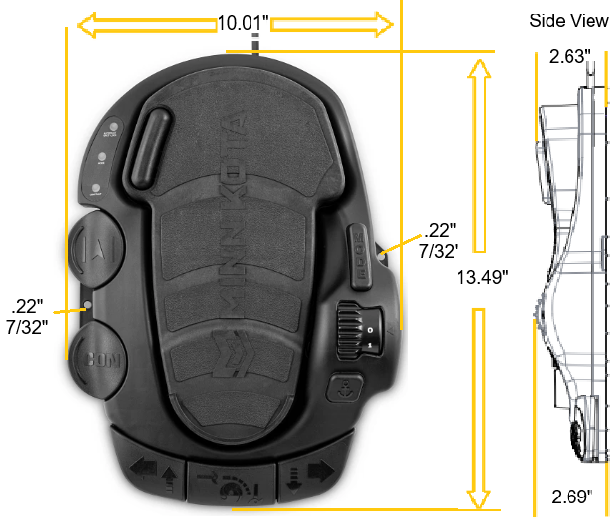

Terrova QUEST and Riptide Terrova QUEST Foot Pedal Dimensions
Manual
|
Brushed Ulterra and Riptide Ulterra
Click the drop-down arrow to view compatibility with this foot pedal:
Brushed Ulterra and Riptide Ulterra
|
Brushed Ulterra and Riptide Ulterra Compatible with:
- Brushed Ulterra
- Brushed Riptide Ulterra
Brushed Ulterra and Riptide Ulterra NOT Compatible with:
- Riptide Instinct QUEST (2023-Present)
- Ulterra QUEST (2023-Present)
- Non-QUEST Riptide Terrova and Riptide Terrova Motors (2007-Present)
- Terrova QUEST or Riptide Terrova QUEST Motors (2023-Present)
- All PowerDrive Motors (2001-Present)
- All Riptide PowerDrive Motors (2002-Present)

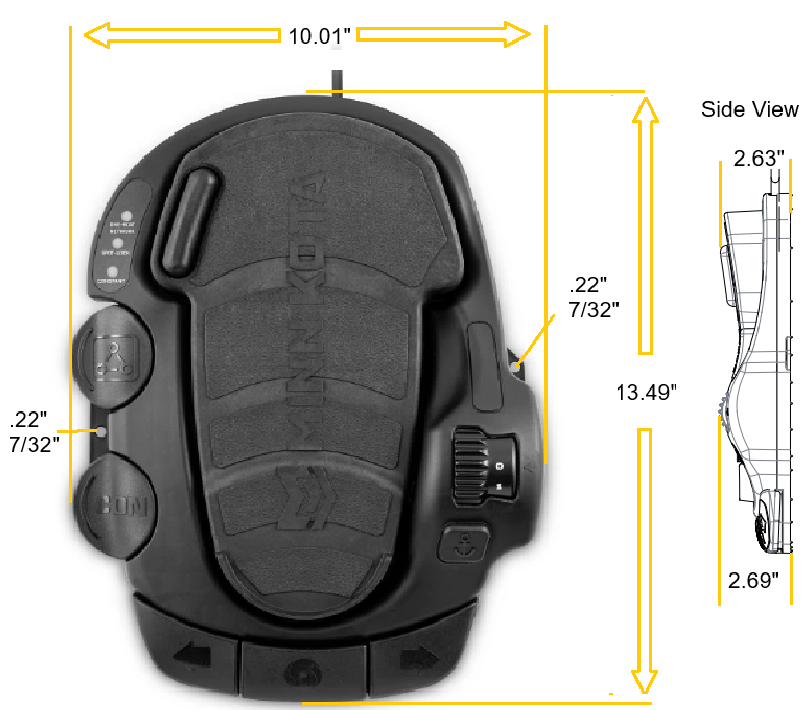

Brushed Ulterra and Riptide Ulterra Dimensions:
Brushed Ulterra and Riptide Ulterra Features:
- Spot-Lock ON/OFF button with LED indicator
- Low-profile, waterproof design
- Heel/toe pedal and left/right steering options
- AutoPilot ON/OFF button with LED indicator
- Momentary/Constant ON button with LED indicator
- Rotary speed control dial
- 18' cable with waterproof connector plug
- Works in conjunction with i-Pilot and i-Pilot Link and new GPS navigation systems
Manual
|
Brushed Terrova and Riptide Terrova Foot Pedal
Click the drop-down arrow to view compatibility with this foot pedal:
Brushed Terrova and Riptide Terrova Foot Pedal
|
Brushed Terrova and Riptide Terrova Foot Pedal Compatible with:
- Riptide Terrova BT
- Brushed Riptide Terrova w/ Advanced GPS
- Terrova BT
- Brushed Terrova w/ Advanced GPS
Brushed Terrova and Riptide Terrova Foot Pedal NOT Compatible with:
- Riptide Instinct QUEST (2023-Present)
- Ulterra QUEST (2023-Present)
- Non-QUEST Ulterra (2015-2023)
- Riptide Ulterra (2015-2023)
- Terrova QUEST or Riptide Terrova QUEST Motors (2023-Present)
- Terrova, Riptide Terrova Riptide ST (2007-2016)
- All PowerDrive Motors (2001-Present)
- All Riptide PowerDrive Motors (2002-Present)
Brushed Terrova and Riptide Terrova Foot Pedal Features:
- Spot-Lock ON/OFF button with LED indicator
- Low-profile, waterproof design
- Heel/toe pedal and left/right steering options
- AutoPilot ON/OFF button with LED indicator
- Momentary/Constant ON button with LED indicator
- 18' cable with waterproof connector plug
- Plug-n-play with Terrova or Riptide Terrova motors, and works in conjunction with CoPilot, i-Pilot and i
- Pilot Link and new GPS navigation systems
Manual
|

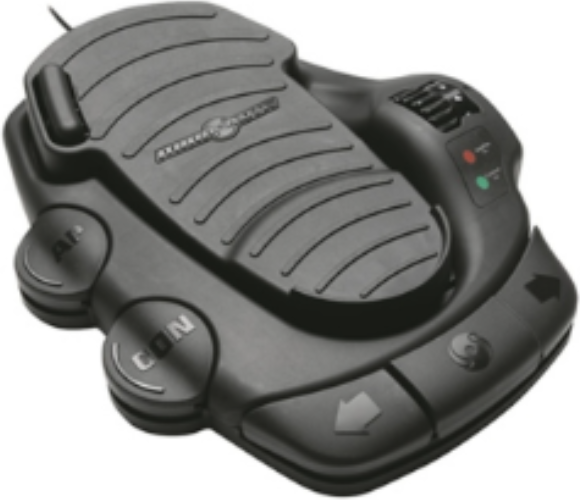

Legacy Terrova, Riptide Terrova, Riptide ST Non-Bluetooth Foot Pedal
Click the drop-down arrow to view compatibility with this foot pedal:
Legacy Terrova, Riptide Terrova, Riptide ST Non-Bluetooth Foot Pedal
|
Legacy Terrova, Riptide Terrova, Riptide ST Non-Bluetooth Foot Pedal
- Item #1866075 (No longer manufactured, however you can use item number to the find remote through other sources.
- Part #2774720 (No longer manufactured, however you can use item number to the find remote through other sources.
Legacy Terrova, Riptide Terrova, Riptide ST Non-Bluetooth Foot Pedal compatible with:
- Legacy Terrova non-Bluetooth
- Riptide Terrova non-Bluetooth
- Riptide ST non-Bluetooth
Legacy Terrova, Riptide Terrova, Riptide ST Non-Bluetooth Foot Pedal NOT compatible with:
- Riptide Instinct QUEST (2023-Present)
- Ulterra QUEST (2023-Present)
- Non-QUEST Ulterra (2015-2023)
- Riptide Ulterra (2015-2023)
- Terrova QUEST or Riptide Terrova QUEST Motors (2023-Present)
- Terrova BT and Riptide Terrova BT (2017-2023)
- All PowerDrive Motors (2001-Present)
- All Riptide PowerDrive Motors (2002-Present)
Legacy Terrova, Riptide Terrova, Riptide ST Non-Bluetooth Foot Pedal Features
-
Note: This generation of foot pedal does not contain a Spot-Lock Anchor Button, Spot-Lock need to be activated from i-Pilot or i-Pilot Link remote.
- Low-profile design
- Heel/toe pedal or left/right steering buttons
- Includes rotary speed control dial
- Momentary/constant on toggle
- AutoPilot on/off toggle
- 18' cable with waterproof connector plug
i-Pilot BT Remote Manual
|

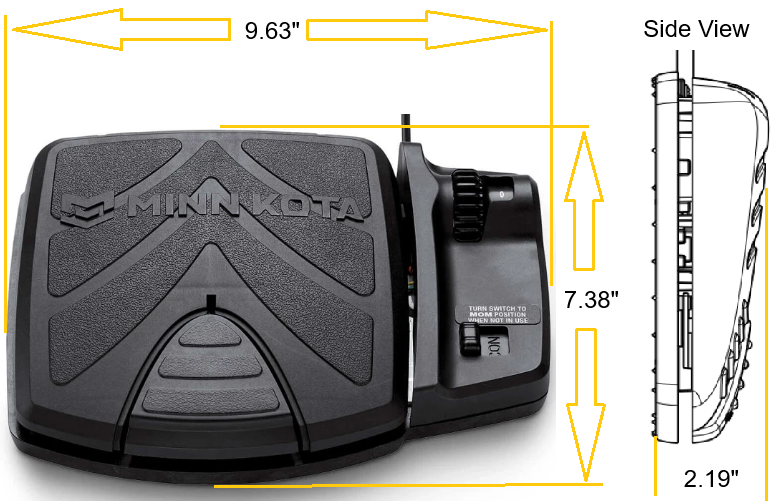

PowerDrive, PowerDrive V2, Riptide PowerDrive and Riptide SP Foot Pedal
Click the drop-down arrow to view compatibility with this foot pedal:
PowerDrive, PowerDrive V2, Riptide PowerDrive and Riptide SP Foot Pedal
|
PowerDrive, PowerDrive V2, Riptide PowerDrive and Riptide SP Foot Pedal
PowerDrive, PowerDrive V2, Riptide PowerDrive and Riptide SP Foot Pedal compatible with:
- PowerDrive
- PowerDrive V2
- Riptide PowerDrive
- Riptide SP
-
Note: PowerDrive motors equipped with Advanced GPS Navigation, i-Pilot, or i-Pilot Link are not compatible with foot pedal operation.
PowerDrive, PowerDrive V2, Riptide PowerDrive and Riptide SP Foot Pedal NOT compatible with:
- PowerDrive, Riptide PowerDrive, and Riptide SP w/Flat Plug (2006-Older)
- PowerDrive Equipped with i-Pilot, i-Pilot Link, or Advanced GPS Navigation
- Riptide Instinct QUEST (2023-Present)
- Ulterra QUEST (2023-Present)
- Non-QUEST Ulterra (2015-2023)
- Riptide Ulterra (2015-2023)
- Terrova QUEST or Riptide Terrova QUEST Motors (2023-Present)
- Terrova, Riptide Terrova Riptide ST (2007-2016)
PowerDrive, PowerDrive V2, Riptide PowerDrive and Riptide SP Foot Pedal Features:
- Side-to-side steering control
- Momentary/constant ON switch
- Speed control knob for precise adjustments
- Includes 18' cord with waterproof connector
Manual
|

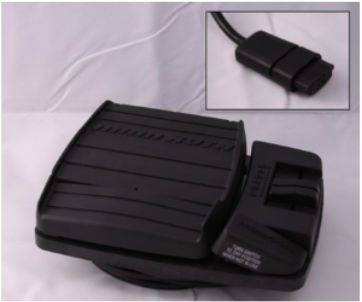

PowerDrive, Riptide PowerDrive, Riptide SP Foot Pedal w/Flat Plug (2006-Older)
Click the drop-down arrow to view compatibility with this foot pedal:
PowerDrive, Riptide PowerDrive, Riptide SP Foot Pedal w/Flat Plug (2006-Older)
|
PowerDrive, Riptide PowerDrive, Riptide SP Foot Pedal w/Flat Plug (2006-Older)
- Part #2774700 (No longer manufactured, however you can use item number to the find remote through other sources.
PowerDrive, Riptide PowerDrive, Riptide SP Foot Pedal w/Flat Plug (2006-Older) compatible with:
- PowerDrive 2006 and Older
- Riptide PowerDrive 2006 and Older
- Riptide SP 2006 and Older
PowerDrive, Riptide PowerDrive, Riptide SP Foot Pedal w/Flat Plug (2006-Older) NOT compatible with:
- Riptide Instinct QUEST (2023-Present)
- Ulterra QUEST (2023-Present)
- Non-QUEST Ulterra (2015-2023)
- Riptide Ulterra (2015-2023)
- Terrova QUEST or Riptide Terrova QUEST Motors (2023-Present)
- Terrova BT and Riptide Terrova BT (2017-2023)
- PowerDrive Motors (2007-Present)
- Riptide PowerDrive Motors (2007-Present)
|
