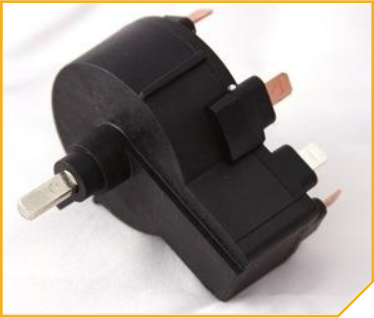

5 Speed Switch Installation (all 5 Speed motors 1998-present)

5-speed_switch_hand_control.png 5-speed_switch_foot_control.png

Tools Needed

  • #2 Phillips screwdriver
  • needle nose pliers

Part Numbers

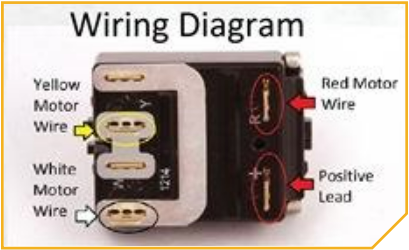

Switch Wiring

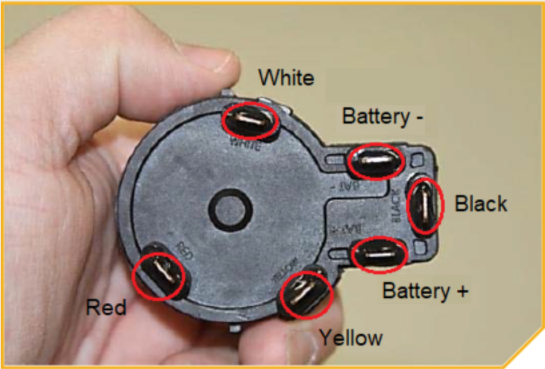

Install the power leads and motor wires on their proper terminals on the switch. The terminal locations on the switch are labeled. To install the switch, attach the wires to the labeled terminals.
