Using the Edge and Riptide Edge (SE) (2006-present)

Don't let the size fool you. Edge's compact mount is built with extruded, anodized aluminum for rugged, no-nonsense strength. Add a rock-solid Latch & Door mount and an impact resistant composite head, and you have a motor that's perfect for smaller boats and big days on the water.

Jump to:

Installation Considerations

When installing your Minn Kota Trolling Motor, we recommend following the instructions in the Installation Guide. We also recommend a 50 amp or 60 amp circuit breaker. You may also want to consider using a Trolling Motor Plug as it will allow you to easily disconnect your motor from power when not in use or when charging the trolling motor batteries.

  • It is recommended that the motor be mounted as close to the centerline of the boat as possible.
  • Make sure the area under the mounting location is clear to drill holes and install nuts and washers.
  • Make sure the motor rest is positioned far enough beyond the edge of the boat.
  • The motor must not encounter any obstructions as it is lowered into the water or raised into the boat when stowed and deployed.
  • When installing your Minn Kota Trolling Motor, we recommend following the instructions in the Installation Guide.
  • We recommend using a circuit breaker.
  • Consider a quick release or adapter bracket with the installation of your motor. The button below will walk you through selecting the best Quick Release Bracket for your boat and motor.
  • You may also want to consider using a Trolling Motor Plug as it will allow you to easily disconnect your motor from power when not in use or when charging the trolling motor batteries.
    Click here for MKR-28 Trolling Motor Plug purchase options.

Edge Mount Features (Foot-Controlled)

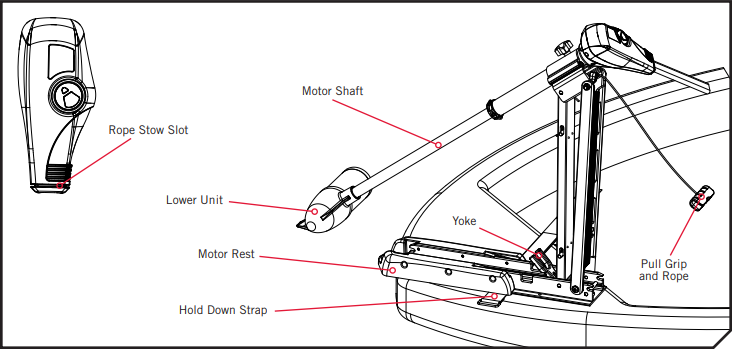

Edge Mount features FP.png

  • The motor Mount is designed to fold back and lock the motor flat on the deck when not in use and to provide secure stowage for transport.
  • The Pull Grip and Rope releases the lock bar, which automatically engages when the unit is lowered or raised into position. The Pull Grip and Rope should be used to both lower and raise the unit.
  • The Motor Rest positions the Lower Unit as it comes in contact with the nose of the mount and guides it onto the Motor Rest.
  • The Tube Lock captures the Motor Shaft and keeps the Lower Unit centered on the Motor Rest.
  • The Hold Down Strap must be used to place pressure on the motor shaft to hold the lower unit tightly against the Motor Rest when stowed.
  • The Pull Grip and Rope can be stored by placing the Pull Grip into the Rope Stow Slot on the control box of the motor.

Warning-The Edge is not intended to be a primary.png

Warning- Be alert for unexpected boat.png

Warning- The Prop may turn on unexpectedly.png

Edge Mount Features (Hand-Controlled)

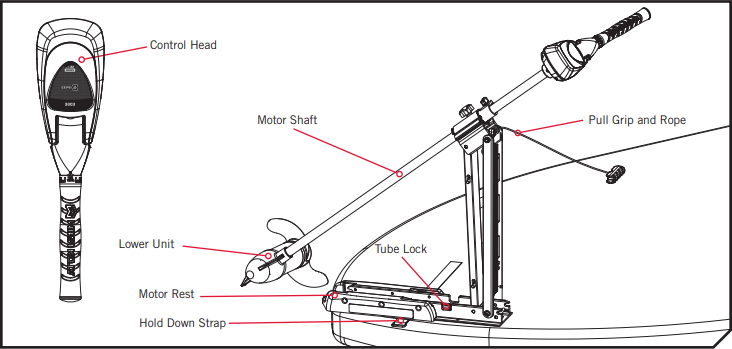

Edge Mount features HC.png

  • The Motor Mount is designed to fold back and lock the motor flat on the deck when not in use and to provide secure stowage for transport.
  • The Pull Grip and Rope releases the Lock Bar, which automatically engages when the unit is lowered or raised into position. The Pull Grip and Rope should be used to both lower and raise the unit.
  • The Motor Rest positions the lower unit as it comes in contact with the nose of the Mount and guides it onto the Motor Rest.
  • The Tube Lock captures the Motor Shaft and keeps the lower unit centered on the Motor Rest.
  • The Hold Down Strap must be used to place pressure on the Motor Shaft to hold the Lower Unit tightly against the Motor Rest when stowed.
  • The Pull Grip and Rope can be stored by placing the pull grip on top of the Tube Lock.

Warning-The Edge is not intended to be a primary.png

Warning- The Prop may turn on unexpectedly.pngWarning- Be alert for unexpected boat.png

Stow and Deploy the Edge (Foot-Controlled)

Warning- when stowing or deploying.png
Warning-Moving the motor creates a.png
Warning-When the motor is being transported.png

  • Deploy the Motor
    simply pull back and lift the motor off of the mount with the Pull Grip and Rope. Lower the motor into the water using the Pull Grip and Rope. The motor will lock into the deployed position automatically.
  • Stow the Motor
    pull back and lift the motor out of the water with the Pull Grip and Rope. Lower the motor Lower Unit onto the Motor Rest using the Pull Grip and Rope. The motor will lock into the stowed position automatically. Wrap the Hold Down Strap over top of the Motor Shaft to secure the motor.

Edge stow deploy FP.png

Stow and Deploy the Edge (Hand-Controlled)

Warning- when stowing or deploying.png
Warning-Moving the motor creates a.png
Warning-When the motor is being transported.png

  • Deploy the Motor
    Simply pull back and lift the Motor off of the mount with the Pull Grip and Rope. Lower the Motor into the water using the Pull Grip and Rope. The Motor will lock into the deployed position automatically.
  • Stow the Motor
    Pull back and lift the Motor out of the water with the Pull Grip and Rope. Lower the motor Lower Unit onto the Motor Rest using the Pull Grip and Rope. The Motor will lock into the stowed position automatically. Wrap the Hold Down Strap over top of the Motor Shaft to secure the Motor.

Edge stow deploy HC.png

Adjust the Depth of the Motor (Foot-Controlled)

When setting the depth, be sure the top of the motor is submerged at least 12” to avoid churning or agitation of surface water. The propeller must be completely submerged.
NOTICE- Be sure the top of the motor.png
Warning- The motor head will create.png

  1. With the motor deployed, firmly grasp the Outer Shaft or Control Head and hold it steady.
  2. Loosen the Depth Adjustment Knob until the Shaft slides freely.
  3. Raise or lower the motor to the desired depth.
  4. Turn the motor Control Head to the desired position.
  5. Tighten the Depth Adjustment Knob to secure the motor in place.

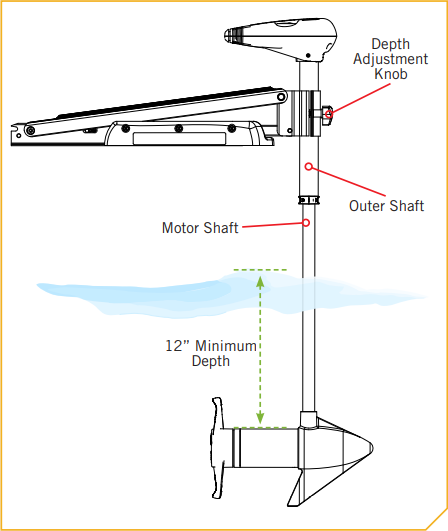

Edge adjust depth fp.png

Adjust the Depth of the Motor (Hand-Controlled)

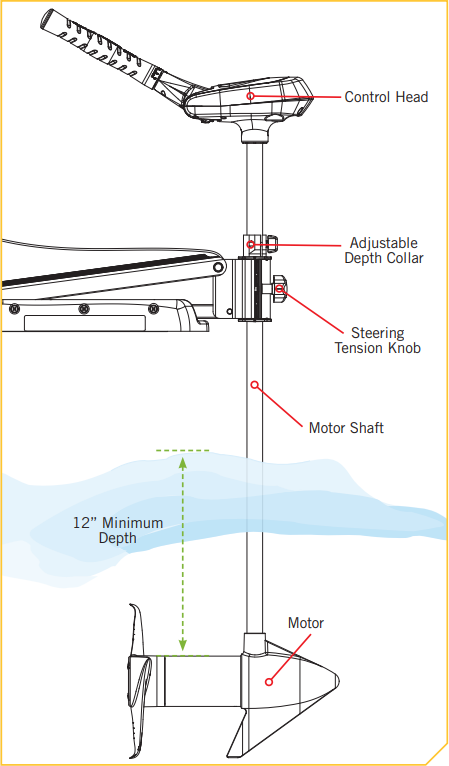

When setting the depth be sure the top of the Motor is submerged at least 12” to avoid churning or agitation of surface water. The propeller must be completely submerged.
NOTICE- Be sure the top of the motor.png
Warning- The motor head will create.png

  1. With the Motor deployed, firmly grasp the Shaft or Control Head and hold it steady.
  2. Loosen the Adjustable Depth Collar and Steering Tension Knob until the Shaft slides freely.
  3. Raise or lower the Motor to the desired depth.
  4. Turn the Control Head to the desired position.
  5. Tighten the Depth Adjustment Collar and Steering Tension Knob to secure the Motor in place.

Edge adjust depth hc.png

Adjust the Steering Cable (Foot-Controlled)

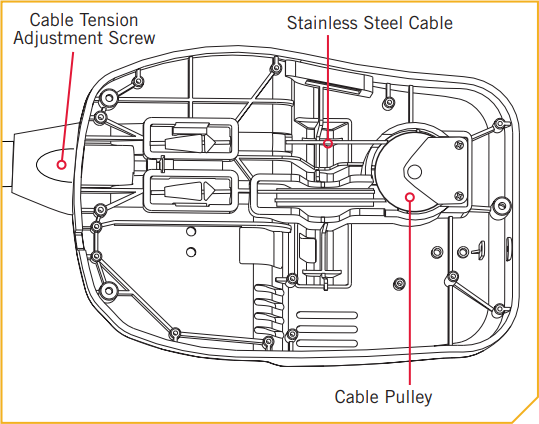

Adjust steering FC.png

  1. Adjust the tension of the cables by turning the cable tension adjustment screw (Phillips pan-head screw) located near the bottom of the foot pedal, just under the steering cable cover.
  2. Turn the screw clockwise to increase tension and counter-clockwise to decrease tension.

Caution- if the cables become too loose.png

Adjust the Tilt/Extend Tiller

Your trolling motor features 7 usable handle tilt positions: 45°, 30°, and 15° up and down from the 0° (horizontal) position. To use the down positions, you must first press the release button located on the left underside of the pivot handle. Your trolling motor handle also features a unique stow position, that is useful for limiting the amount of space required for storage or travel.

Warning- The Edge is not intended to be.png
Warning- The position of the Tilt.png
Caution- Before attempting to put.png

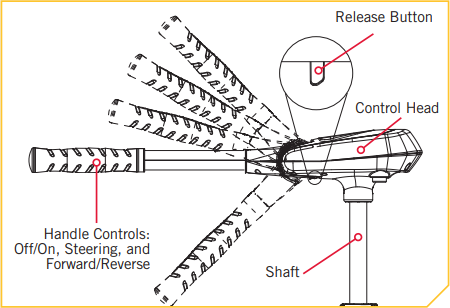

  1. Place the Tiller handle in the Off/Stow position, then press the Release Button located on the left underside of the pivot handle. Push the handle down until you feel the handle “lock in” to the stowed position. This will be almost parallel to the motor Shaft.
  2. To extend the handle, pull the handle towards you to the desired position. The handle will extend a full 6 inches. To retract, push the handle in until it meets the face of the motor Control Head.

Edge adjust tiller.png

Control Speed and Direction with the Foot Pedal

Most controls on the Foot Pedal are easy to operate by either foot or hand.

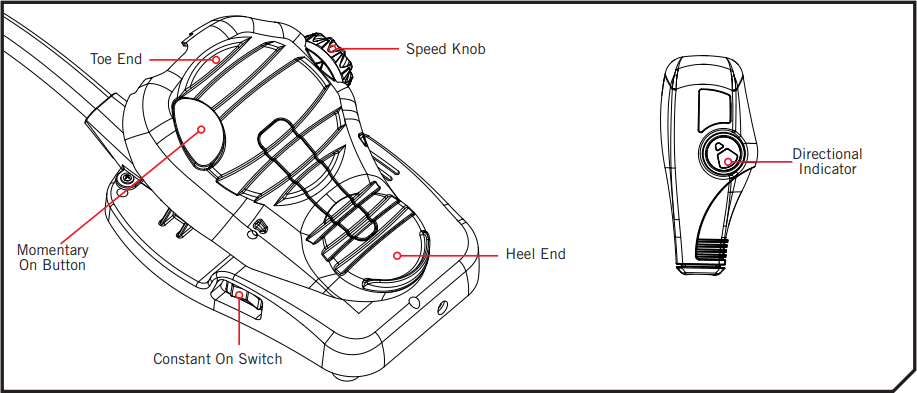

Edge FP.png

  • Adjust Motor Speed
    Turn the speed knob clockwise to increase speed and counter-clockwise to decrease speed.
  • Momentary Mode
    The default mode of operation for the foot pedal is Momentary. In this mode, the motor will only run while downward force is applied to the Momentary On button on the top of the foot pedal. A toe touch to the Momentary button on the top of the foot pedal will turn the propeller on in this mode. Removing downward force on the Momentary button will turn the propeller off.
  • Constant Mode
    To switch to Constant Mode, flip the side-mounted Constant On switch until the propeller starts. In Constant Mode, the propeller will continually run, regardless of whether force is being applied to the Momentary On button on the top of the foot pedal.
  • Turn Left or Right
    Push the toe end of the foot pedal down to turn right and push the heel end of the foot pedal down to turn left. The indicator on the motor head shows the direction of the motor. The motor will not maintain its own heading. You must keep your foot on the pedal to control steering during operation.
  • Reverse the Motor
    The motor always travels in the direction of the indicator. You can reverse the direction of the motor by turning the motor 180° from straight ahead.

Caution- Make sure that the Constant.png
NOTICE- Remember to turn.png

Control Speed and Steering with the Tiller

Tiller speed steer.png

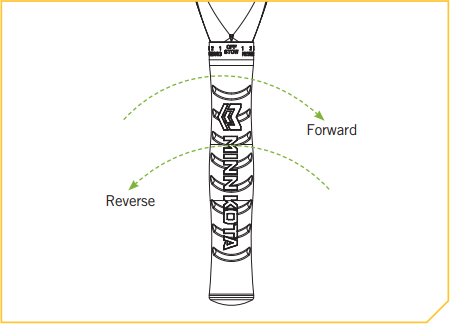

This motor offers 5 forward and 3 reverse speeds. The speed control may be operated in either direction, forward or reverse. Turn the tiller handle counterclockwise from (OFF) to increase reverse speed and clockwise from (OFF) to increase forward speed. Speed decreases as you approach (OFF) from either direction.Warning- When the Motor is not in use.png

Warning- The Edge is not intended to be.png
Warning- Be alert for unexpected boat.png

Edge Serial Number Location (Foot-Controlled)

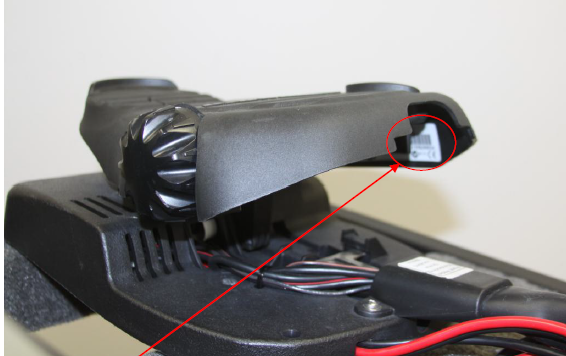

  • The serial number on Fortrex, Maxxum and Edge foot controlled models is located on the inside edge of the foot pedal under the momentary switch.

Foot Pedal Serial Number Location.pdf
Foot Pedal Serial Number Location.png

Edge Serial Number Location (Hand-Controlled)

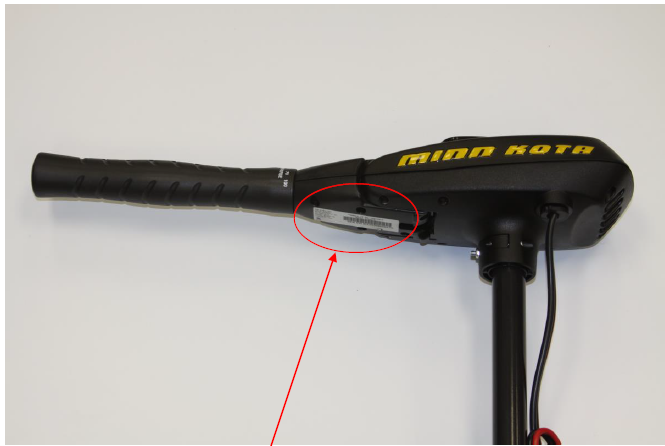

  • On the hand-controlled models, the serial number is located on the under side of the pivot handle.

Hand Control Serial Number Location.pdf
Hand Control Serial Number Location.png

Edge Mount Dimensions

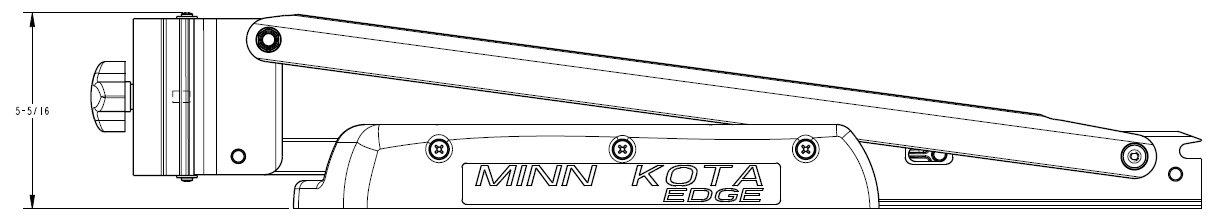

Edge Mount 1.png

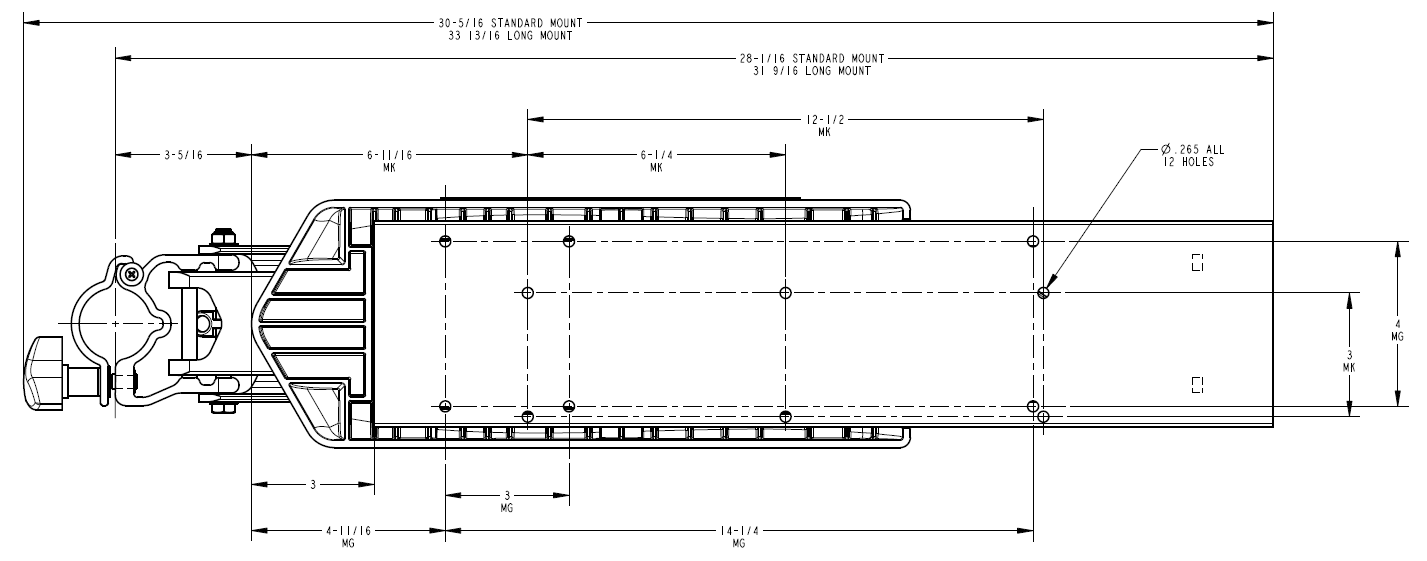

Edge Mount 2.png
Edge Mount 3.png

Edge Pontoon Bracket Dimensions

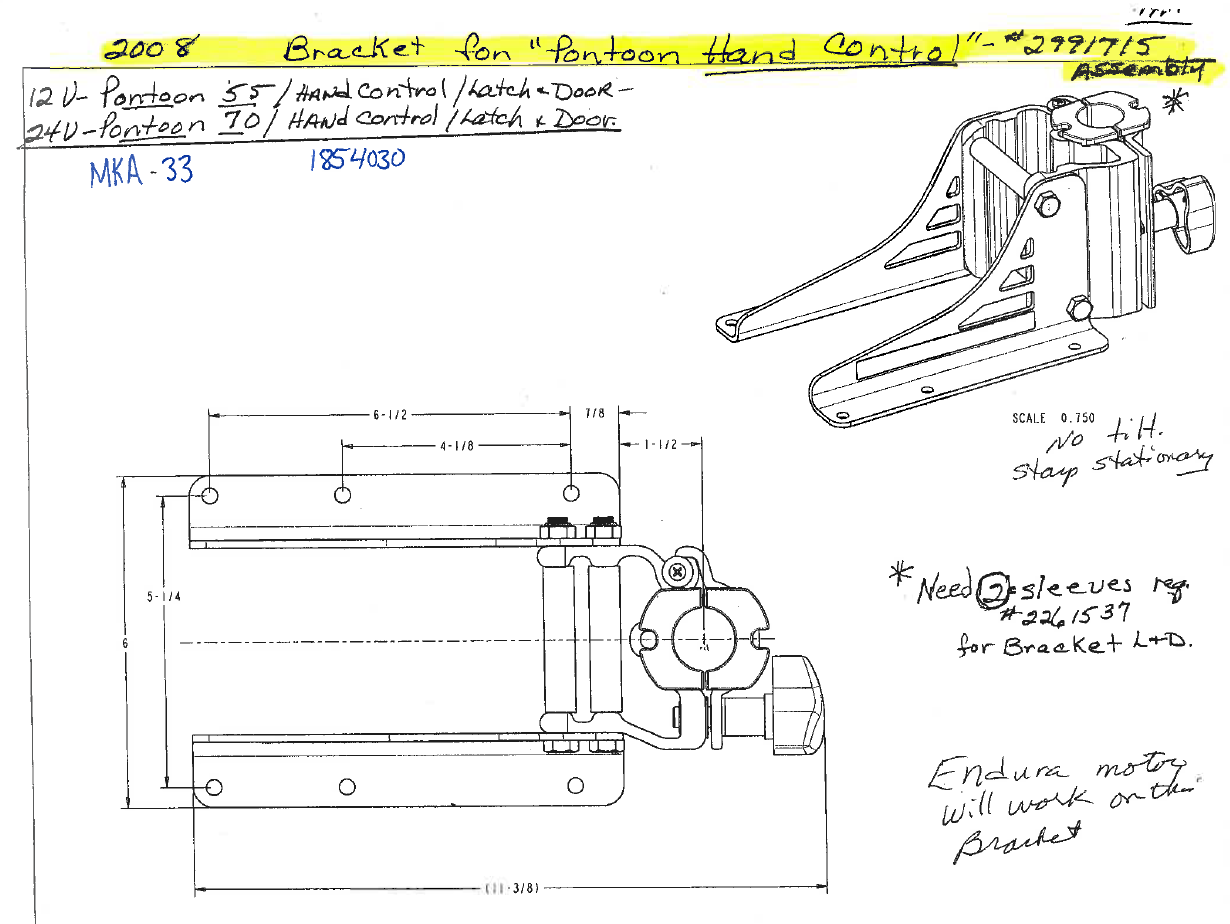

Pontoon bracket dimensions.png

Edge Foot Pedal Dimensions

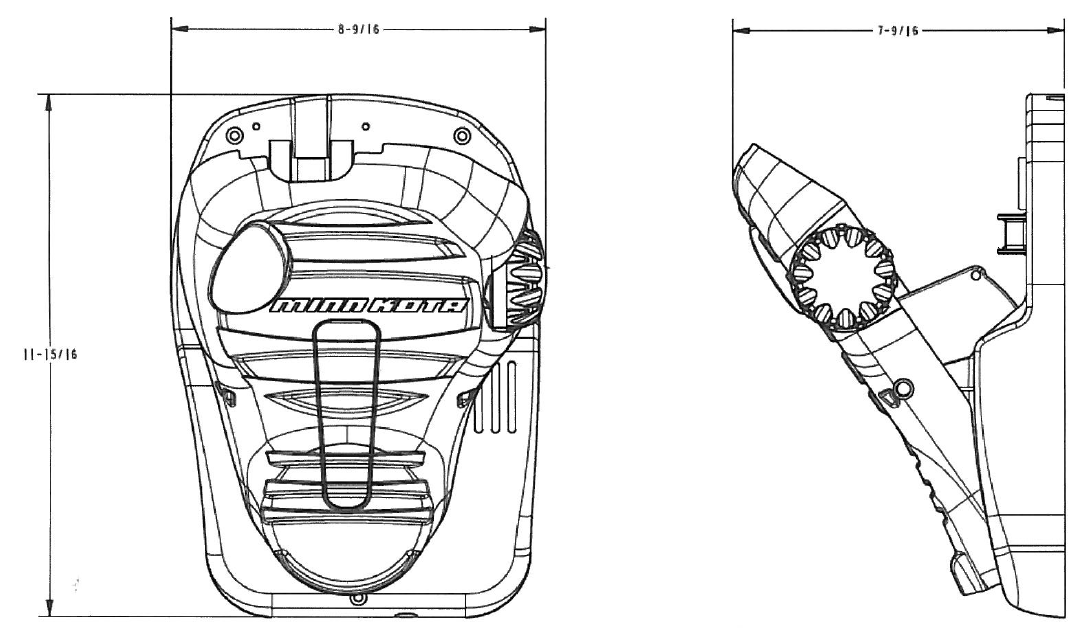

Edge Foot Pedal.png
